Power Source Circuit

POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION
This circuit provides power to operate the windshield wiper relay assy.

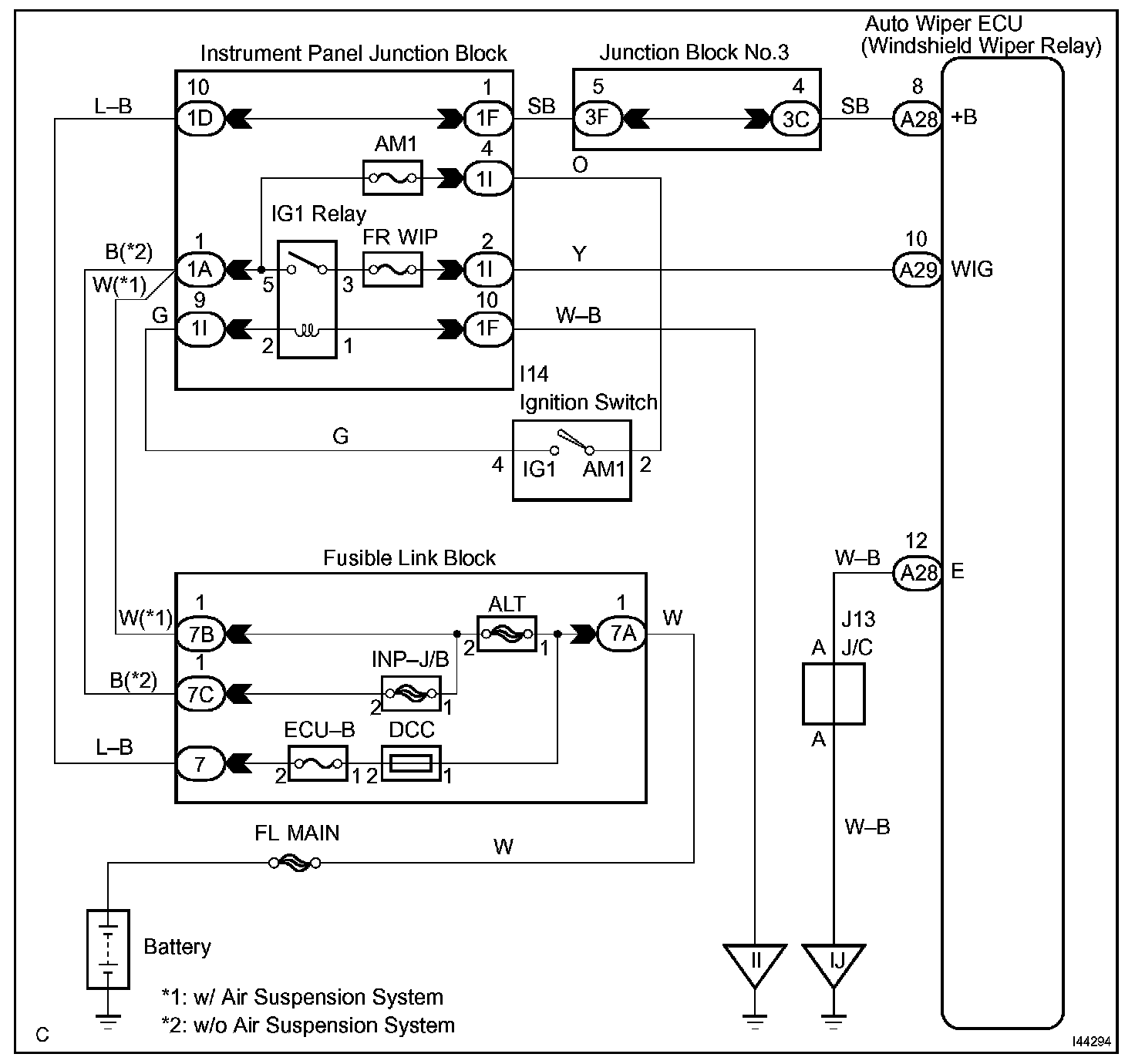

Wiring Diagram:

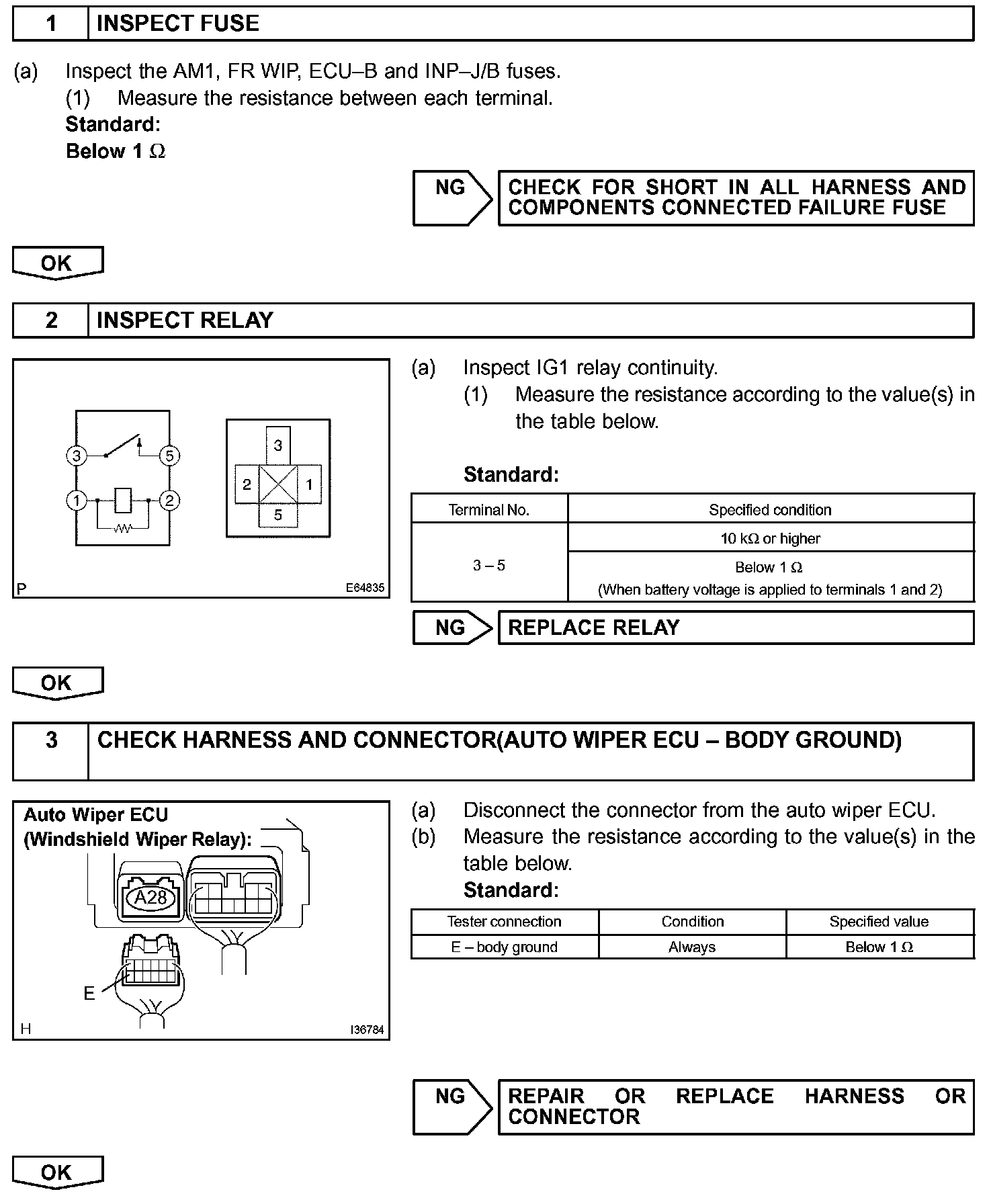

Step 1 - 3:

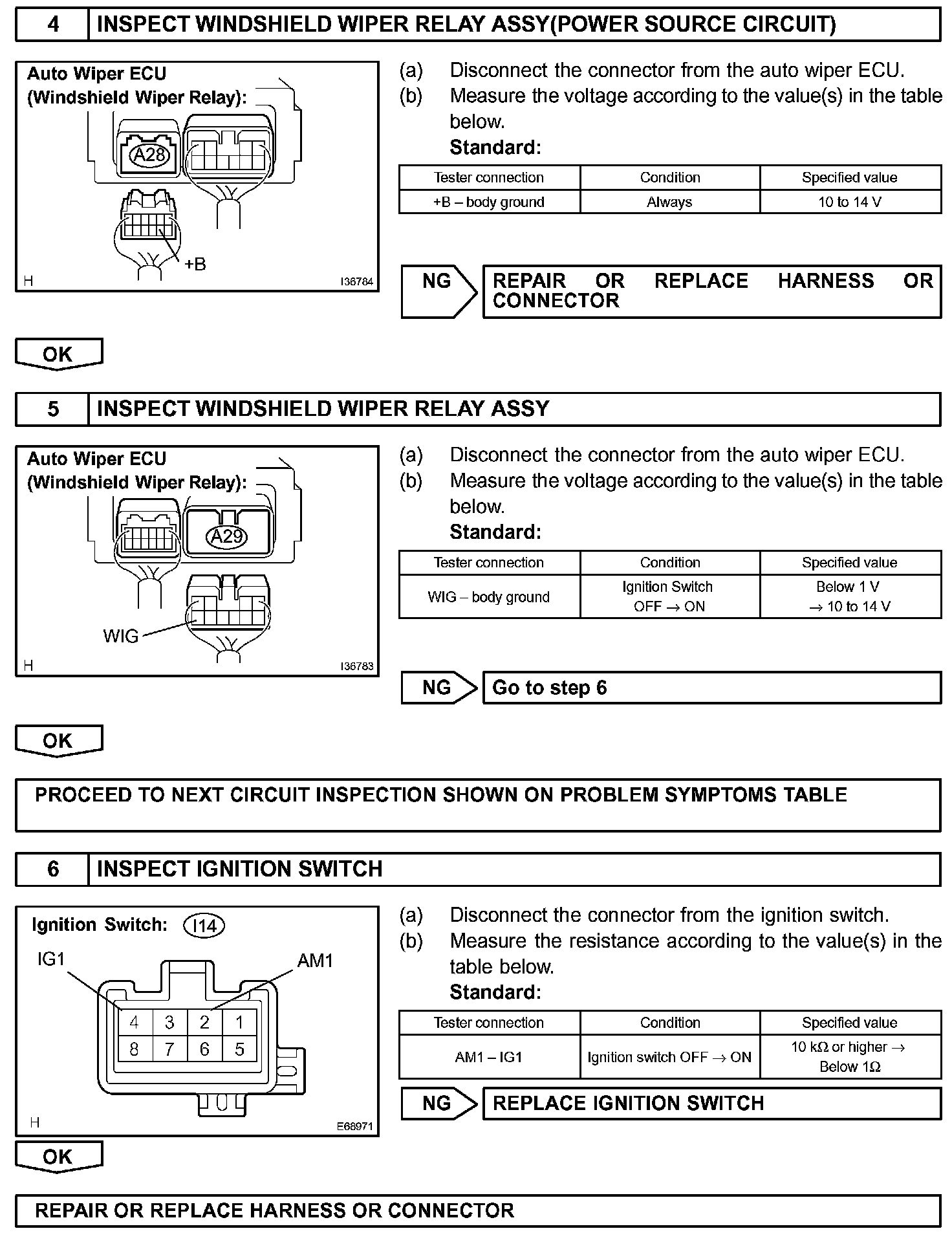

Step 4 - 6:

INSPECTION PROCEDURE
