C1336

DTC C1336 ZERO POINT CALIBRATION OF DECELERATION SENSOR UNDONE

CIRCUIT DESCRIPTION

DTC Detecting Condition:

Brake actuator receives signals from the yaw rate sensor via CAN communication system. Yaw rate sensor has the built-in G sensor.

If there is trouble in the bus lines between yaw rate sensor and CAN communication system, the DTC codes U0123/62 (yaw rate sensor communication trouble) and U0124/95 (G sensor communication trouble) are output.

Wiring Diagram:

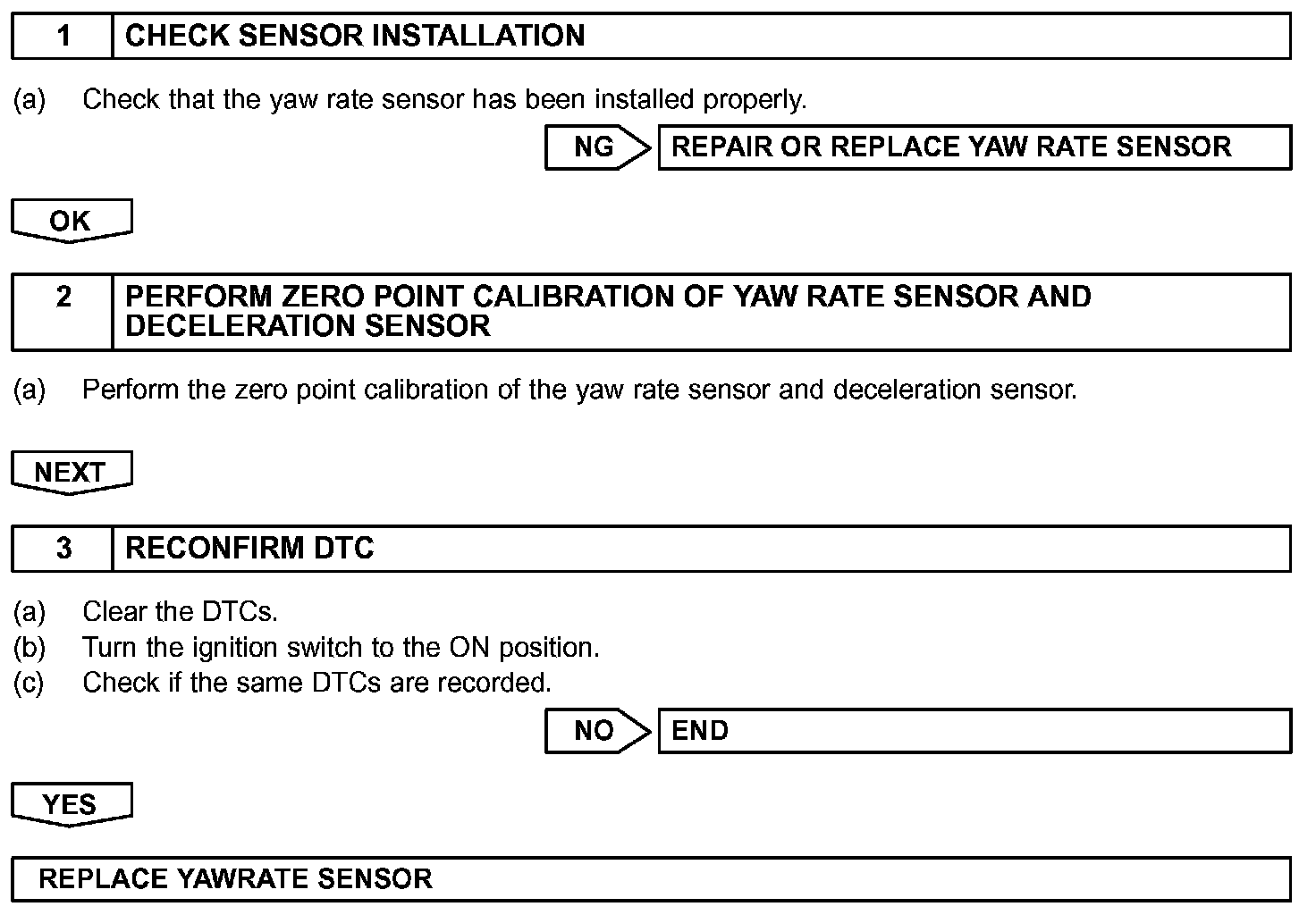

Step 1 - 3:

INSPECTION PROCEDURE
