Dynamic Laser Cruise Control System

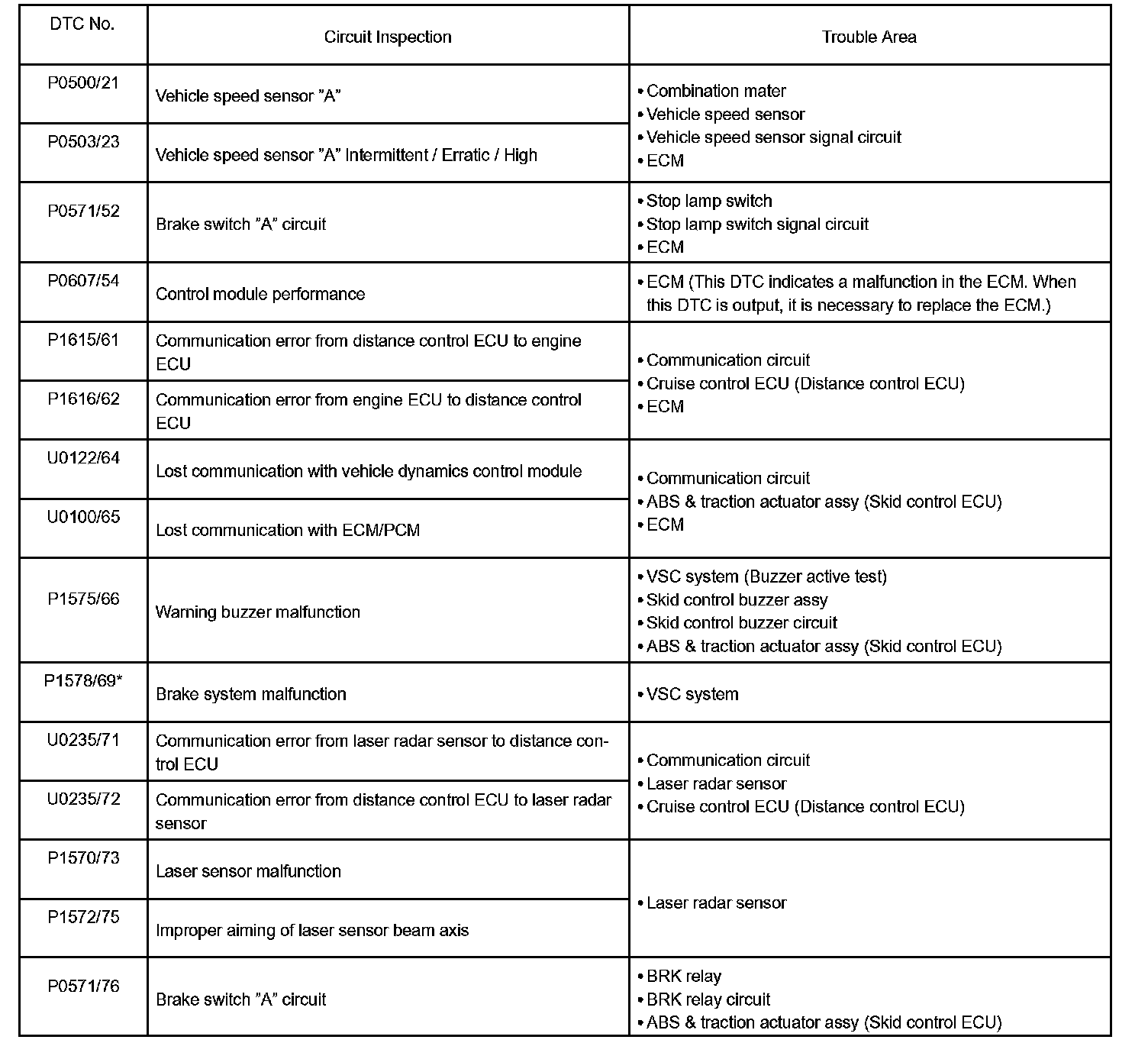

DIAGNOSTIC TROUBLE CODE CHART

P0500/21 - P0571/75:

HINT:
- Using SST 09843-18040, connect terminals TC and CG of the DLC3.
- If a malfunction code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the respective "DTC No." in the DTC chart.

HINT: *: When DTC P1578 (69) is output, check for the DTCs on the skid control ECU in the diagnosis mode. Only when any code is output, inspect the trouble area based on following the DTC.
