DTC 51

DTC 51 CONTINUOUS ELECTRIC CURRENT TO HEIGHT CONTROL COMPRESSOR

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The signal from the suspension control ECU operates the air suspension relay, and the height control compressor motor starts.

The height control compressor assembly operates until the targeted vehicle height is reached. Then the height control sensor sub-assembly sends the signal to the suspension control ECU, and stops the height control compressor.

Step 1 - 3:

Step 4 - 5:

Step 5 (Continued):

Step 5 (Continued) - 6:

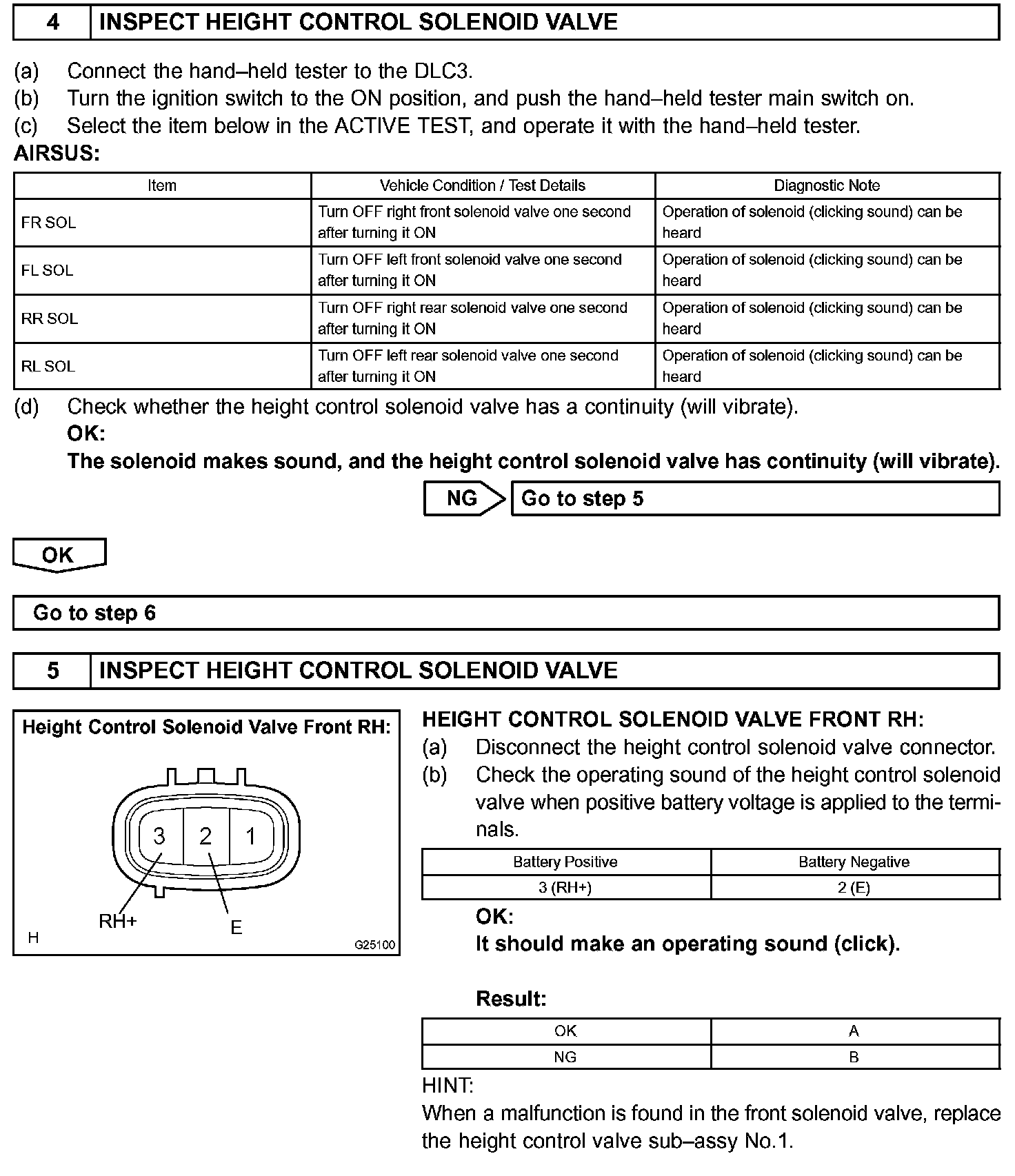

Step 7 - 8:

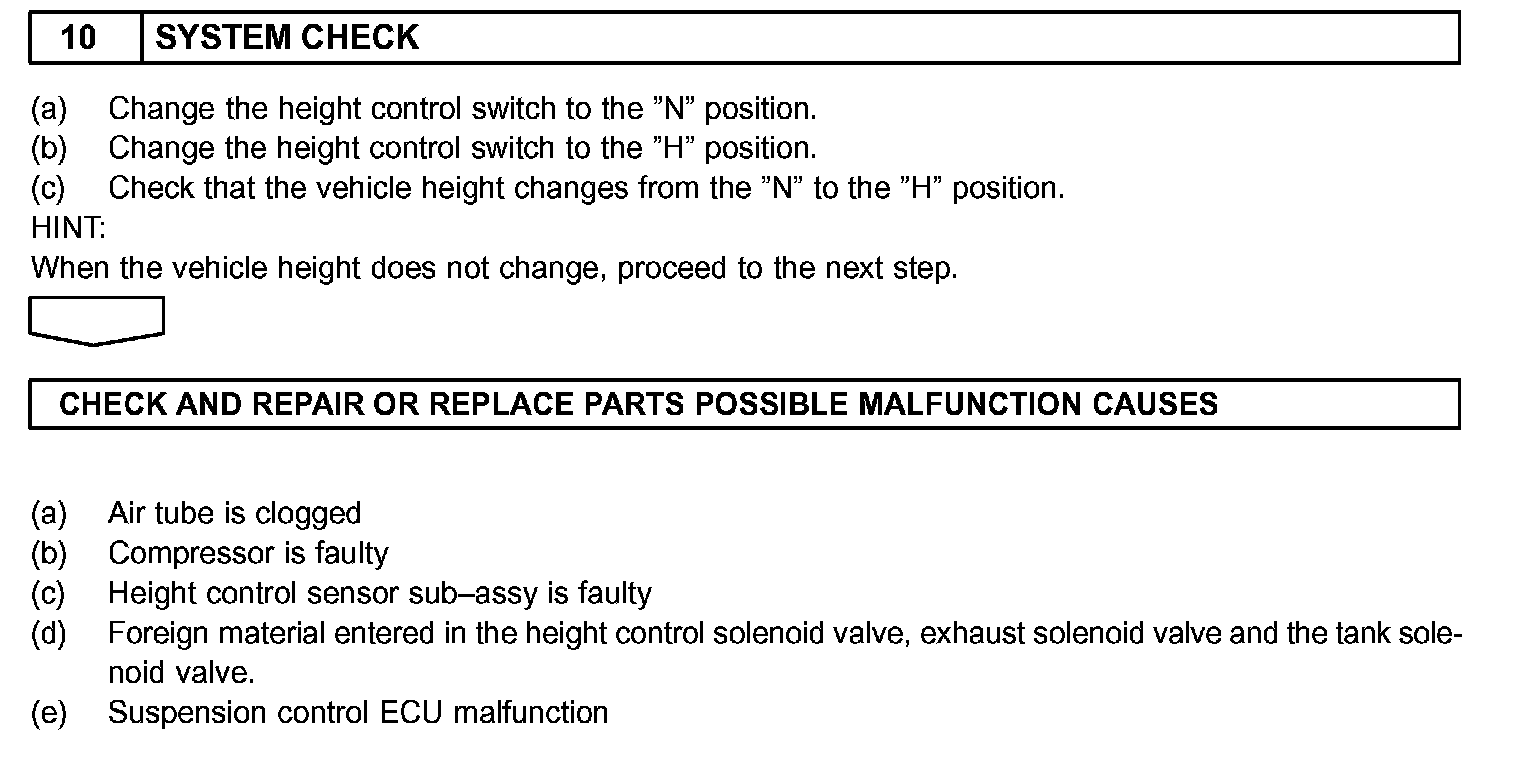

Step 10:

INSPECTION PROCEDURE
