P0420
DTC P0420 CATALYST SYSTEM EFFICIENCY BELOW THRESHOLD (BANK 1)MONITOR DESCRIPTION
DTC Detecting Condition:
The ECM uses sensors mounted before and after the Three-Way Catalyst (TWC) to monitor its efficiency. The first sensor, an Air-Fuel Ratio (A/F) sensor 1, sends pre-catalyst A/F ratio information to the ECM. The second sensor, a heated oxygen sensor (O2S) sends post-catalyst information to the ECM. The ECM compares these two signals to judge the efficiency of the catalyst and the catalyst's ability to store oxygen. During normal operation, the TWC stores and releases oxygen as needed. The capacity to store oxygen results in a low variation in the post-TWC exhaust stream as shown below.
If the catalyst is functioning normally, the waveform of the heated oxygen sensor slowly switches between RICH and LEAN. If the catalyst is deteriorated, the waveform will alternate frequently between RICH and LEAN. As the catalyst efficiency degrades, its ability to store oxygen is reduced and the catalyst output becomes more variable.

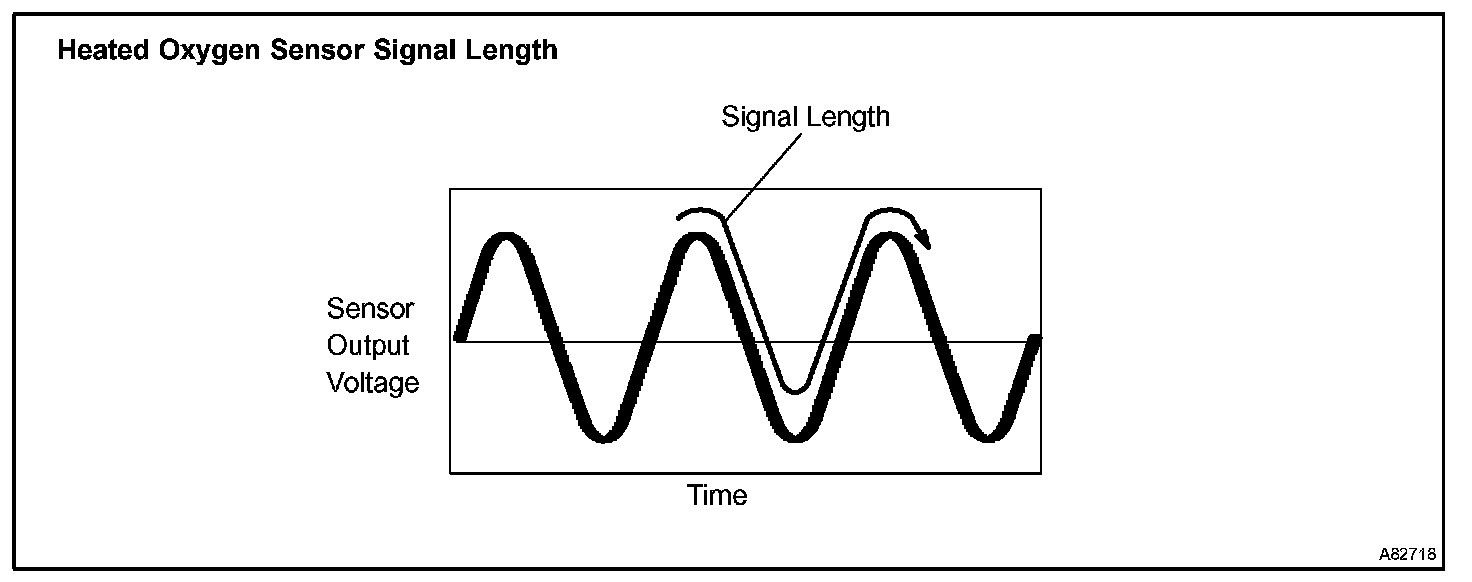

When running the monitor, the ECM compares sensor 1 signals (A/F sensor) over a specific amount of time to determine catalyst efficiency. The ECM begins by calculating the signal length for both sensors (for the rear oxygen sensor, the ECM uses the output voltage signal length). If the oxygen sensor output voltage signal length is greater than the threshold (threshold is calculated based on the A/F sensor signal length), the ECM concludes that the catalyst is malfunctioning. The ECM will turn on the MIL and a DTC will be set.
HINT:
- Bank 1 refers to the bank that includes cylinder No. 1.
- Bank 2 refers to the bank that does not include cylinder No. 1.
- Sensor 1 refers to the sensor closest to the engine assembly.
- Sensor 2 refers to the sensor farthest away from the engine assembly.
MONITOR RESULT
Monitor Strategy:

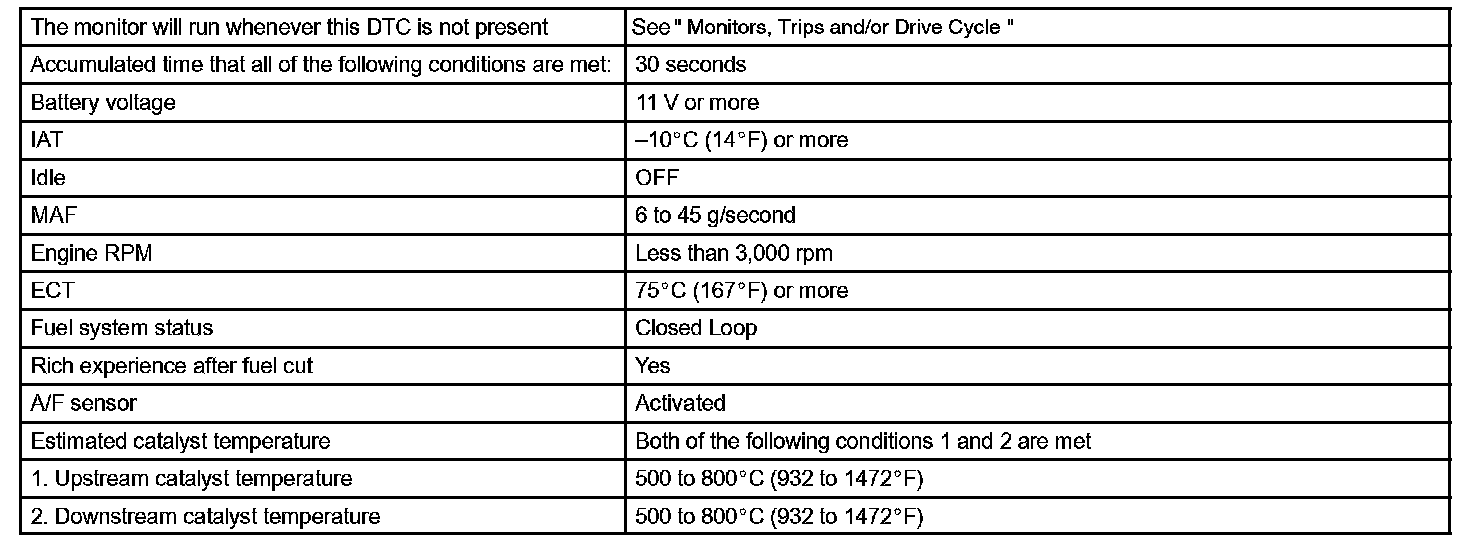

Typical Enabling Conditions:
Typical Malfunction Thresholds:
Refer to Monitors, Trips and/or Drive Cycle for detailed information.
The test value and test limit information are described as shown in the table. Check the monitor result and test values after performing the monitor drive pattern.
- TID (Test Identification Data) is assigned to each emissions-related component.
- TLT (Test Limit Type):
If TLT is 0, the component is malfunctioning when the test value is higher than the test limit.
If TLT is 1, the component is malfunctioning when the test value is lower than the test limit.
- CID (Component Identification Data) is assigned to each test value.
- Unit Conversion is used to calculate the test value indicated on generic OBD II scan tools.
a. Connect the the hand-held tester or the OBD II scan tool to the DLC3.
b. Start the engine and warm it up with all the accessories switched OFF until the ECT is stable. (c) Run the engine at 2,500 to 3,000 rpm for about 3 minutes.
d. When alternating the engine between 3,000 rpm for 2 seconds and 2,000 rpm for 2 seconds, check the waveform of the oxygen sensor (bank 1 sensor 2).
Step 1 - 2:
Step 3 - 4:
INSPECTION PROCEDURE
HINT: Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
