P0455

DTC P0455 EVAPORATIVE EMISSION CONTROL SYSTEM LEAK DETECTED (GROSS LEAK)

CIRCUIT DESCRIPTION

DTC Detection Condition:

When predetermined conditions (closed loop, etc.) are met, the EVAP VSV is opened and stored fuel vapor in the canister is purged to the intake manifold. The ECM changes duty-cycle to the EVAP VSV to control purge flow volume. Purge flow volume is determined by the intake manifold pressure. Atmospheric pressure is allowed into the canister through the vent valve (CCV) to ensure that purge flow is maintained when negative pressure (vacuum) is applied to the canister. This EVAP system contains following components:

Step 1 - 2:

Step 3 - 4:

Step 4 (Continued):

Step 5:

Step 6:

Step 7:

Step 8:

Step 9:

Step 9 (Continued):

Step 10:

Step 11:

Step 12:

Step 13:

Step 14:

Step 16:

Step 17 - 18:

Step 19 - 22:

Step 23 - 24:

Step 25:

Step 26 - 27:

Step 28:

Step 29 - 30:

Step 31 - 32:

Step 33:

Step 34 - 35:

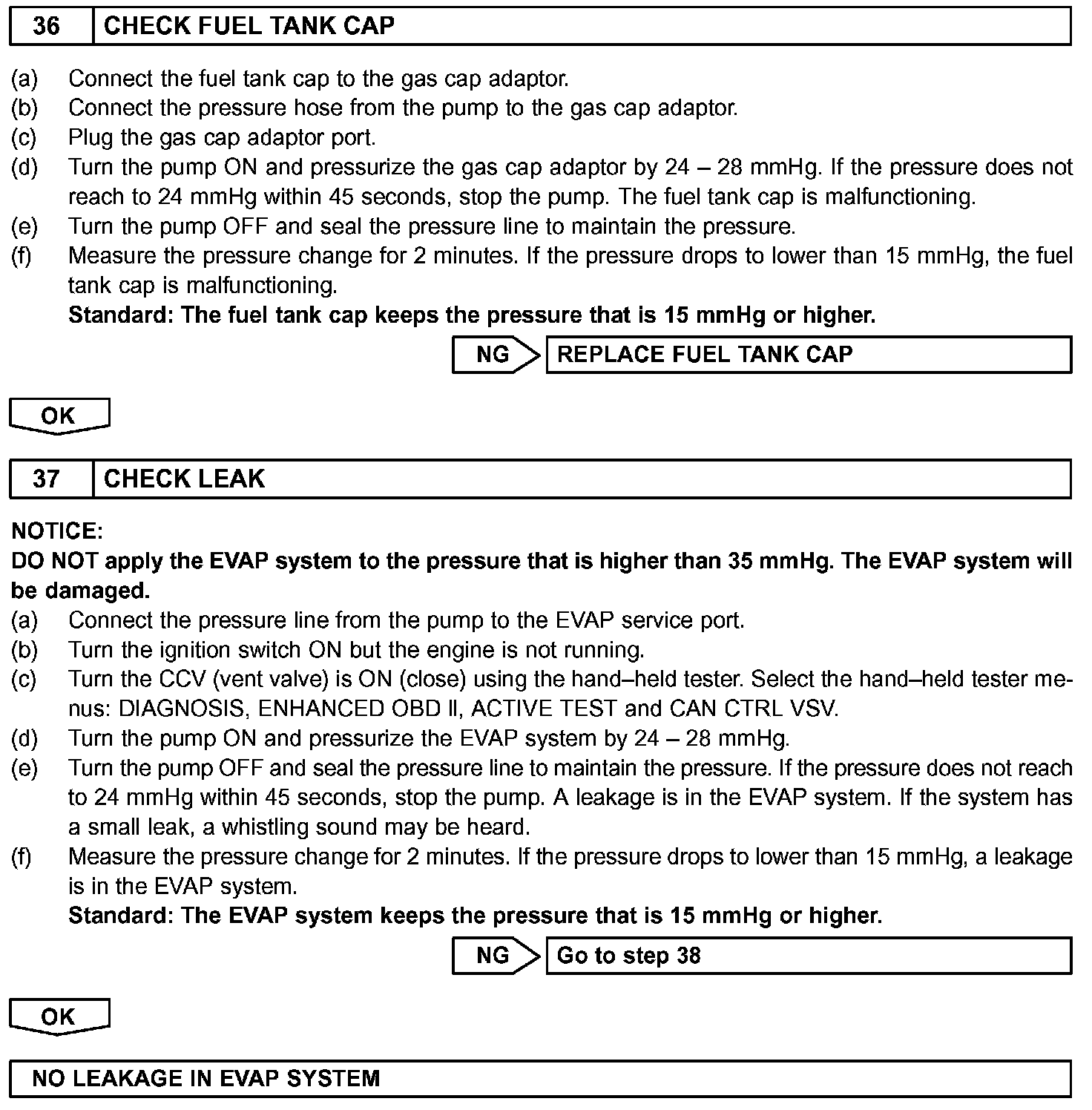

Step 36 - 37:

Step 38:

Step 39 - 40:

INSPECTION PROCEDURE

HINT: Read freeze frame data. Freeze frame data records engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

MONITOR DESCRIPTION

Monitor Strategy:

Typical Enabling Conditions:

Typical Malfunction Thresholds:

The ECM tests the Evaporative Emissions (EVAP) system using the fuel tank pressure sensor, Canister Close Valve (CCV), and EVAP VSV. The ECM closes the EVAP system and creates negative pressure (vacuum) into it. The ECM then monitors the internal pressure using the fuel tank pressure sensor (refer to the Leak Check graphic).

P0442, P0455 and P0456
A leak in the evaporative emission system prompts the ECM to set DTC P0442, P0455 or P0456. The ECM checks if the EVAP has leaks. First, the ECM opens the EVAP VSV while the CCV is closed. After a sufficient amount of time has passed, a high negative pressure(vacuum) will develop in the fuel tank as air is drawn into the intake manifold. The EVAP VSV is then closed. The ECM then monitors the pressure increase (loss of vacuum) in the fuel tank. If the pressure rises beyond a specified amount, the ECM determines that the system has a leak, turns on the MIL and outputs a DTC.

The ECM has separate DTCs for small and large leaks:
1. DTC P0442 is set when the internal fuel tank pressure has a large increase and the EVAP system has a small leak.
2. DTC P0455 is set when the EVAP system has a very large leak. The ECM tries to create negative pressure (vacuum) in the fuel tank by opening the EVAP VSV while the CCV is closed. However, the fuel tank pressure does not decrease beyond a specified threshold.
3. DTC P0456 is set when the internal fuel tank pressure increases slightly and the EVAP system has a very small leak.

MONITOR RESULT




Refer to Monitors, Trips and/or Drive Cycle for detailed information.
The test value and test limit information are described as shown in the table. Check the monitor result and test values after performing the monitor drive pattern.
- TID (Test Identification Data) is assigned to each emissions-related component.
- TLT (Test Limit Type):
If TLT is 0, the component is malfunctioning when the test value is higher than the test limit.
If TLT is 1, the component is malfunctioning when the test value is lower than the test limit.
- CID (Component Identification Data) is assigned to each test value.
- Unit Conversion is used to calculate the test value indicated on generic OBD II scan tools.
