P2122
DTC P2122 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D" CIRCUIT LOW INPUTHINT: This is the repair procedure for the "accelerator pedal position sensor".
CIRCUIT DESCRIPTION
HINT:
- This electrical throttle system does not use a throttle cable.
- This accelerator pedal position sensor is a non-contact type.
DTC Detection Condition:
The accelerator pedal position sensor is mounted in the accelerator pedal to detect the angle of the accelerator pedal. This sensor is electronically controlled and uses Hall-effect elements. In the accelerator pedal position sensor, the voltage applied to terminals VPA and VPA2 of the ECM changes between 0 V and 5 V in proportion to the angle of the accelerator pedal. The VPA is a signal to indicate the actual accelerator pedal angle and is used for the engine control. VPA2 is used to detect malfunctions of the sensor itself.
The ECM judges the current angle of the accelerator pedal from these signals input from terminals VPA and VPA2, and the ECM controls the throttle motor based on these signals.
HINT: After confirming DTC P2120, P2122, P2123, P2125, P2127, P2128 and P2138, use the hand-held tester or the OBD II scan tool to confirm the accelerator pedal position sensor output voltage.
MONITOR DESCRIPTION

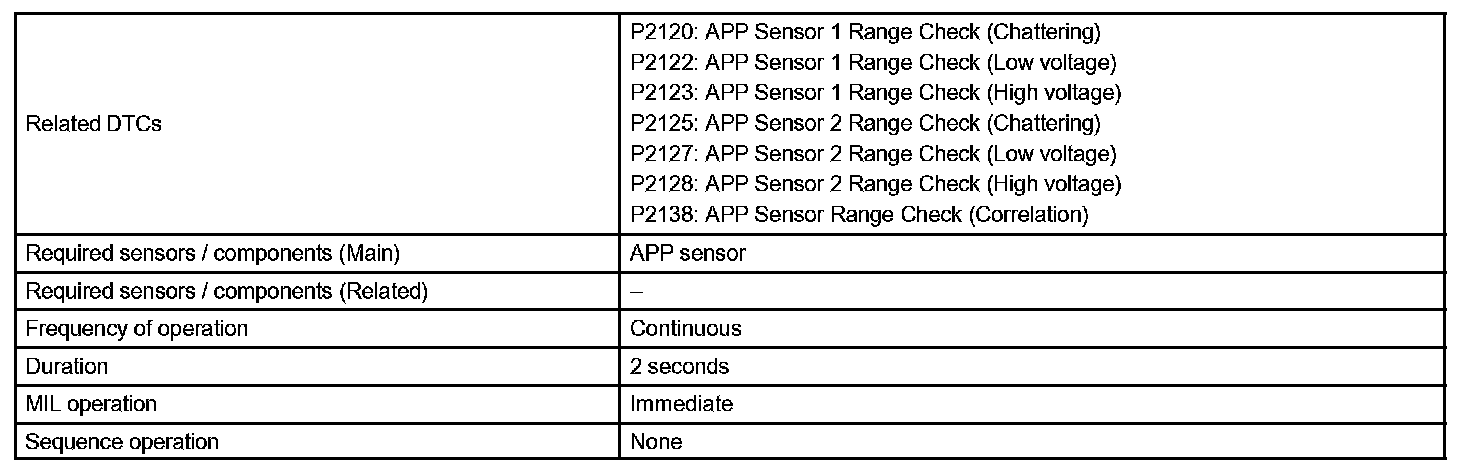

Monitor Strategy:
Typical Enabling Conditions:
Typical Malfunction Thresholds:
Component Operating Range:
When VPA or VPA2 deviates from the standard, or the difference between the voltage outputs of the two sensors is less than the threshold, the ECM concludes that there is a defect in the accelerator pedal position sensor. The ECM turns on the MIL and a DTC is set.
Example: When the voltage output of the VPA is below 0.2 V or exceeds 4.8 V.

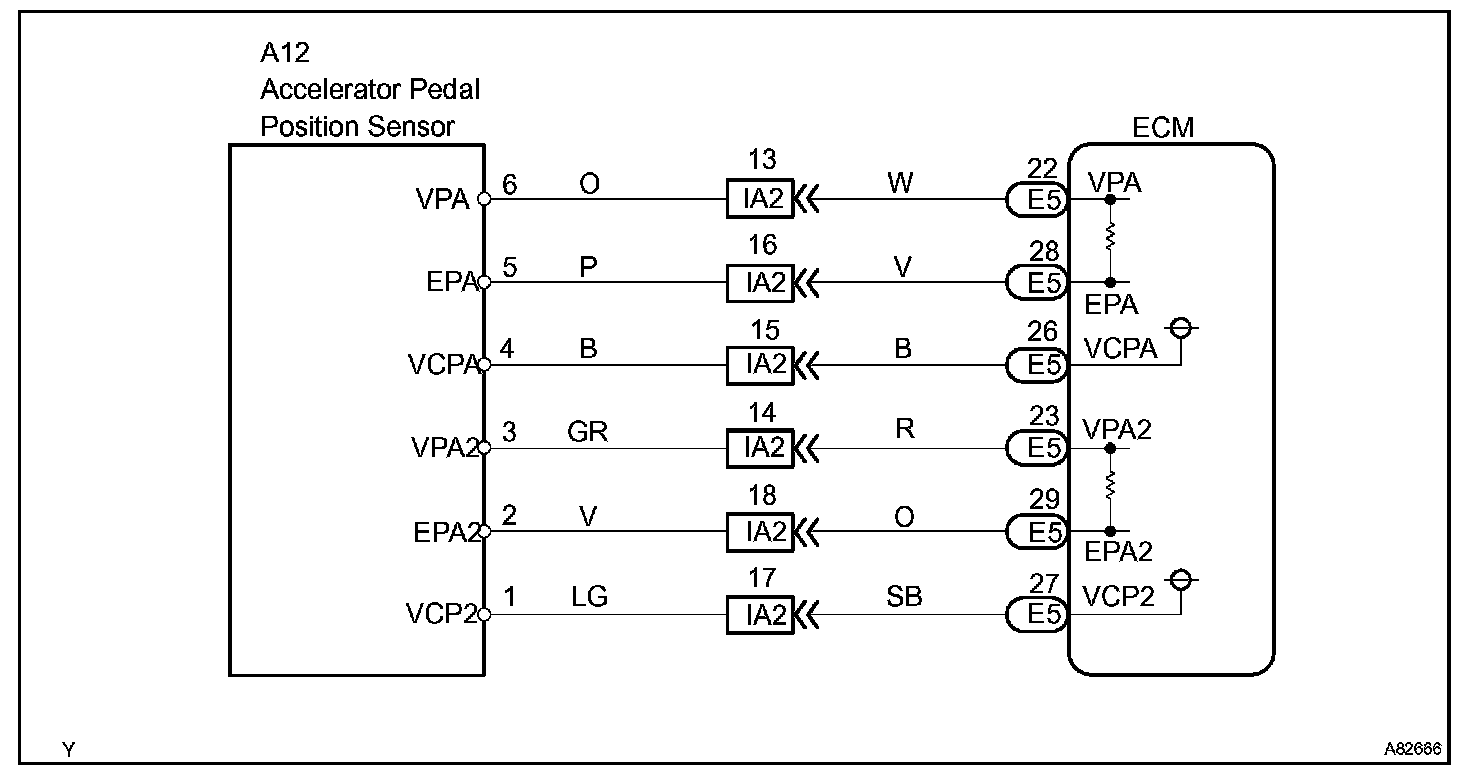

Wiring Diagram:
INSPECTION PROCEDURE
HINT: Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
Step 1:
Step 2:
Step 3 - 5:
Hand-held tester
Step 1:
Step 2 - 4:
OBD II scan tool (excluding hand-held tester)
