Clearance Sonar Main Switch Circuit
Clearance Sonar Main Switch CircuitDESCRIPTION
The clearance sonar main switch is installed on the integration control and panel assembly. When the clearance sonar main switch in turned ON, an ON signal is sent to the clearance warning ECU through the BEAN line. The clearance sonar system operates according to this signal.

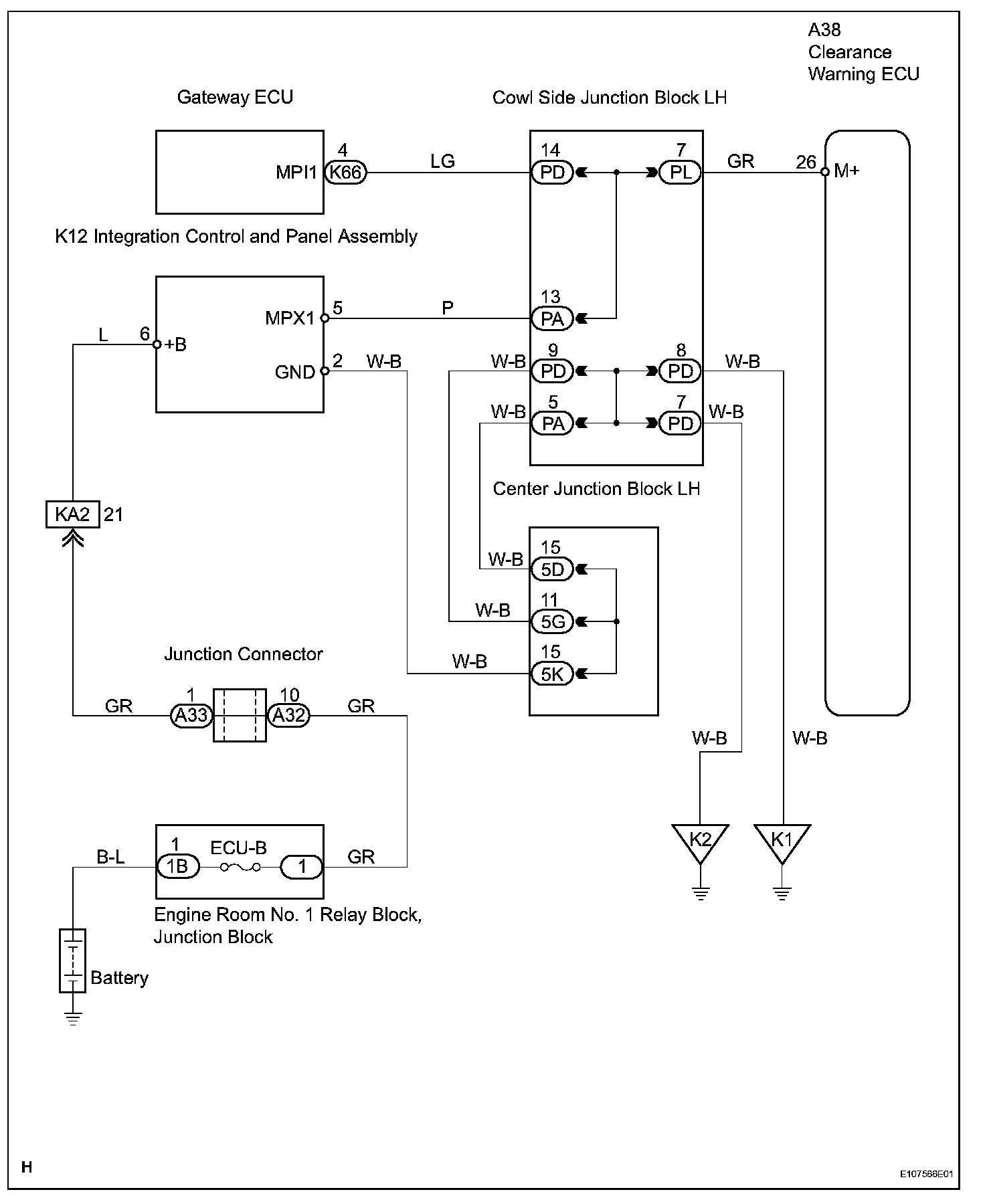

Wiring Diagram:

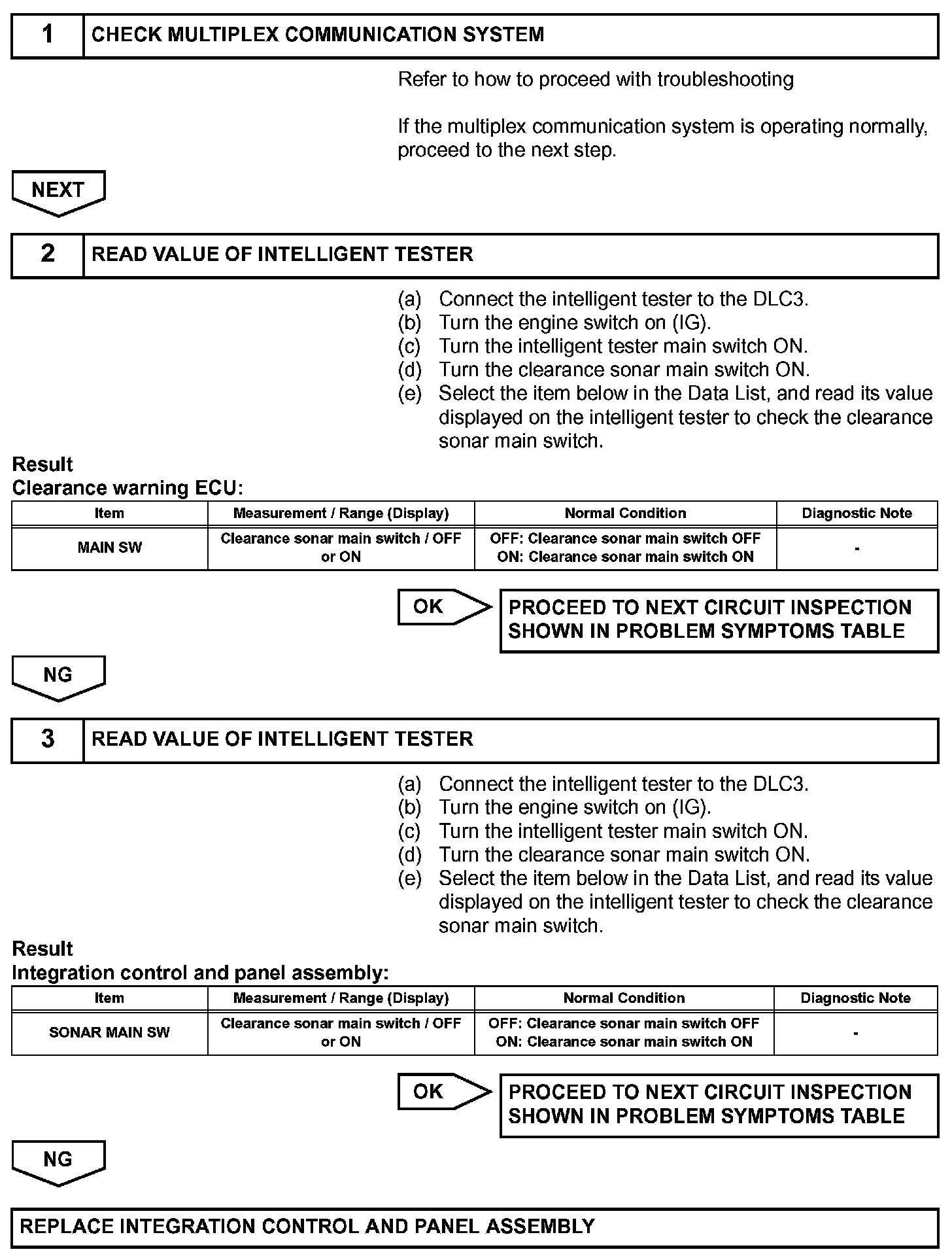

Step 1-3:
INSPECTION PROCEDURE
