AVC-LAN Circuit between Radio Receiver and AMP
AVC-LAN Circuit between Radio Receiver and AMPDESCRIPTION
Each unit of the audio system connected to the AVC-LAN (communication bus) transfers the signal of each switch by communication. When a short to B+ or short to ground occurs in this AVC-LAN, the audio system will not function normally as the communication is discontinued. In this AVC-LAN, the radio receiver assy becomes the master of the communication, and the radio receiver assy has a resistance necessary for transmitting the communication.

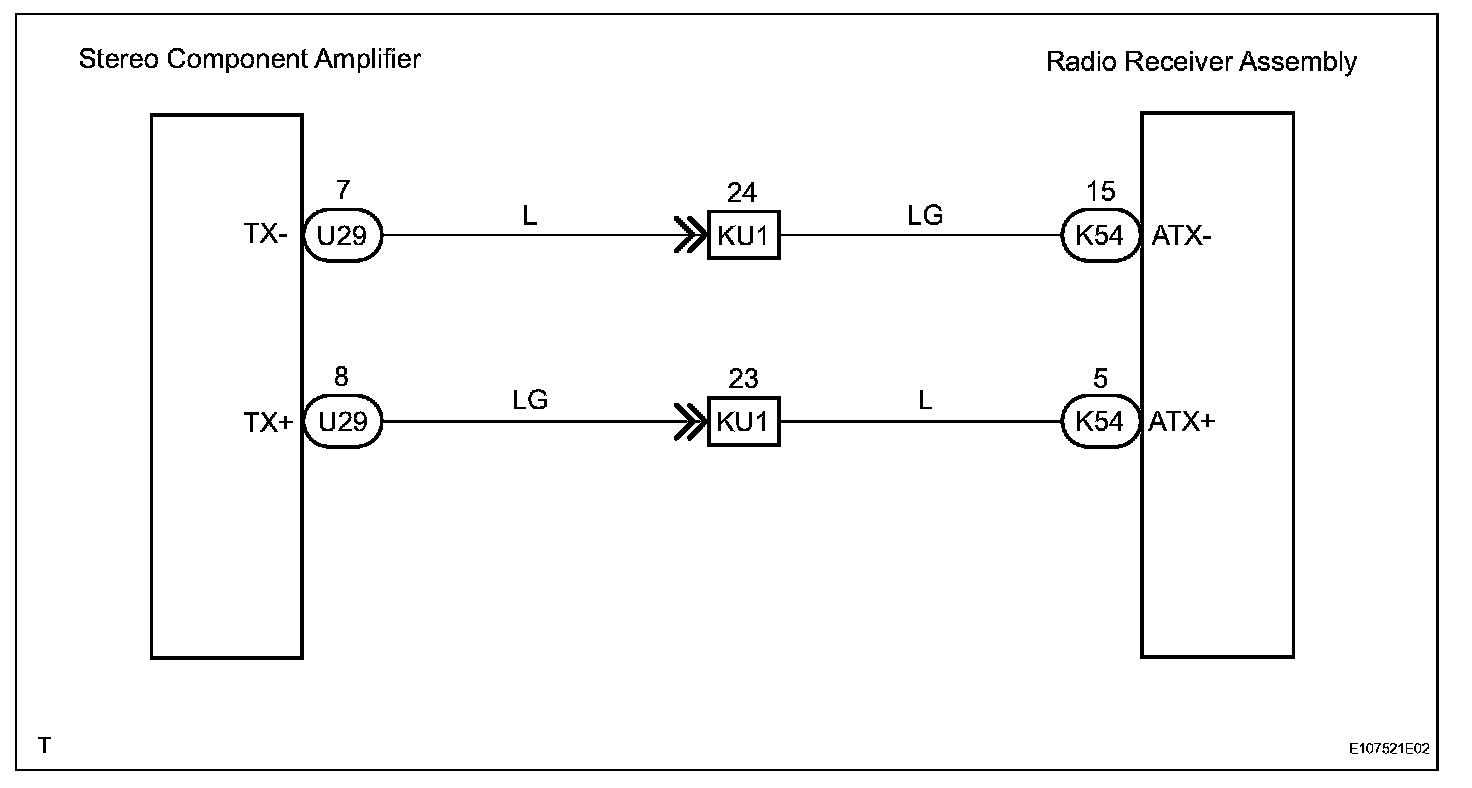

Wiring Diagram:
Step 1:
Step 1(continued)-2:

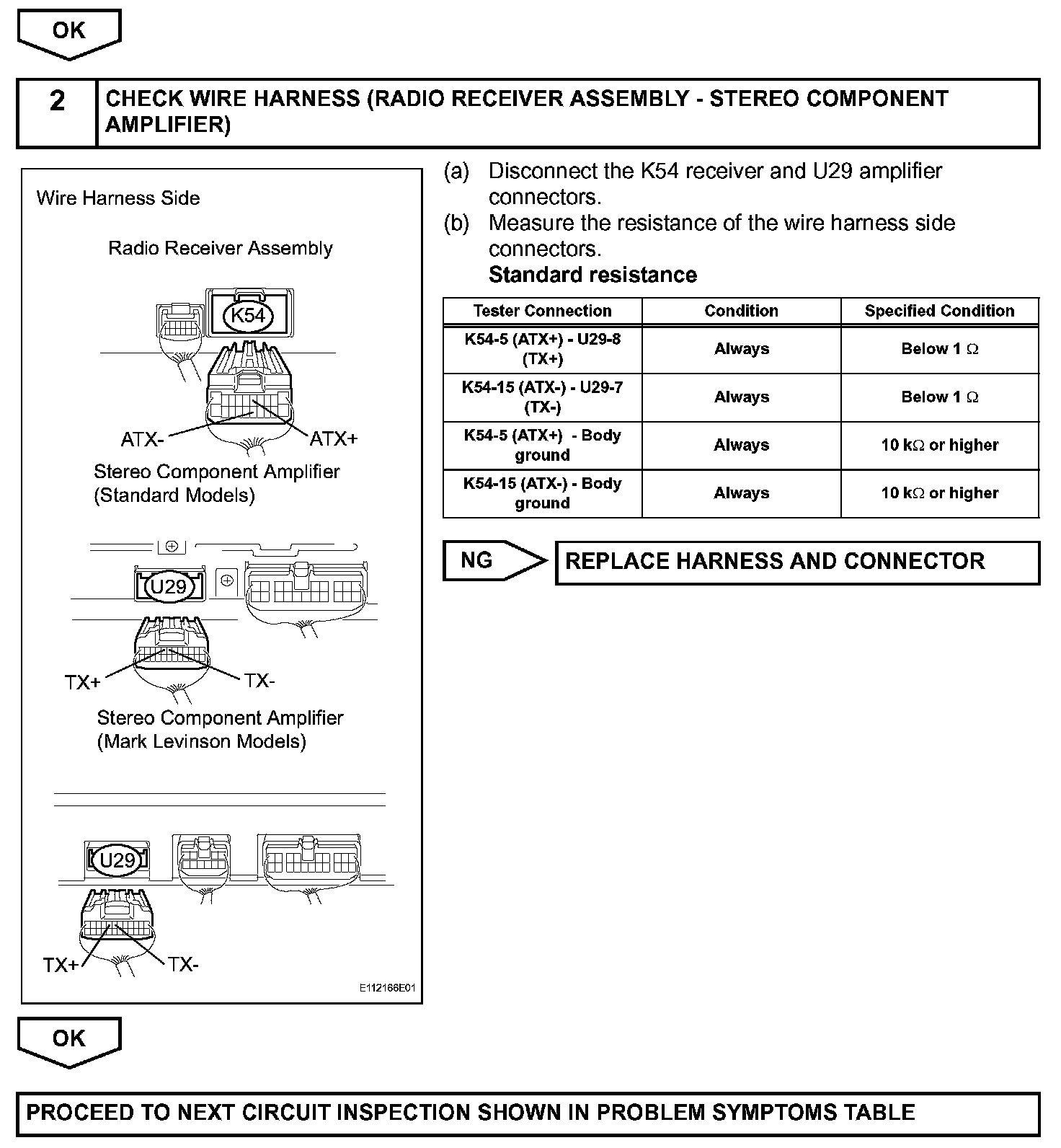

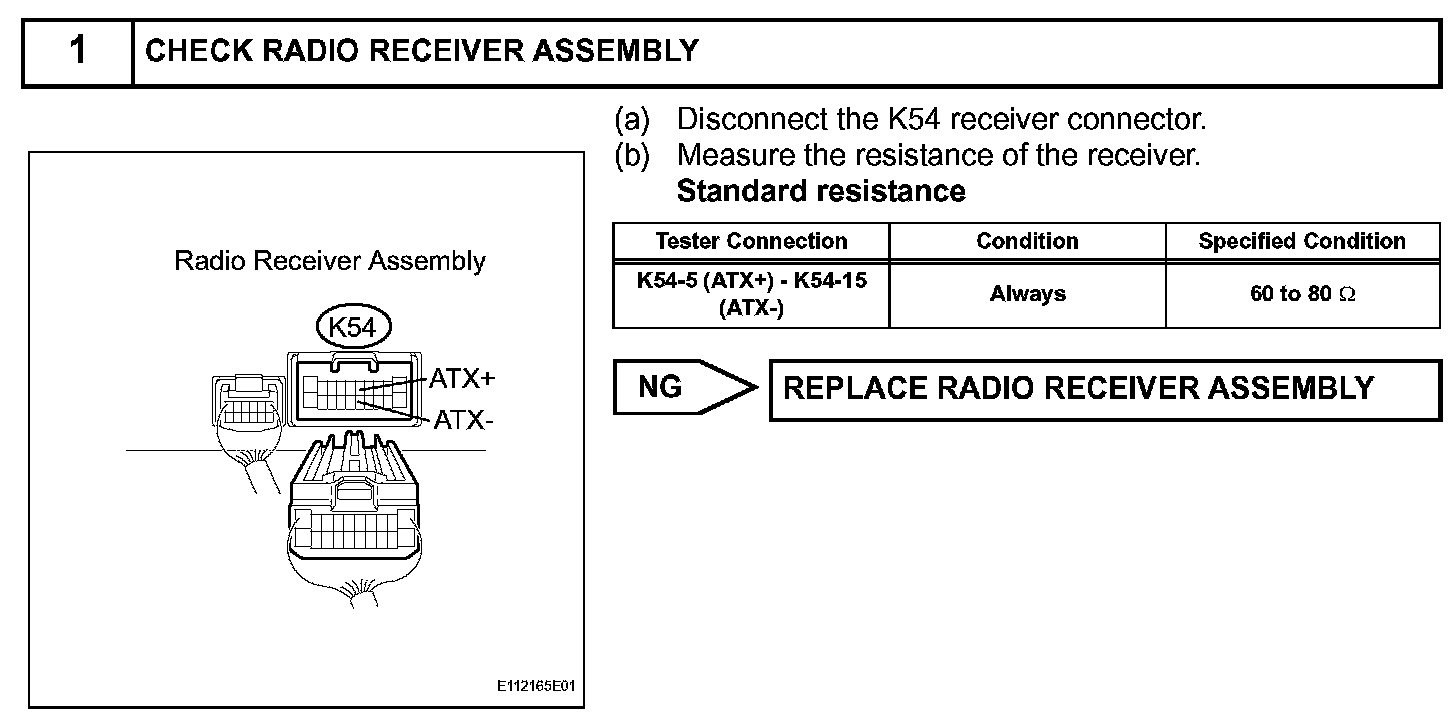

INSPECTION PROCEDURE
