Theft Deterrent System

TERMINALS OF ECU

Terminal Of Control Module/Pinouts:




1. CHECK THEFT WARNING ECU ASSY (THEFT DETERRENT ECU)




a. Disconnect the T5 ECU connector, and check the voltage or continuity between each terminal of the wire harness side connector.

If the result is not as specified, there may be a malfunction on the wire harness side.




b. Reconnect the T5 ECU connector, and check the voltage between each terminal of the connector.

If the result is not as specified, the ECU may have a malfunction.

Terminal Of Control Module/Pinouts:

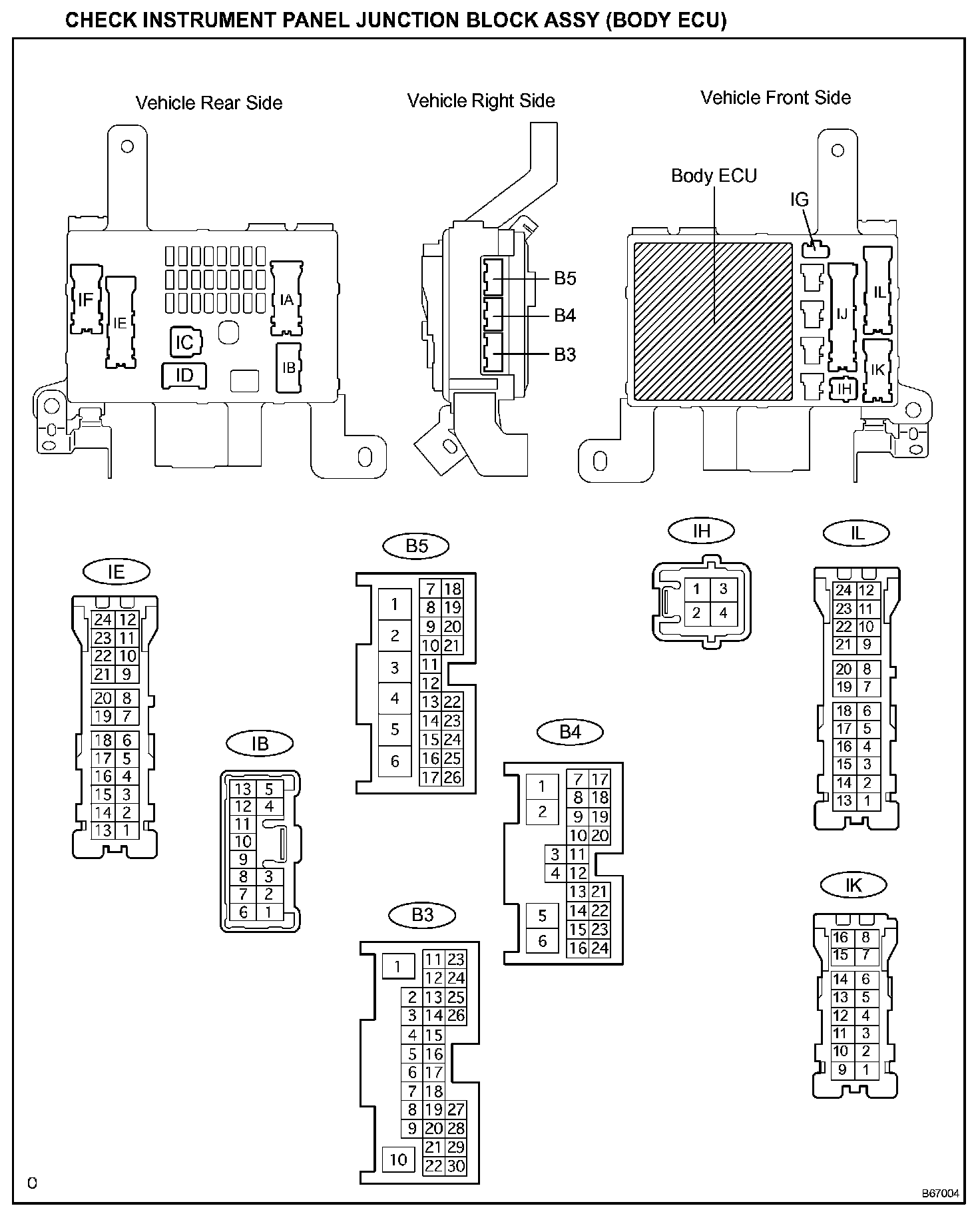

2. CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSY (BODY ECU)




a. Disconnect the J/B connector, and check the voltage or continuity between each terminal of the wire harness side connector.

If the result is not as specified, there may be a malfunction on the wire harness side.




b. Reconnect the J/B connector, and check the voltage between each terminal of the connector.

If the result is not as specified, the ECU may have a malfunction.
