Central Control Module: Service and Repair

Audio And Visual System:

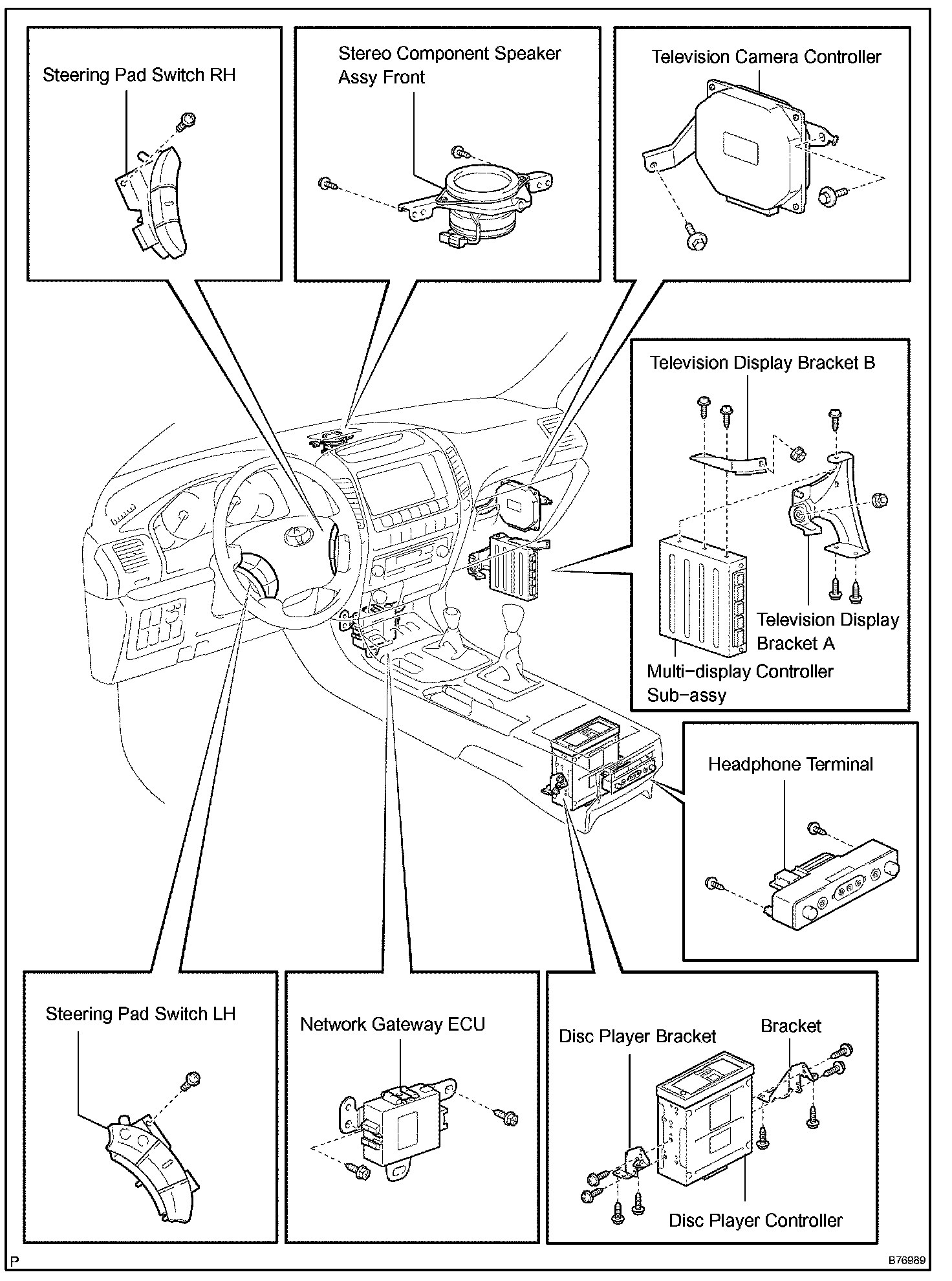

NETWORK GATEWAY ECU

REPLACEMENT

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
3. REMOVE CONSOLE UPPER PANEL GARNISH NO.2
4. REMOVE CONSOLE UPPER PANEL GARNISH NO.1
5. REMOVE CONSOLE PANEL UPPER ASSEMBLY
6. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY LH
7. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY RH
8. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
9. REMOVE RR CONSOLE BOX ASSEMBLY
10. REMOVE CONSOLE BOX INSERT FRONT NO.2
11. REMOVE CONSOLE BOX INSERT
12. REMOVE CONSOLE UPPER PANEL GARNISH FRONT
13. REMOVE CONSOLE BOX LOWER




14. REMOVE NETWORK GATEWAY ECU
a. Disconnect the connector.

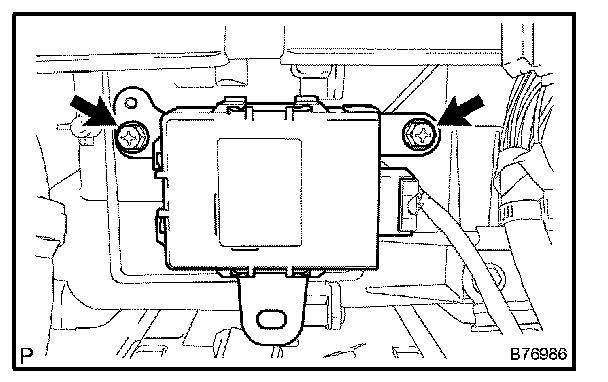

b. Remove the 2 screws and network gateway ECU.
