Data List

DATA LIST

HINT: According to the DATA LIST displayed on the the hand-held tester, you can read the value of the switch, the sensor and so on without removing parts. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.




a. Connect the hand-held tester to DLC3.
b. Turn the ignition switch ON.

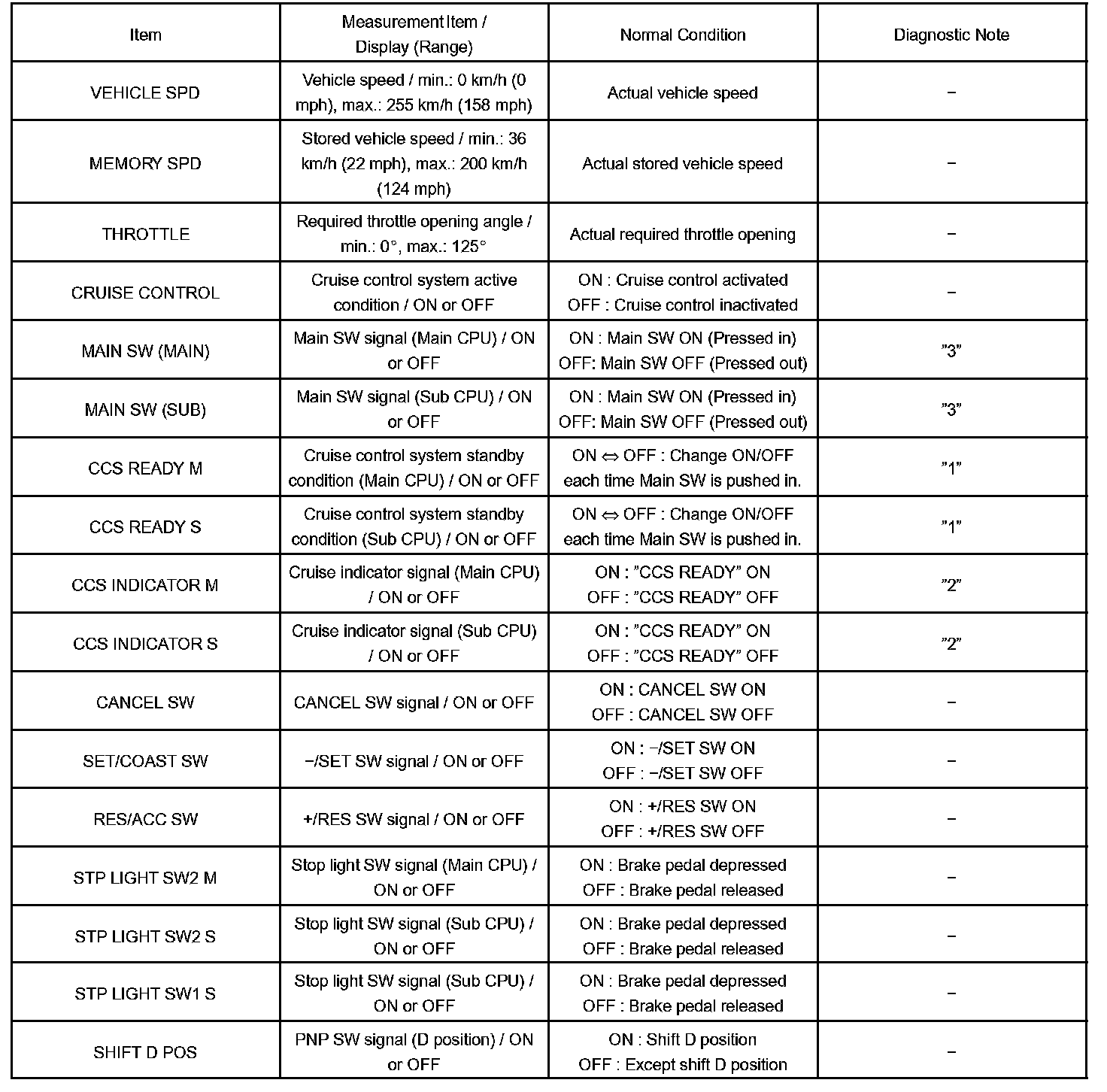

c. According to the display on tester, read the "DATA LIST".

HINT:
"3" is OK but "1" is NG--> ECM failure
"1" is OK but "2" is NG--> DTC output or ECM failure
"3" is OK but cruise indicator not turn on--> CRUISE MAIN indicator or wire harness or ECM failure
