Air Conditioner Control Assembly

AIR CONDITIONER CONTROL ASSEMBLY

OVERHAUL

1. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY




2. REMOVE AIR CONDITIONER CONTROL ASSEMBLY

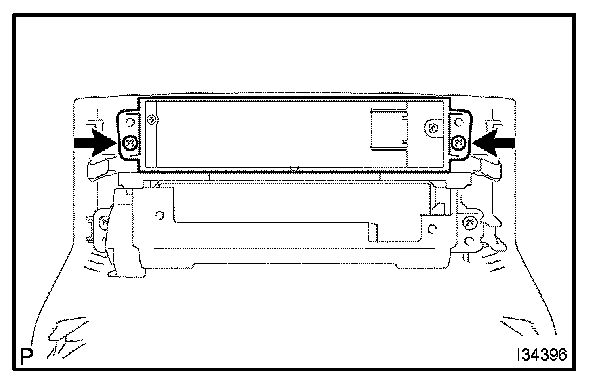

a. Remove the 2 screws and the air conditioner Control assembly.

3. REMOVE COOLER CONTROL SWITCH KNOB
4. REMOVE HEATER CONTROL NAME SHEET NO.1




5. REMOVE HEATER CONTROL HOUSING

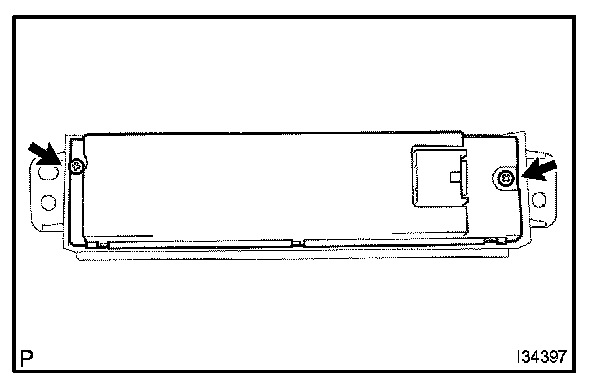

a. Remove the 2 screws.

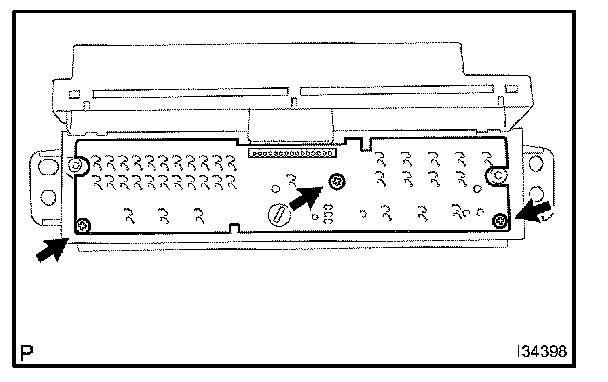

b. Remove the 3 screws and the heater control housing.




6. REMOVE AIR CONDITIONING CONTROL BULB

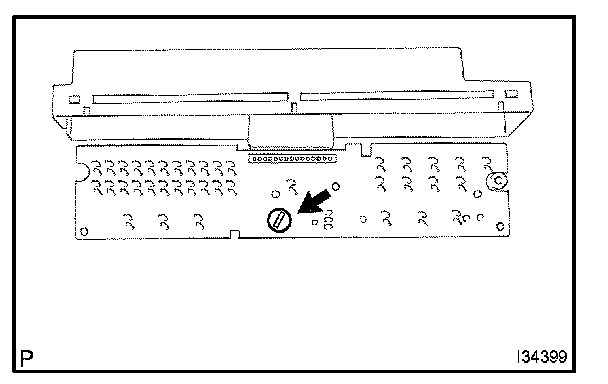

a. Remove the air conditioning control bulb.




7. REMOVE INTEGRATION CONTROL & PANEL ASSEMBLY

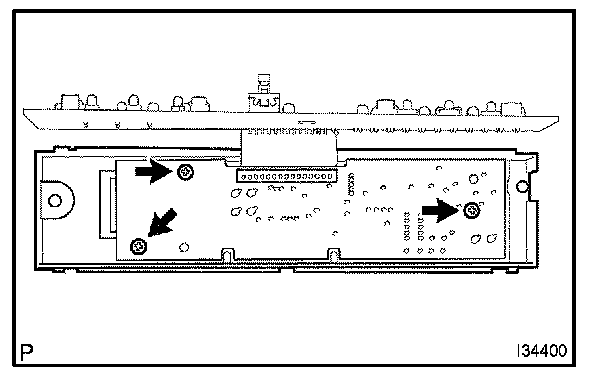

a. Remove the 3 screws and the integration control & panel assembly.
