Air Conditioning Control Assembly

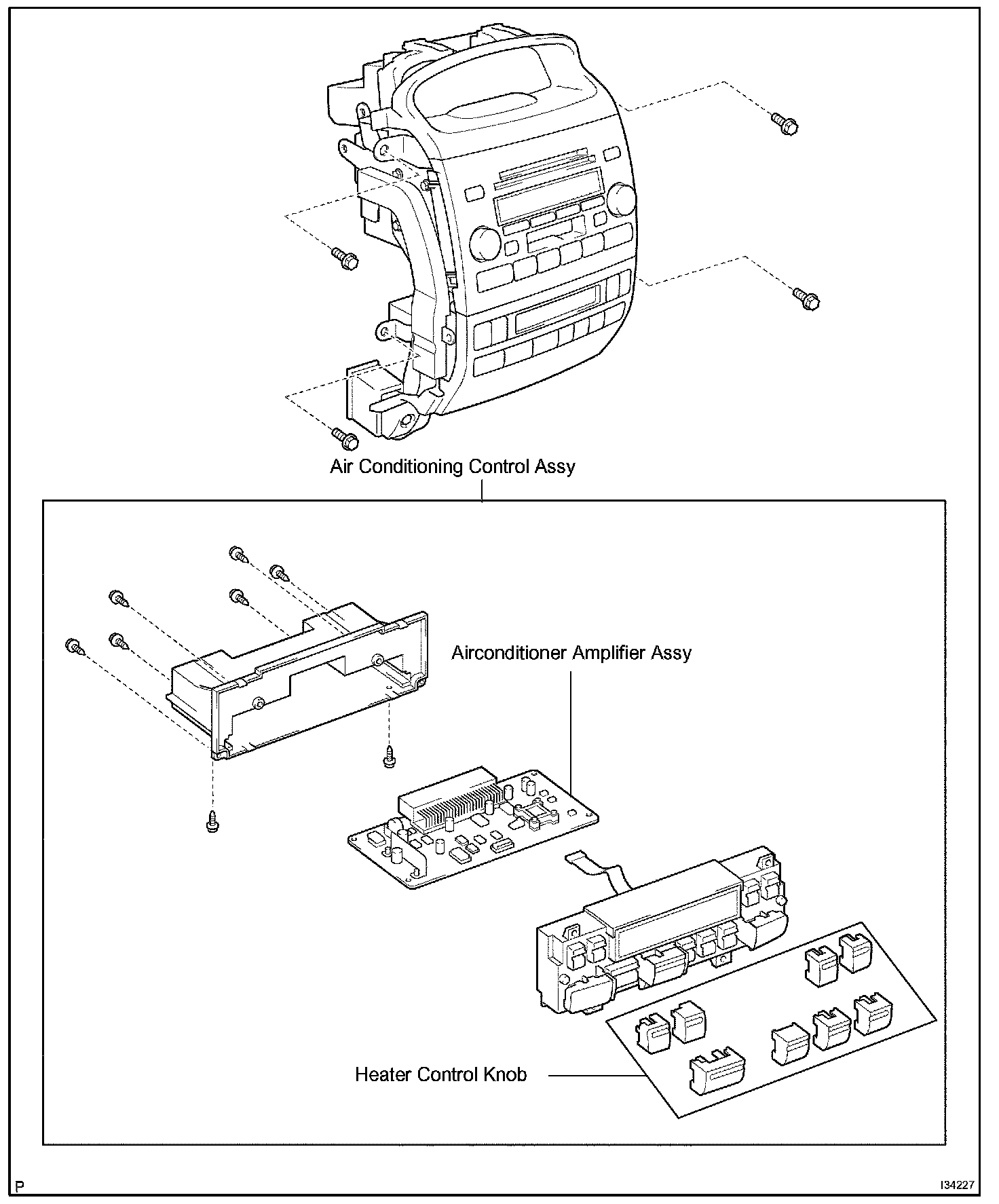

Air Conditioning Control Assy:






OVERHAUL

1. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY LH
2. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY RH

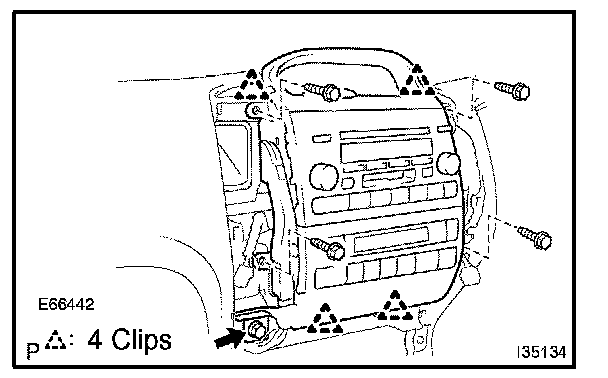

3. REMOVE INTEGRATION CONTROL & PANEL ASSEMBLY
a. Loosen the bolt and remove the 4 bolts, the 4 clips and the integration control & panel assembly.

4. REMOVE RADIO BRACKET NO.1
5. REMOVE RADIO BRACKET NO.2
6. REMOVE RADIO RECEIVER ASSEMBLY (W/ EMV & NAVIGATION SYSTEM)

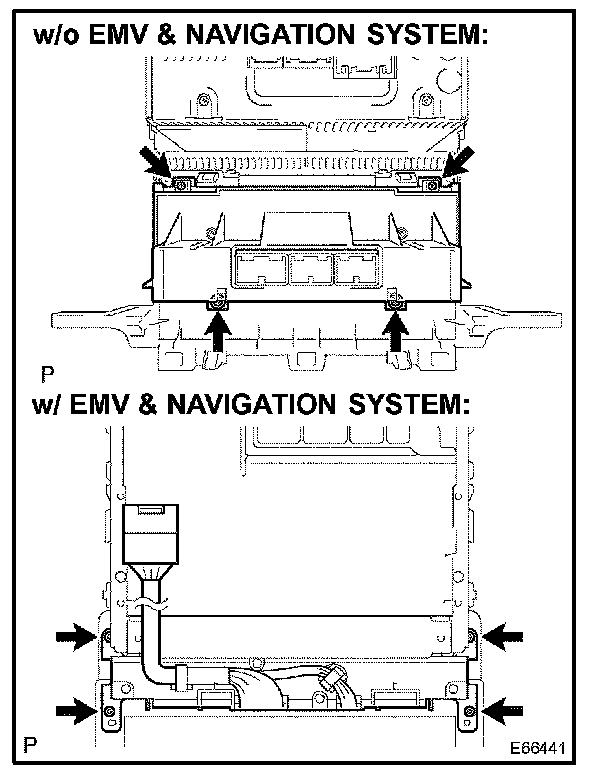

7. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
a. Remove the 4 screws and the air conditioning control assembly.




8. REMOVE AIRCONDITIONER AMPLIFIER ASSEMBLY (W/O EMV & NAVIGATION SYSTEM)

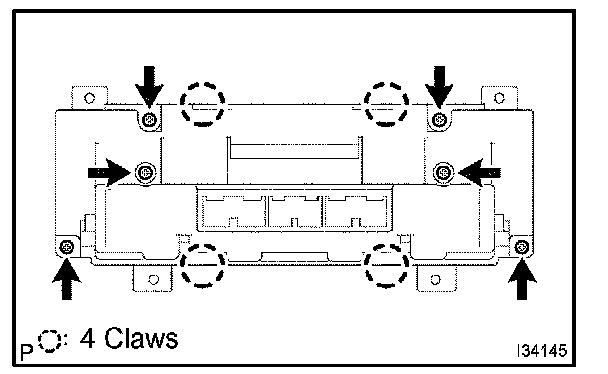

a. Release the 4 claw fittings and remove the 6 screws and the heater control housing.

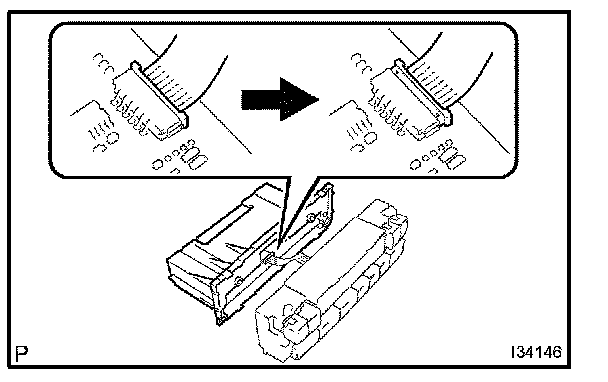

b. Release the lock of the connector and disconnect the cable.

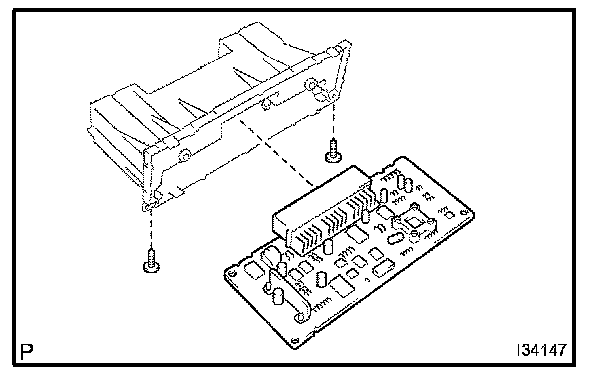

c. Remove the 2 screws and the air conditioner amplifier assembly.

9. REMOVE AIR CONDITIONING CONTROL BULB (W/O EMV & NAVIGATION SYSTEM)
10. REMOVE HEATER CONTROL KNOB (W/O EMV & NAVIGATION SYSTEM)
