Rear Seat Control Switch Power Source Circuit
REAR SEAT CONTROL SWITCH POWER SOURCE CIRCUIT CIRCUIT DESCRIPTION This circuit provides power to operate the rear seat control switch.
Wiring Diagram:

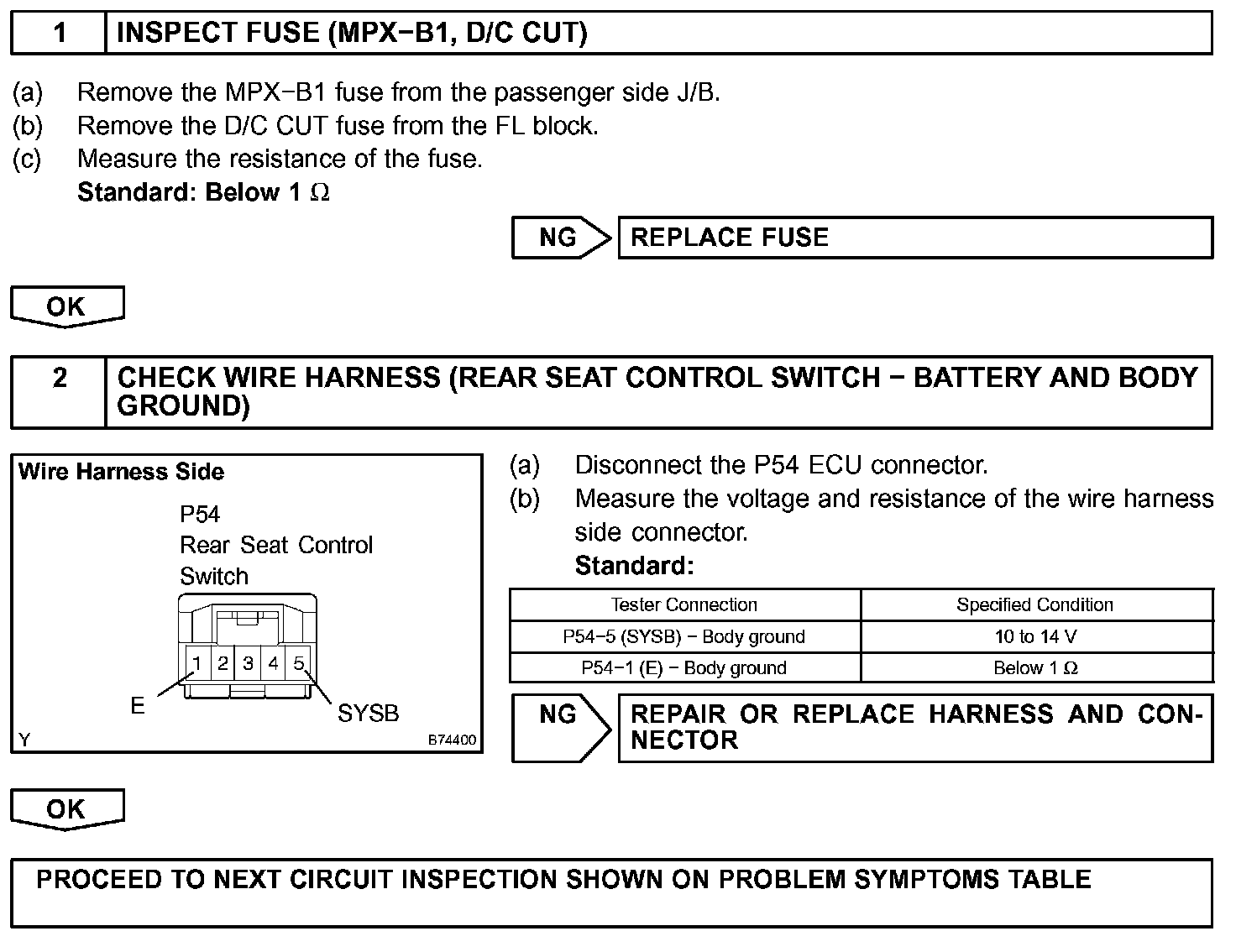

Step 1-2:
INSPECTION PROCEDURE
