Precaution

PRECAUTION

NOTE: When disconnecting the negative (-) battery terminal, initialize the following system after the terminal is reconnected.
- Front Power Seat Control System

1. RESTRICTION OF STEP MOTORS CONTINUOUS OPERATION

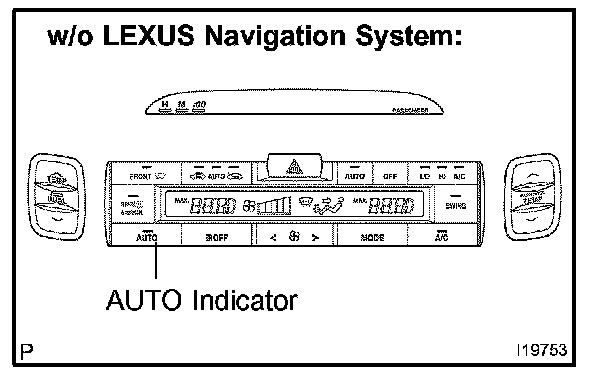

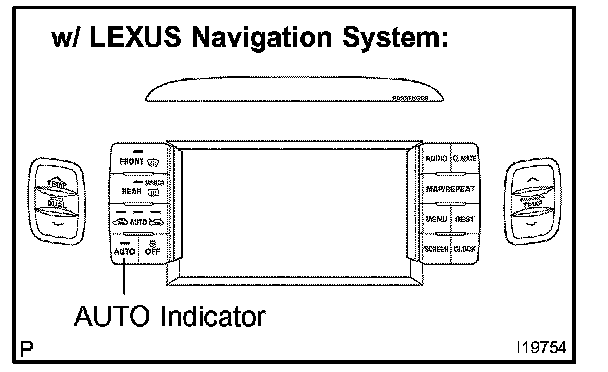

If the step motor is continuously operating for many hours, the step motor is forced to stop and the "AUTO" indicator blinks. In this case, the step motor automatically restores after cooling for approximately 7 minutes.
