Disassembly and Reassembly

DISASSEMBLY

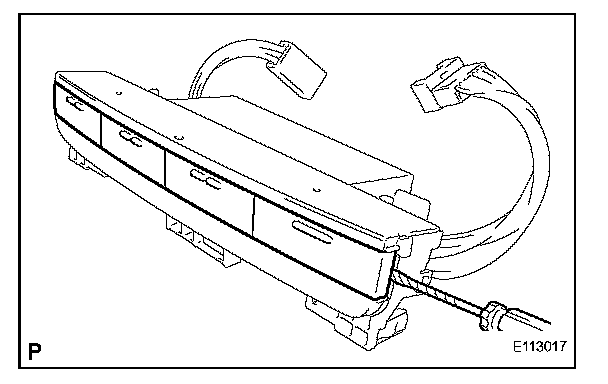

1. REMOVE CONTROL KNOB (w/ Navigation System)




a. Using a screwdriver, pull out the knobs.

HINT: Tape the screwdriver tip before use.

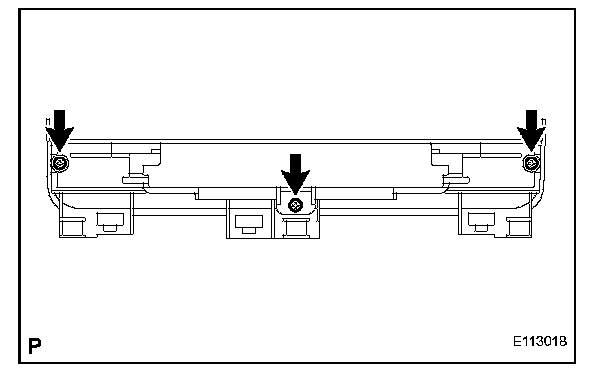

2. REMOVE INTEGRATION CONTROL PANEL (w/ Navigation System)




a. Remove the 3 screws.

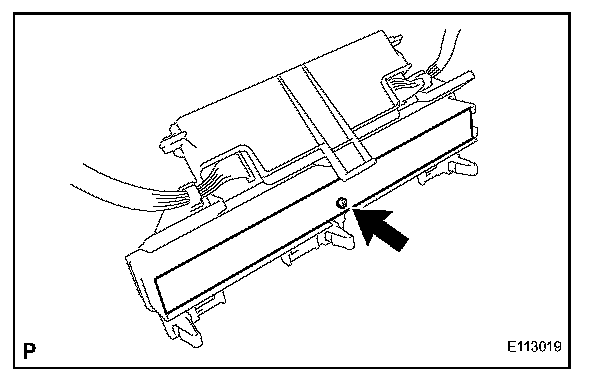

b. Remove the screw and board.

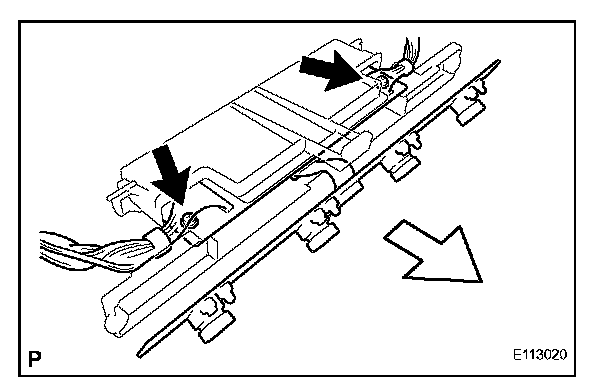

3. REMOVE INTEGRATION CONTROL HOUSING (w/ Navigation System)




a. Disconnect the connector clamps.
b. Remove the 2 screws and pull out the board from the integration control housing.

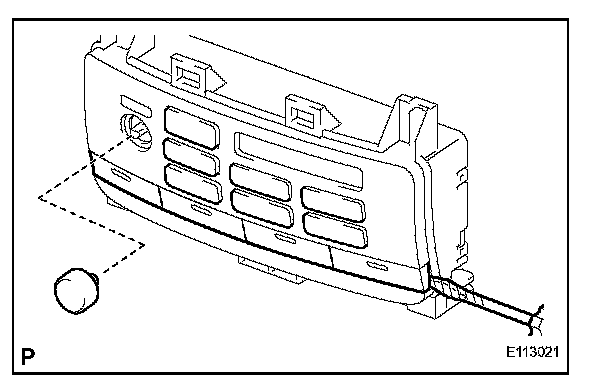

4. REMOVE HEATER CONTROL KNOB (w/o Navigation System)




a. Using a screwdriver, pull out the knobs.

HINT: Tape the screwdriver tip before use.

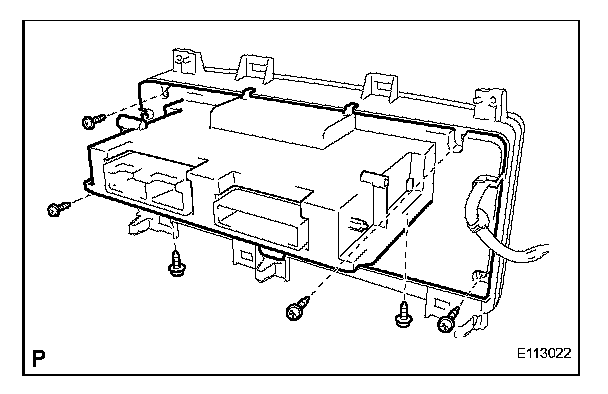

5. REMOVE HEATER CONTROL PANEL (w/o Navigation System)




a. Remove the 6 screws and pull out the A/C amplifier.

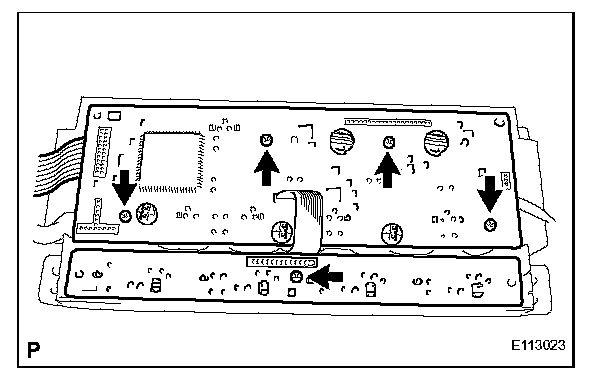

6. REMOVE HEATER CONTROL HOUSING (w/o Navigation System)




a. Remove the 5 screws and board from the heater control housing.

REASSEMBLY
Reassembly is in the reverse order of disassembly.
