Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor:





REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO. 1 ENGINE UNDER COVER
3. REMOVE CRANKSHAFT POSITION SENSOR




a. Disconnect the sensor connector.

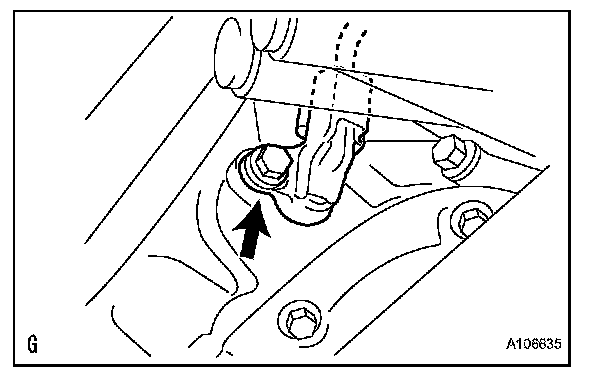

b. Remove the bolt and sensor.

INSTALLATION

1. INSTALL CRANKSHAFT POSITION SENSOR

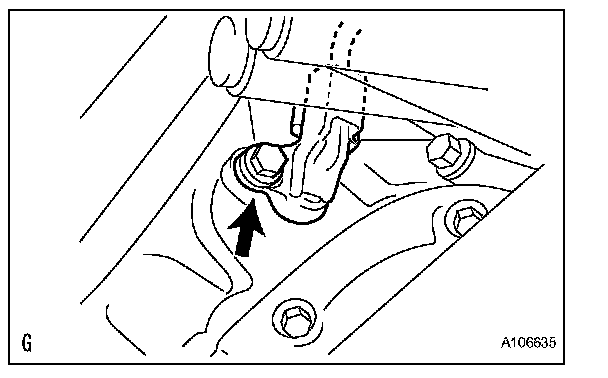

a. Install the sensor with the bolt.

Torque: 6.5 N.m (66 kgf.cm, 57 in.lbf)




b. Connect the sensor connector.

2. INSTALL NO. 1 ENGINE UNDER COVER
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
