Crankshaft Position Sensor: Testing and Inspection
INSPECTION 1.
INSPECT
CRANKSHAFT POSITION SENSOR a.
Measure the resistance between the terminals.

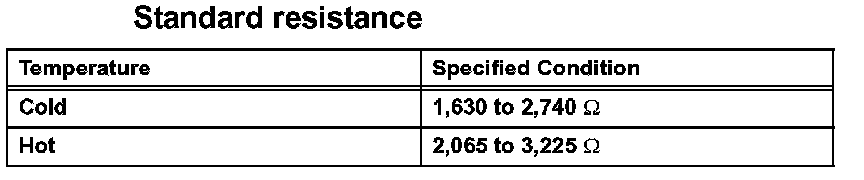

NOTE: In the table above, the terms "cold" and "hot" refer to the temperature of the coils. "Cold" means approximately
-10 to 50 degree C (14 to 122 degree F). "Hot" means approximately
50 to 100 degree C (122 to 212 degree F).
If the result is not as specified, replace the sensor.
