Oxygen Sensor Relay: Testing and Inspection
A/F RELAYON-VEHICLE INSPECTION 1.
REMOVE A/F RELAY (Marking: A/F HTR)
a.
Remove the engine room No. 8 relay block cover.
b.
Remove the relay from the engine room No. 8 relay block.
2.

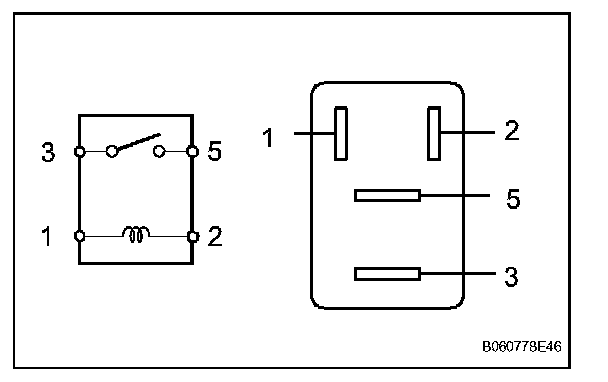

CHECK A/F RELAY
a.

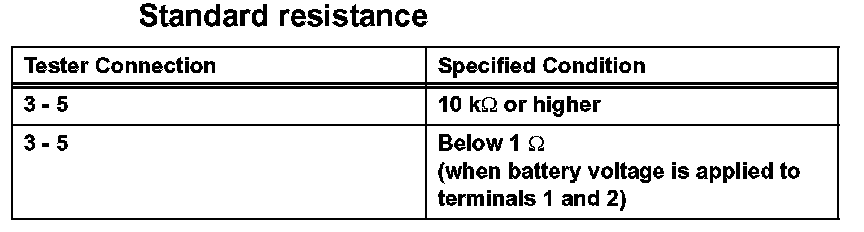

Measure the resistance of the relay.
If the result is not as specified, replace the relay.
3.
INSTALL A/F RELAY
