Power Window Switch: Testing and Inspection
REAR QUARTER WINDOW CONTROL SWITCHINSPECTION 1.

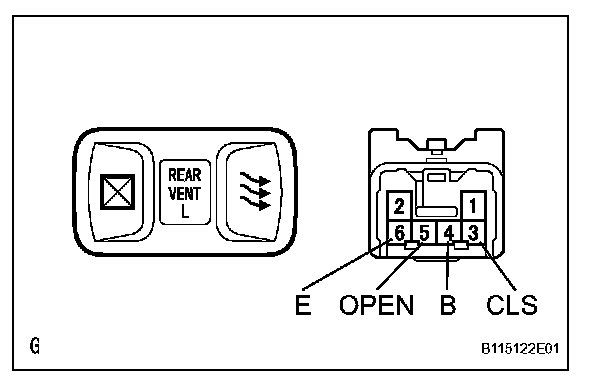

INSPECT REAR QUARTER WINDOW CONTROL SWITCH LH
a.

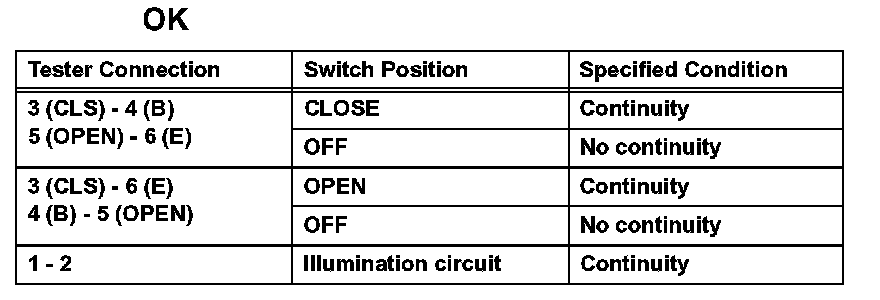

Check the continuity of the switch.
If continuity is not as specified, replace the switch.
2.
INSPECT REAR QUARTER WINDOW CONTROL SWITCH RH
a.

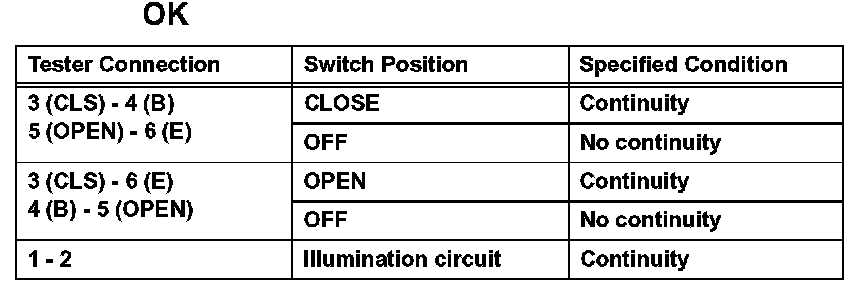

Check the continuity of the switch.
If continuity is not as specified, replace the switch.
