Vehicle Speed Signal Circuit Between Navigation ECU and Multi- Display

Vehicle Speed Signal Circuit between Navigation ECU and Multi- Display

DESCRIPTION

The navigation ECU receives a vehicle speed signal from the multi-display and information about the GPS antenna, and then adjusts vehicle position.

HINT:
- A voltage of 12 V or 5 V is output from each ECU and then input to the combination meter. The signal is changed to a pulse signal at the transistor in the combination meter. Each ECU controls the respective system based on the pulse signal.
- If a short occurs in an ECU, all systems in the diagram will not operate normally.

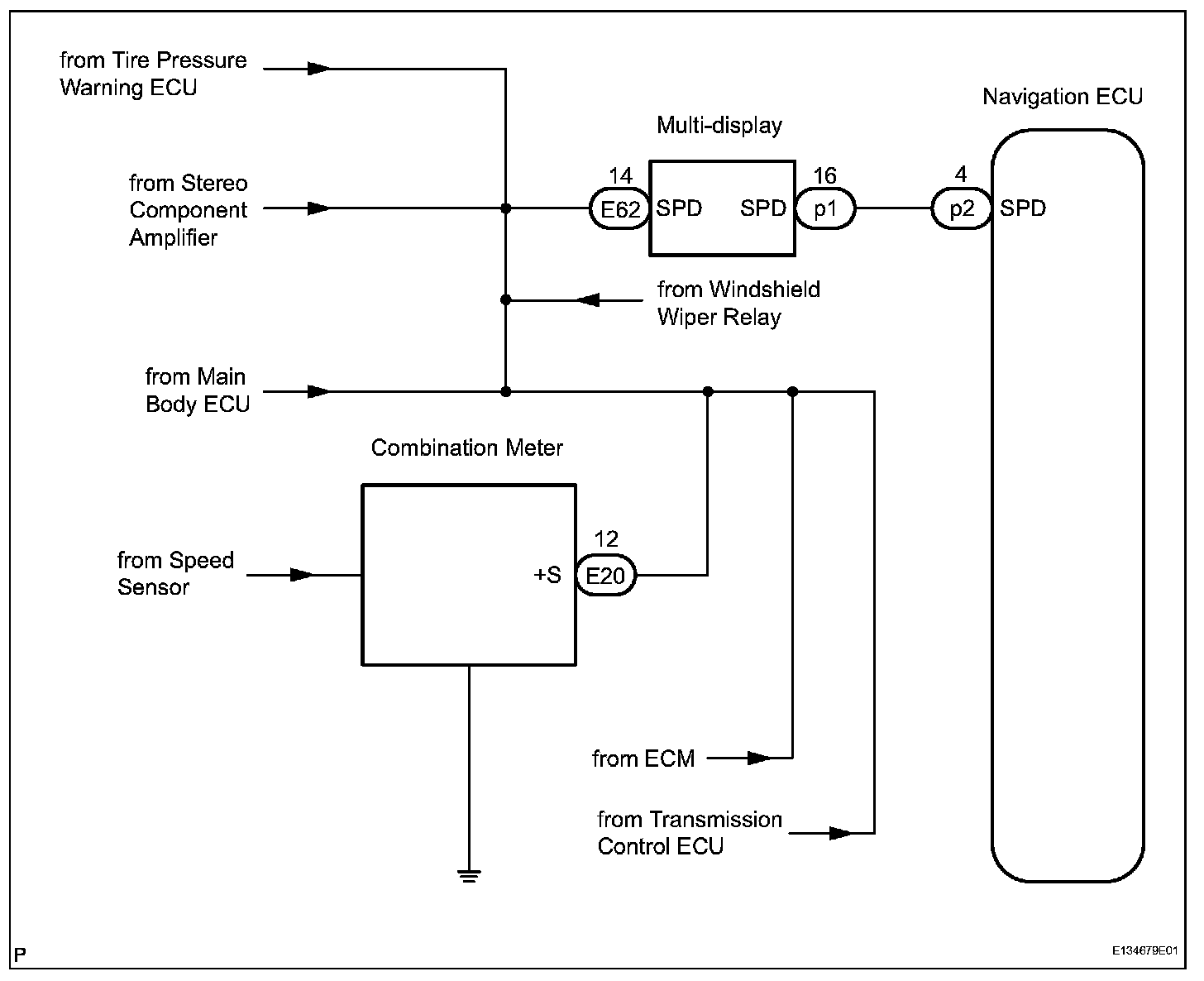

Wiring Diagram:






Step 1-2:




Step 2 (Continued)-3:

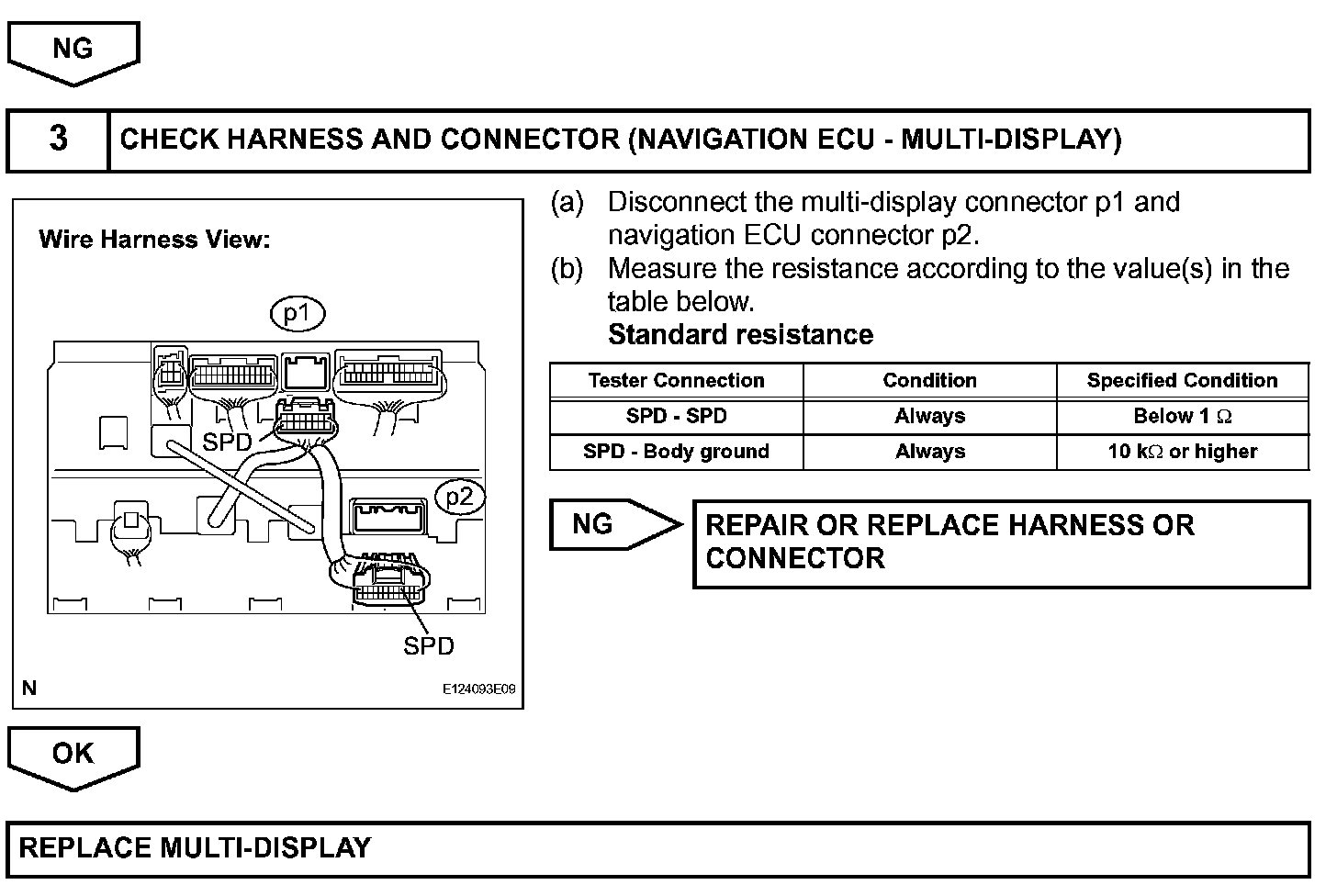

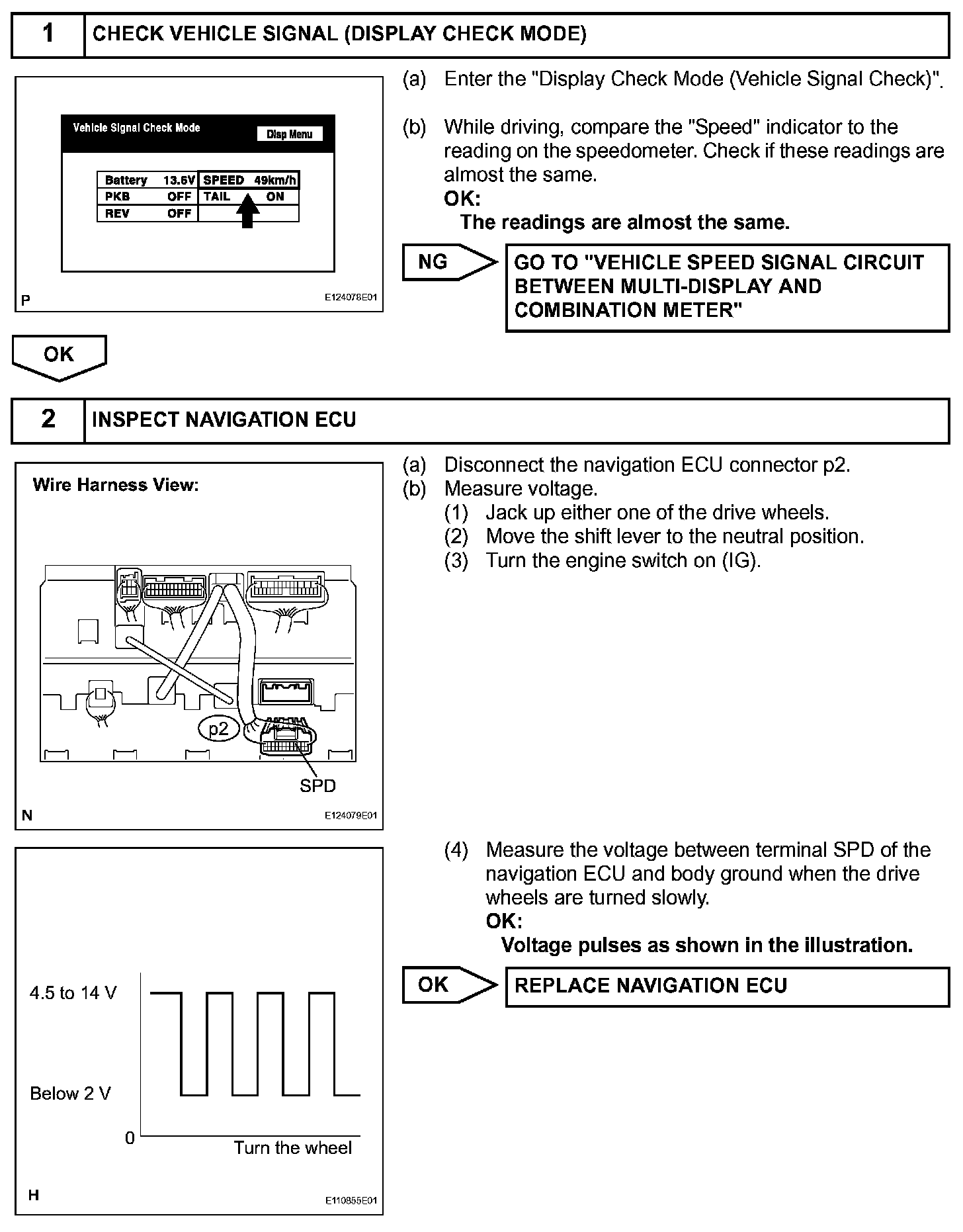

INSPECTION PROCEDURE
