Console Lamp: Service and Repair

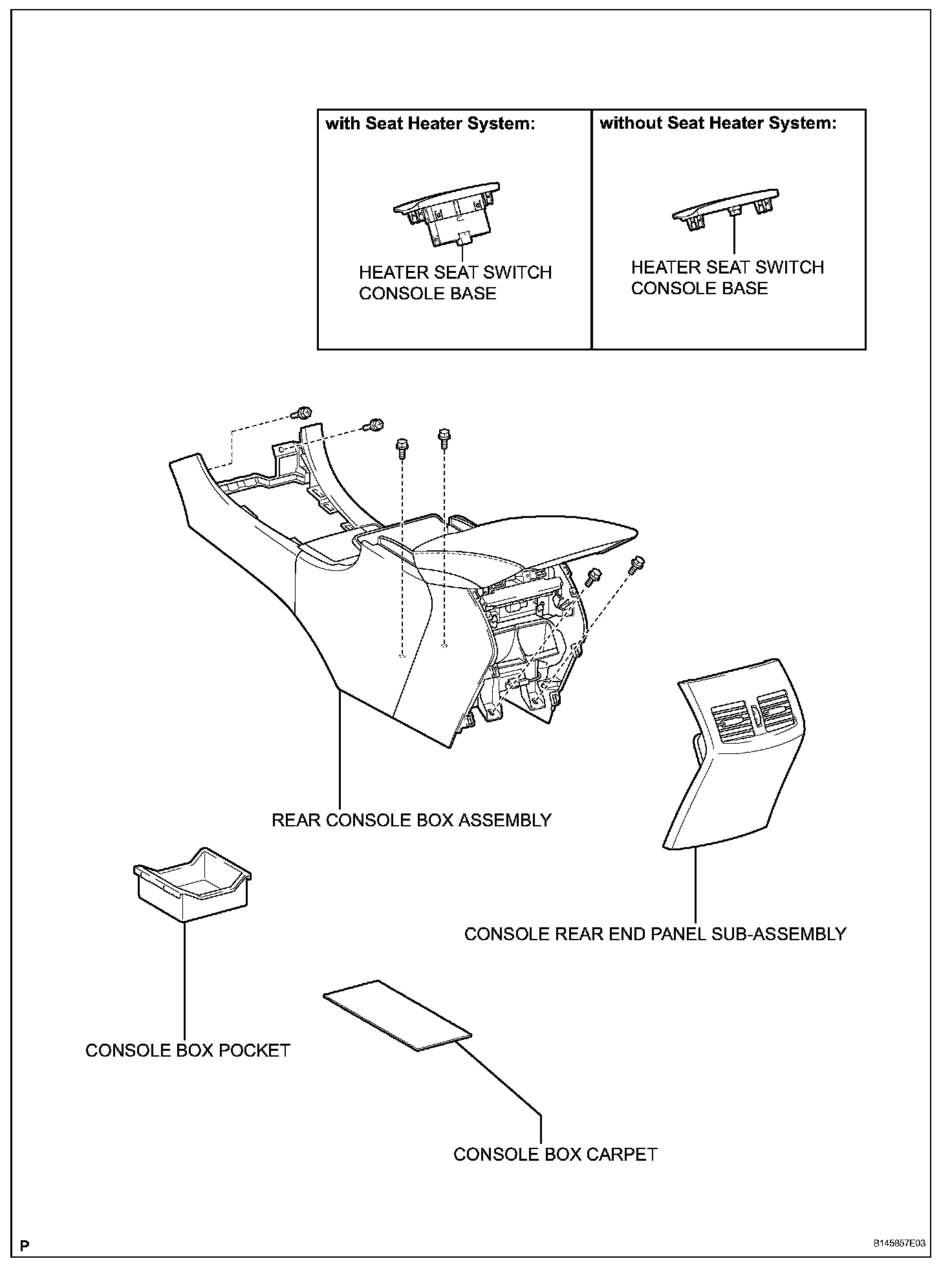

Console Box Light:

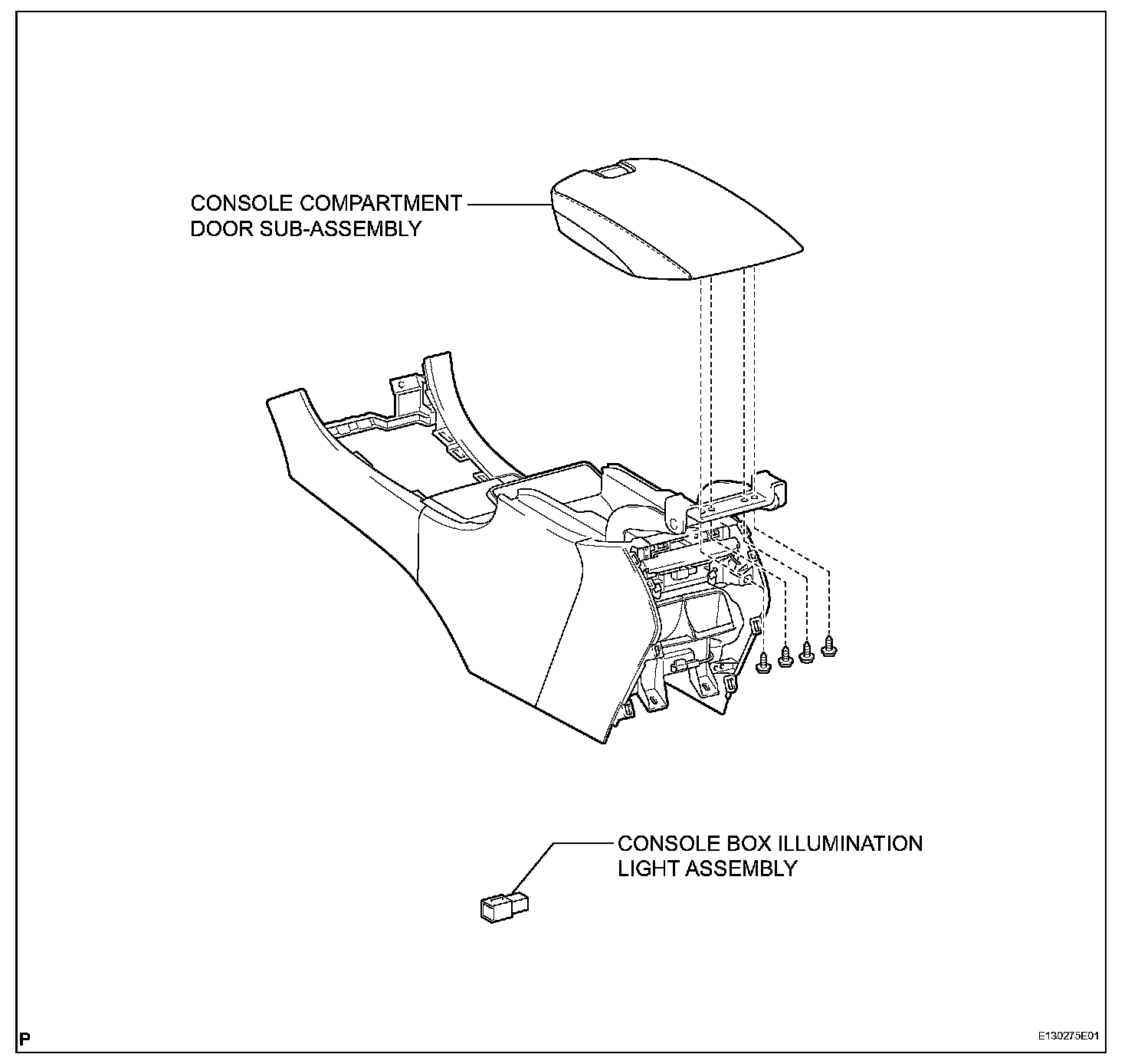

Console Box Light:




Console Box Light:




CONSOLE BOX LIGHT

REMOVAL

1. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
2. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
4. REMOVE UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE
5. REMOVE HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System)
6. REMOVE HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System)
7. REMOVE CONSOLE BOX POCKET
8. REMOVE CONSOLE BOX CARPET
9. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
10. REMOVE REAR CONSOLE BOX ASSEMBLY
11. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
12. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

INSTALLATION

1. INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY
2. INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
3. INSTALL REAR CONSOLE BOX ASSEMBLY
4. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
5. INSTALL CONSOLE BOX CARPET
6. INSTALL CONSOLE BOX POCKET
7. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System)
8. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System)
9. INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE
10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
11. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
12. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
