Touch Sensor Circuit
Touch Sensor CircuitDESCRIPTIONThe touch sensor are built into the door outside handles of the all doors. This circuit receives a signal indicating whether a touch sensor signal is detected.

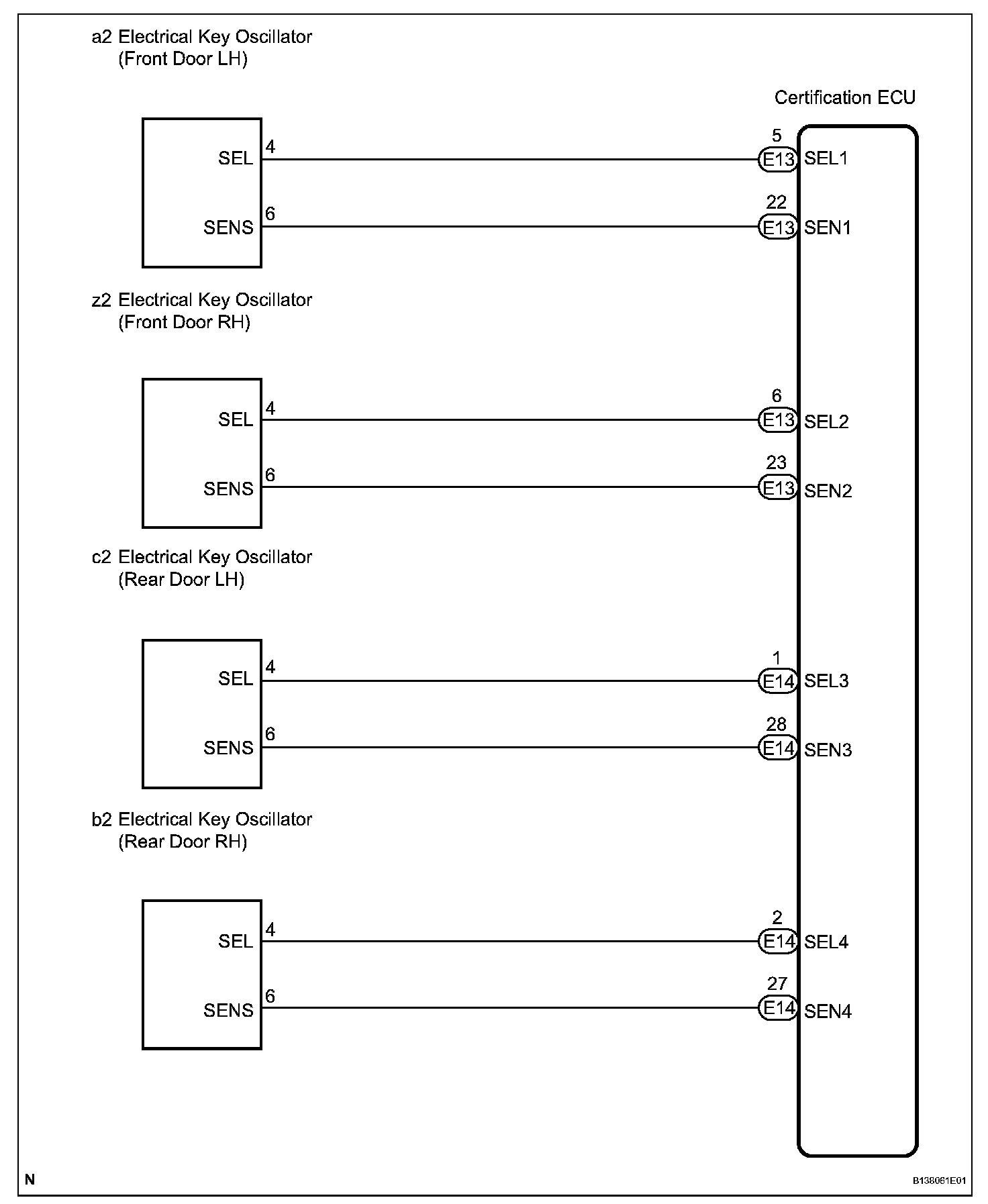

Wiring Diagram:
Step 1:
Step 2-3:
Step 3 (Continued)-4:
Step 4 (Continued):

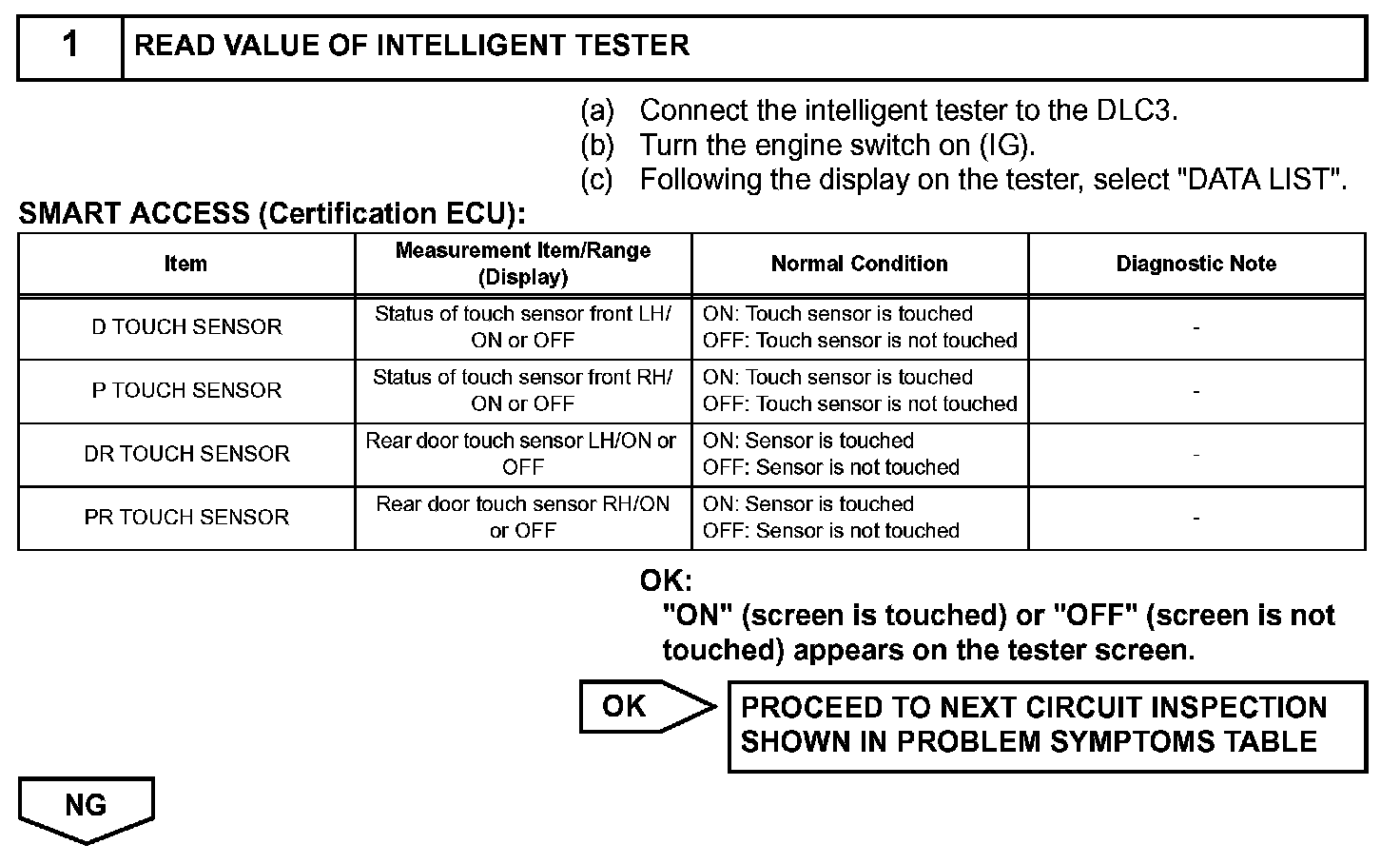

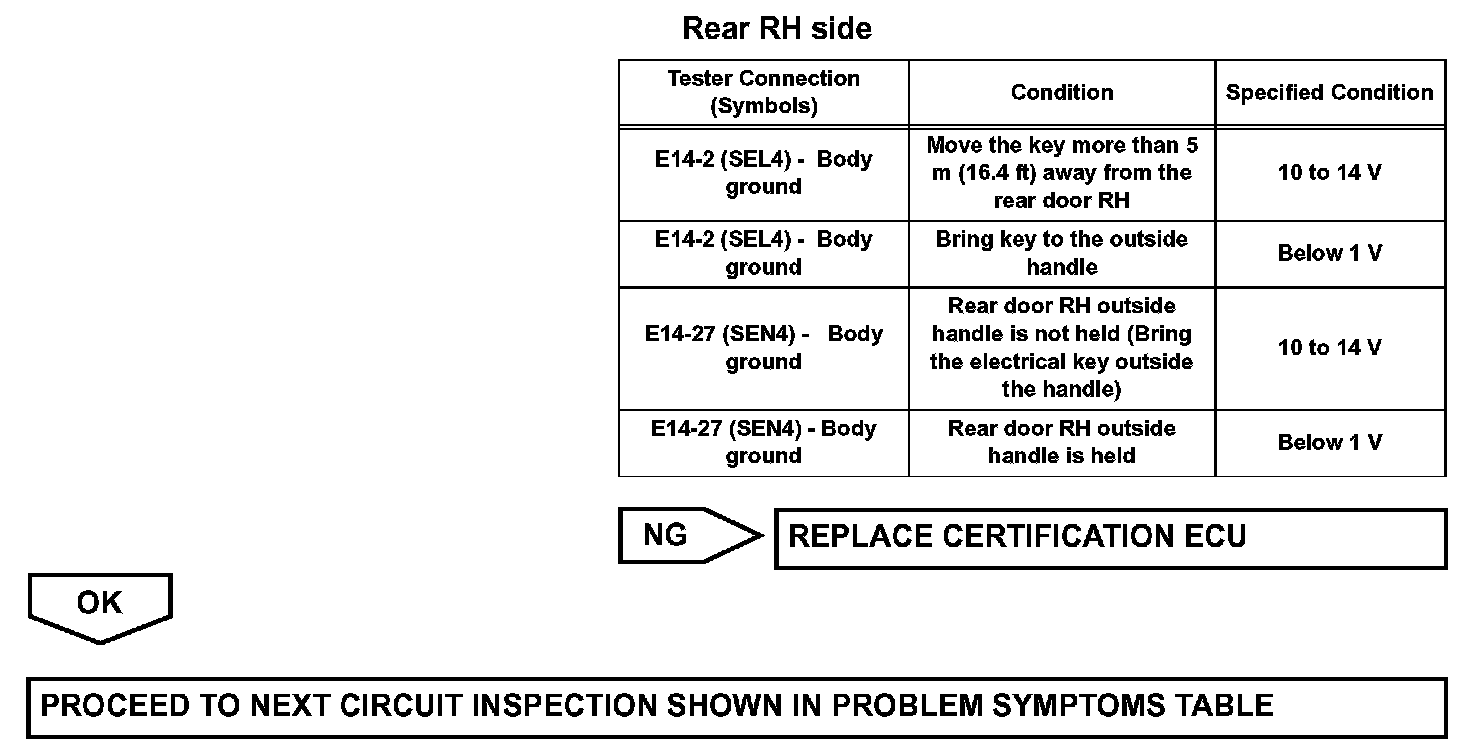

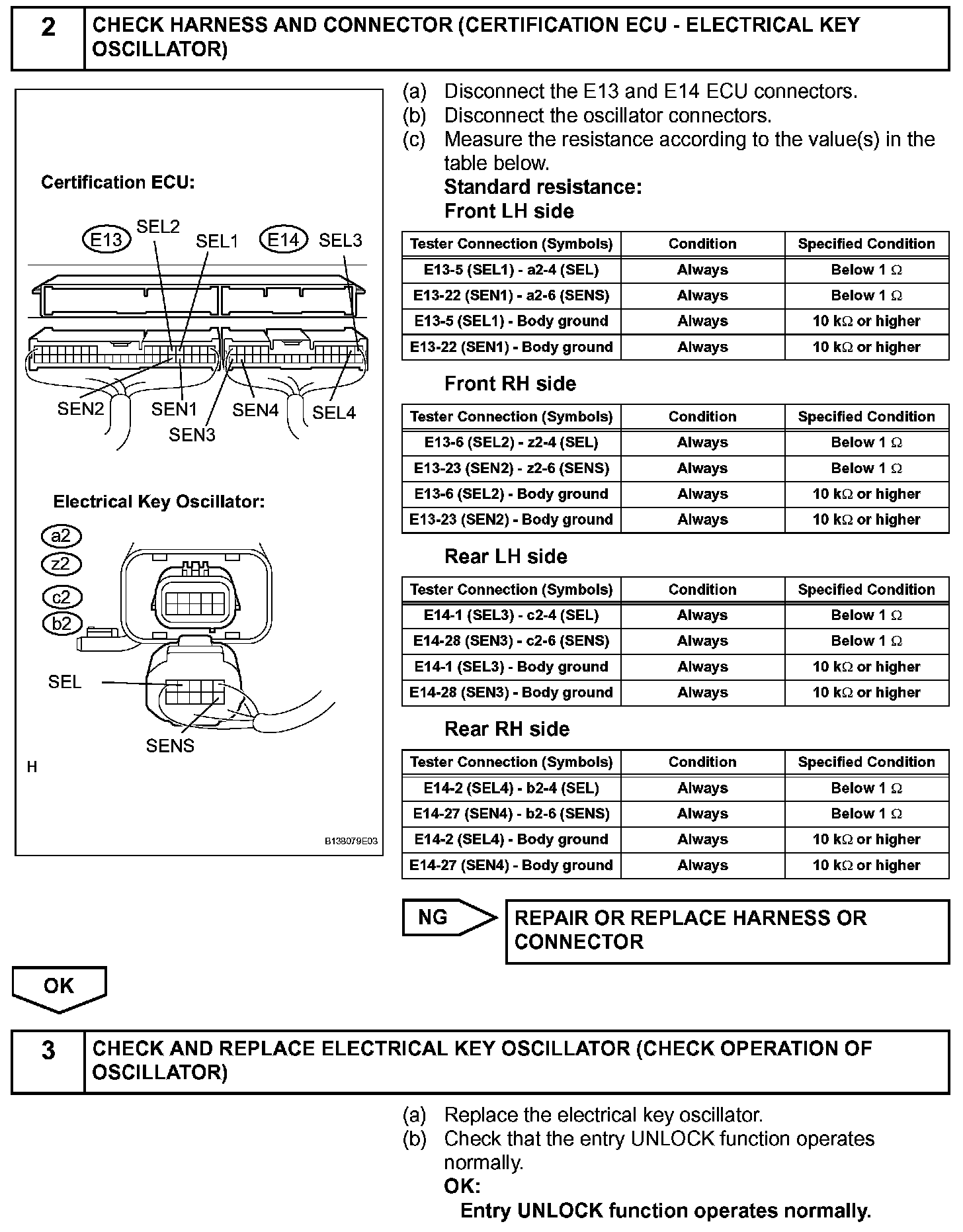

INSPECTION PROCEDURE
