Outer Rear View Mirror

OUTER REAR VIEW MIRROR

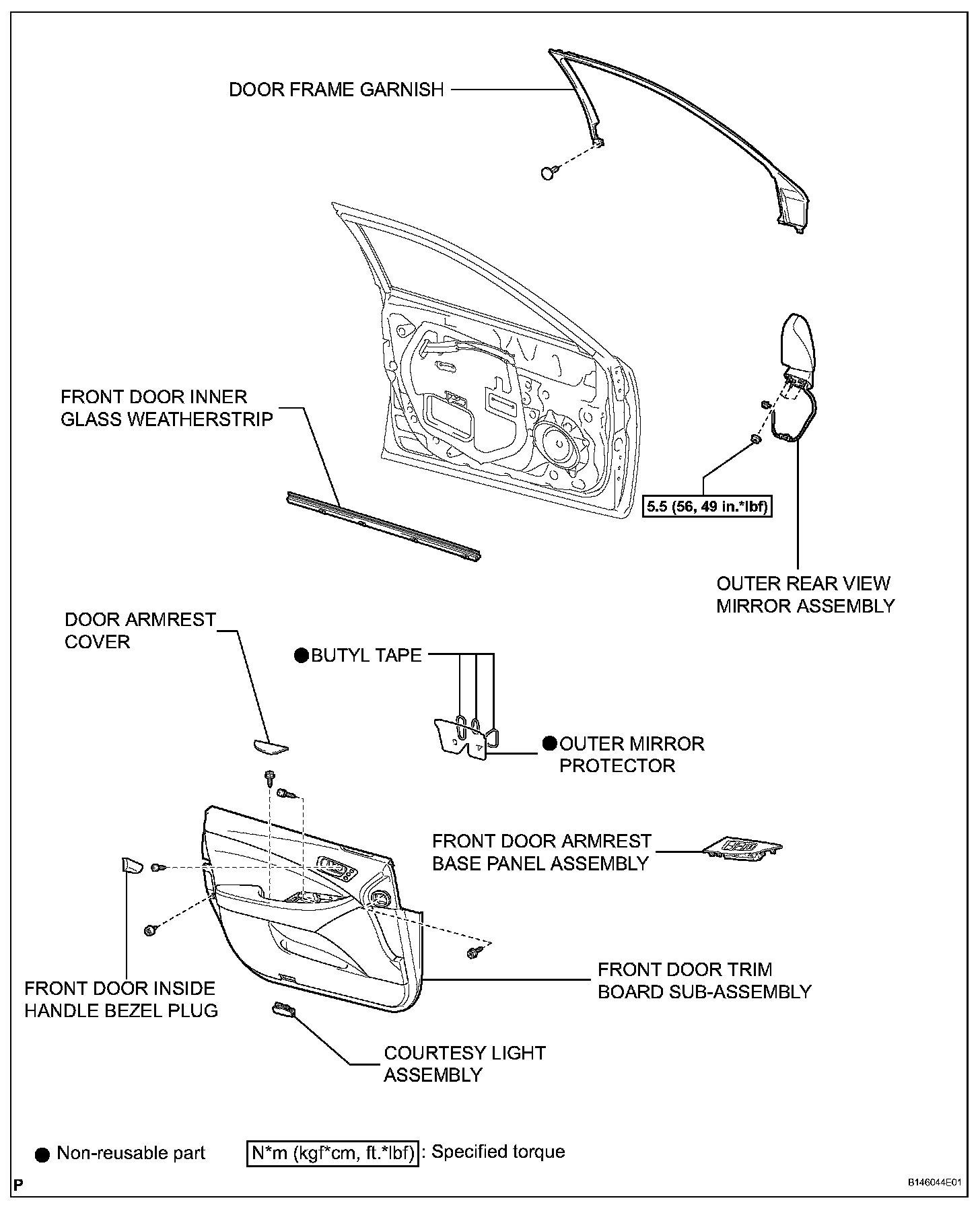

Outer Rear View Mirror:





REMOVAL

1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
2. REMOVE FRONT DOOR ARMREST BASE PANEL ASSEMBLY
3. REMOVE COURTESY LIGHT ASSEMBLY
4. REMOVE DOOR ARMREST COVER
5. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
6. REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP
7. REMOVE DOOR FRAME GARNISH
8. REMOVE OUTER MIRROR PROTECTOR
9. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY





a. Remove the 3 nuts.
b. Disconnect the connector.
c. Disengage the clamp.





d. Disengage the claw and remove the outer rear view mirror assembly.

INSTALLATION

1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY





a. Engage the claw to install the outer rear view mirror assembly.





b. Install the outer rear view mirror assembly with the 3 nuts.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

c. Engage the clamp.
d. Connect the connector.

2. INSTALL OUTER MIRROR PROTECTOR
3. INSTALL DOOR FRAME GARNISH
4. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP
5. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
6. INSTALL DOOR ARMREST COVER
7. INSTALL COURTESY LIGHT ASSEMBLY
8. INSTALL FRONT DOOR ARMREST BASE PANEL ASSEMBLY
9. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
