Cruise Control Switch: Service and Repair

CRUISE CONTROL MAIN SWITCH

REMOVAL

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE STEERING WHEEL COVER LOWER NO. 2
3. REMOVE STEERING WHEEL COVER LOWER NO. 3
4. REMOVE STEERING PAD SWITCH ASSEMBLY
5. REMOVE CRUISE CONTROL MAIN SWITCH




a. Disconnect the connectors.

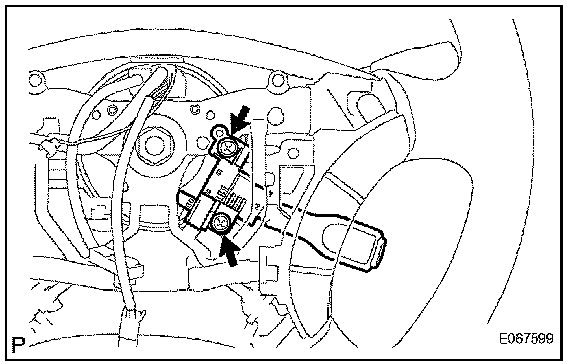

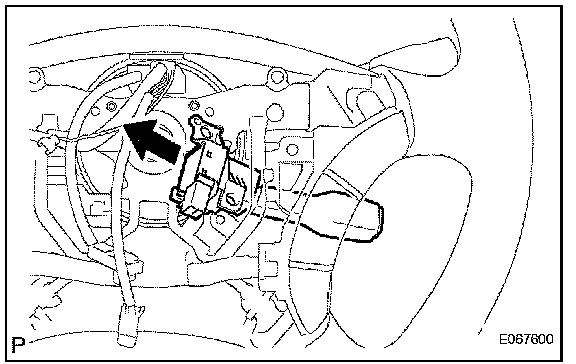

b. Remove the 2 screws and cruise control main switch.

INSTALLATION

1. INSTALL CRUISE CONTROL MAIN SWITCH




a. Connect the connector.
b. Install the 2 screws and cruise control main switch.

2. INSTALL STEERING PAD SWITCH
3. INSPECT STEERING PAD SWITCH
4. INSPECT SRS WARNING LIGHT
