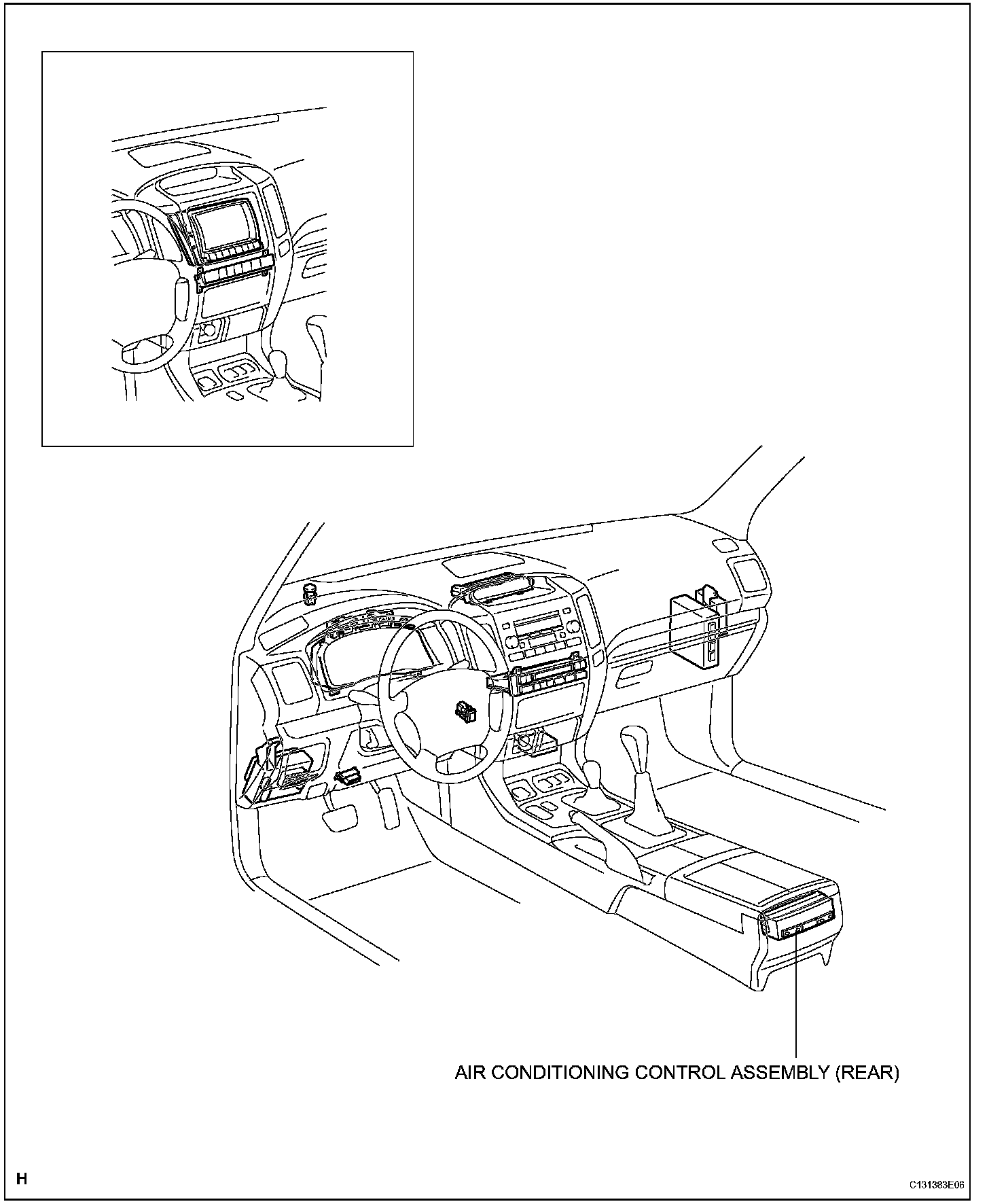

Air Conditioning Control Assembly (W/ Rear Cooler)

Air Conditioning Control Assembly (w/ Rear Cooler):




AIR CONDITIONING CONTROL ASSEMBLY (W/ REAR COOLER)

REMOVAL

1. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY
2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY




a. Remove the 2 screws and the air conditioner control assembly.

INSTALLATION

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY




a. Install the air conditioning control assembly with the 2 screws.

2. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY
