Air Conditioning Control Assembly

Air Conditioning Control Assembly:

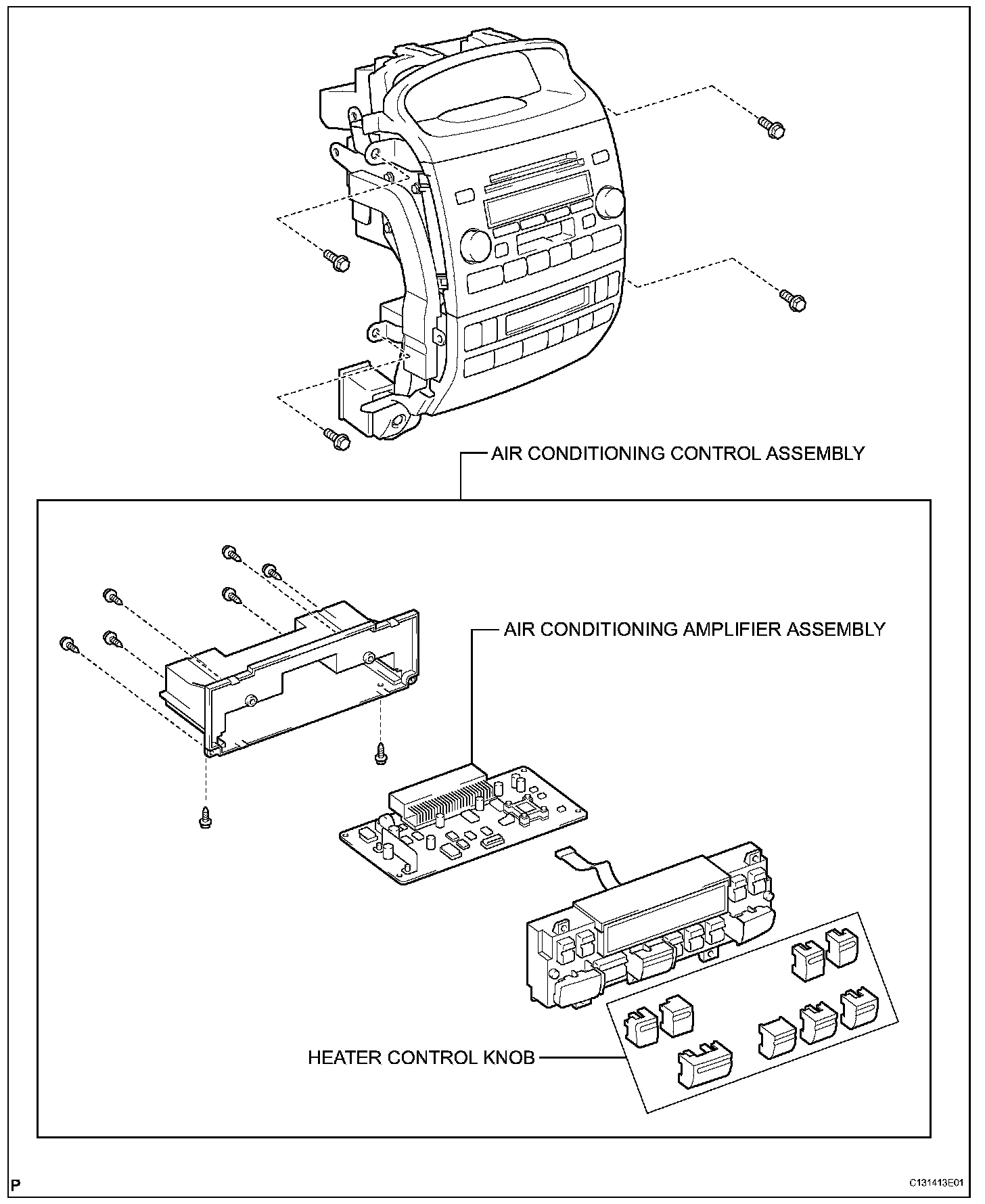

AIR CONDITIONING CONTROL ASSEMBLY

REMOVAL

1. REMOVE INSTRUMENT PANEL GARNISH SUBASSEMBLY LH
2. REMOVE INSTRUMENT PANEL GARNISH SUBASSEMBLY RH
3. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

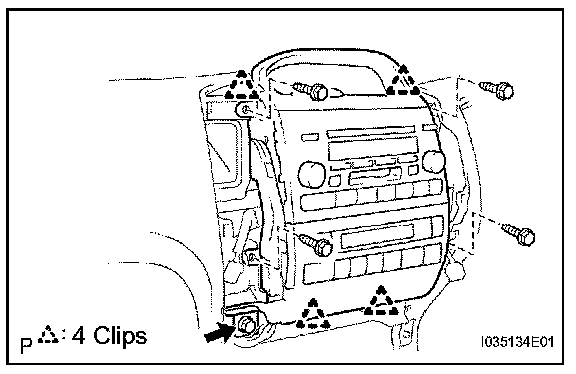

a. Loosen the bolt and remove the 4 bolts, the 4 clips and the integration control and panel assembly.

4. REMOVE RADIO BRACKET NO. 1
5. REMOVE RADIO BRACKET NO. 2
6. REMOVE RADIO RECEIVER ASSEMBLY (w/ Navigation System)
7. REMOVE AIR CONDITIONING CONTROL ASSEMBLY




a. Remove the 4 screws and the air conditioning control assembly.

INSTALLATION

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY




a. Install the air conditioning control assembly with the 4 screws.

2. INSTALL RADIO RECEIVER ASSEMBLY (w/ Navigation System)
3. INSTALL RADIO BRACKET NO. 2
4. INSTALL RADIO BRACKET NO. 1
5. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY

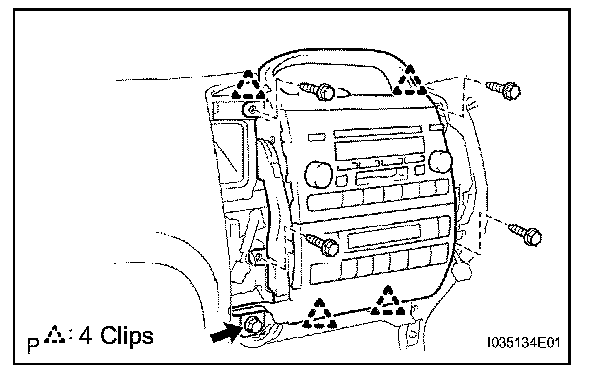

a. Install the integration control and panel assembly with the 4 clips and the 4 bolts. Tighten the bolt.

6. INSTALL INSTRUMENT PANEL GARNISH SUBASSEMBLY RH
7. INSTALL INSTRUMENT PANEL GARNISH SUBASSEMBLY LH
