Tire Pressure Module: Service and Repair

TIRE PRESSURE WARNING ECU

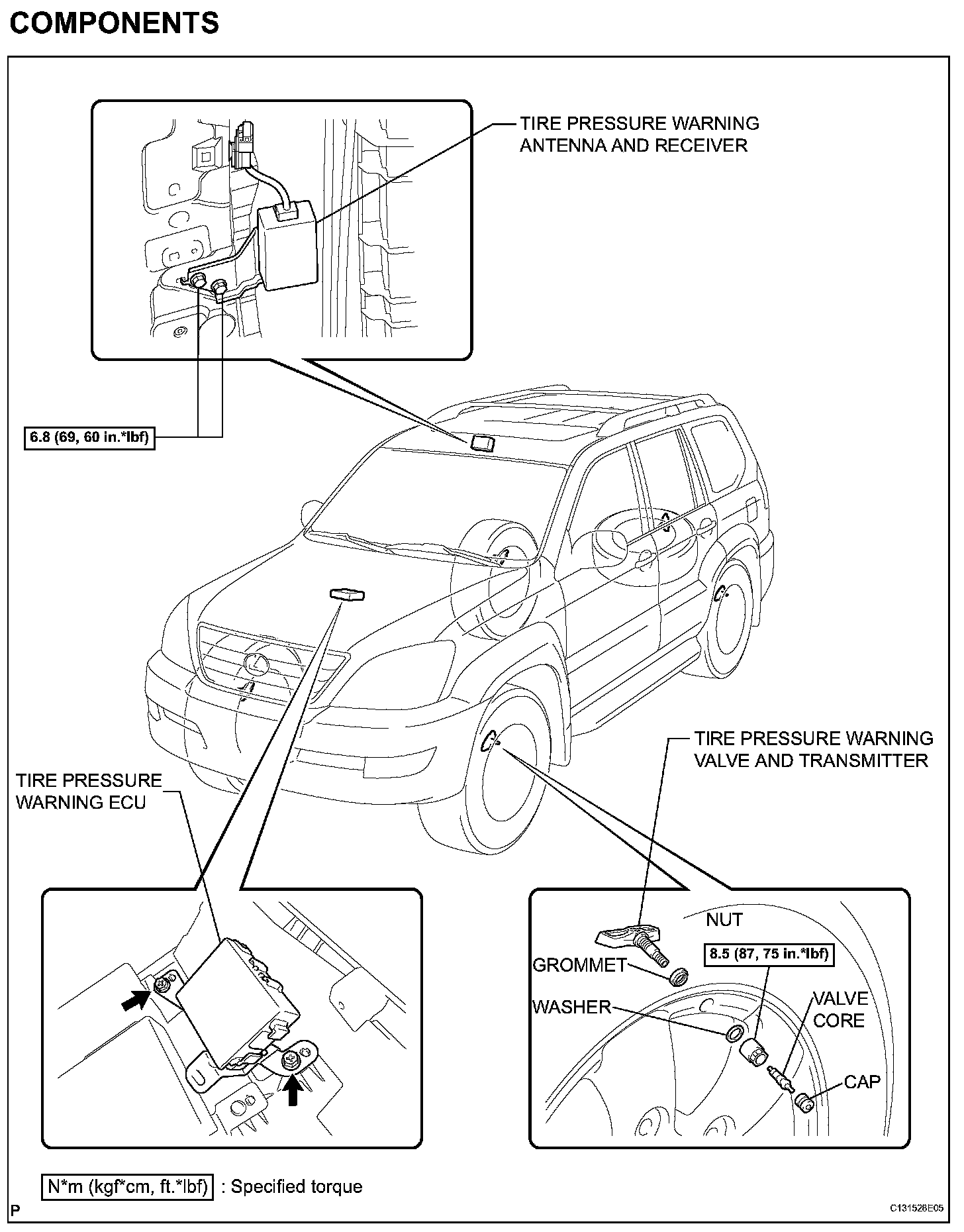

COMPONENTS (Part 1):

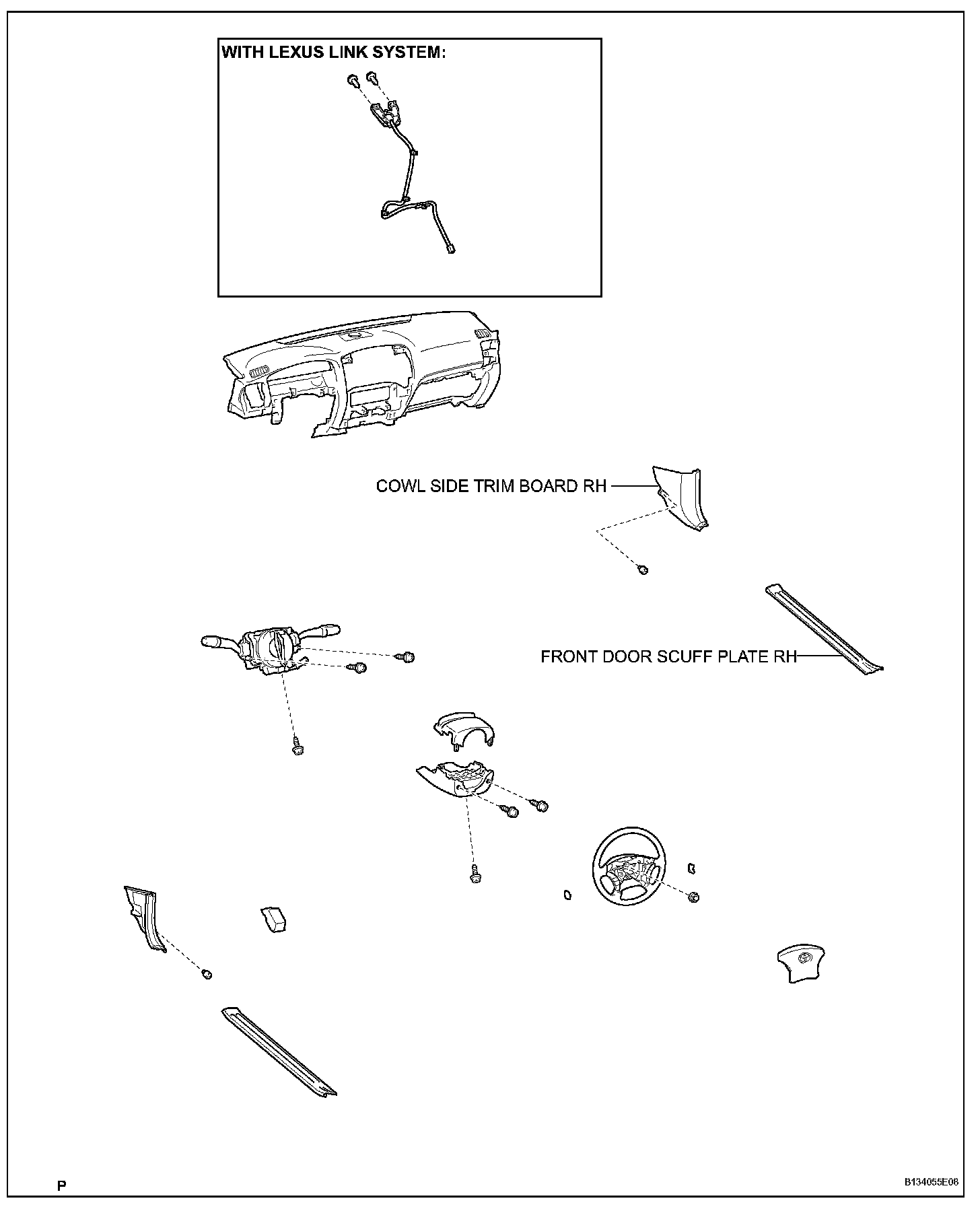

COMPONENTS (Part 2):

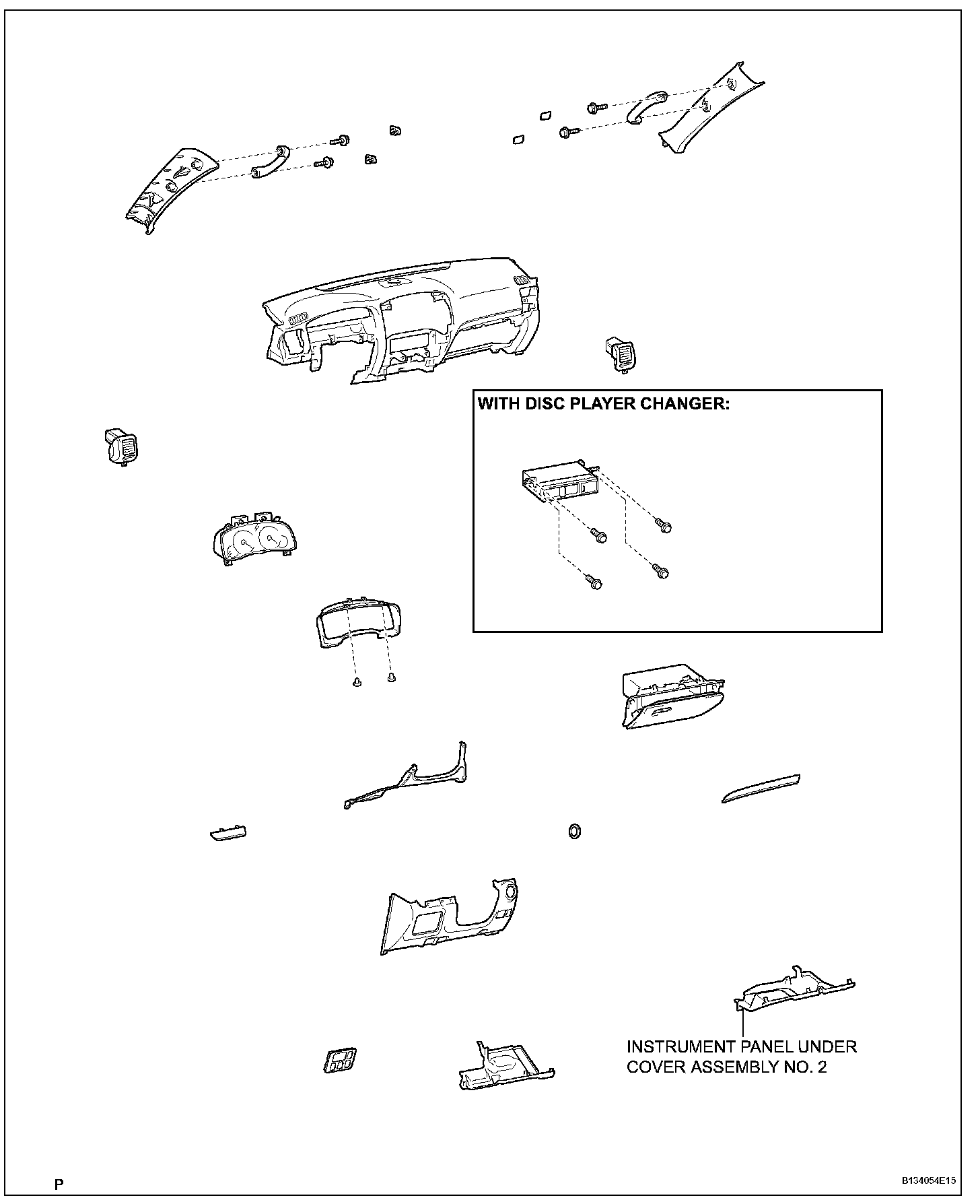

COMPONENTS (Part 3):





REMOVAL
1. DISCONNECT BATTERY NEGATIVE TERMINAL
(a) Disconnect the negative terminal.
2. REMOVE FRONT DOOR SCUFF PLATE RH
3. REMOVE COWL SIDE TRIM BOARD RH
4. REMOVE INSTRUMENT PANEL UNDER COVER ASSEMBLY NO. 2

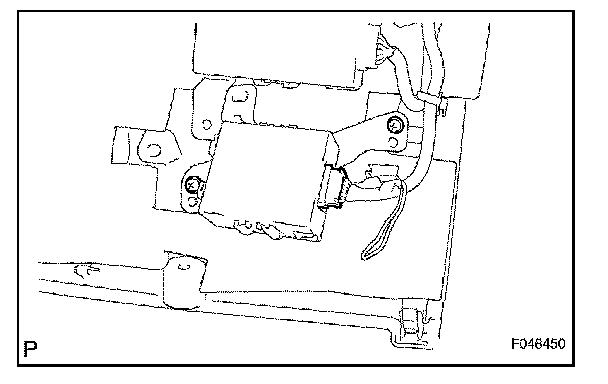

5. REMOVE TIRE PRESSURE WARNING ECU
(a) Disconnect the connector.
(b) Remove the 2 screws and tire pressure warning ECU.

INSTALLATION

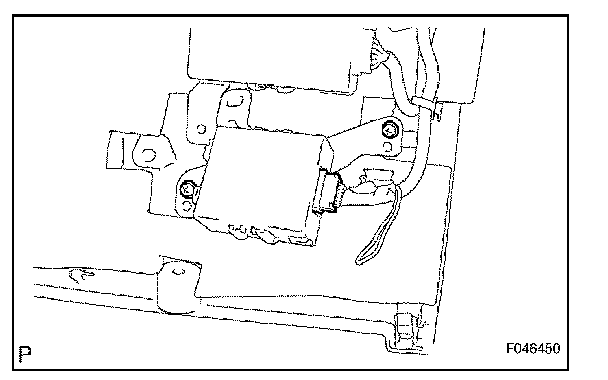

1. INSTALL TIRE PRESSURE WARNING ECU
(a) Install the tire pressure warning ECU with the 2 screws.
(b) Connect the connector.
2. INSTALL INSTRUMENT PANEL UNDER COVER ASSEMBLY NO. 2
3. INSTALL COWL SIDE TRIM BOARD RH
4. INSTALL FRONT DOOR SCUFF PLATE RH
5. CONNECT BATTERY NEGATIVE TERMINAL
6. REGISTRATION OF TRANSMITTER ID
