Power Outlet Socket

Power Outlet Socket:




Power Outlet Socket:




POWER OUTLET SOCKET

REMOVAL

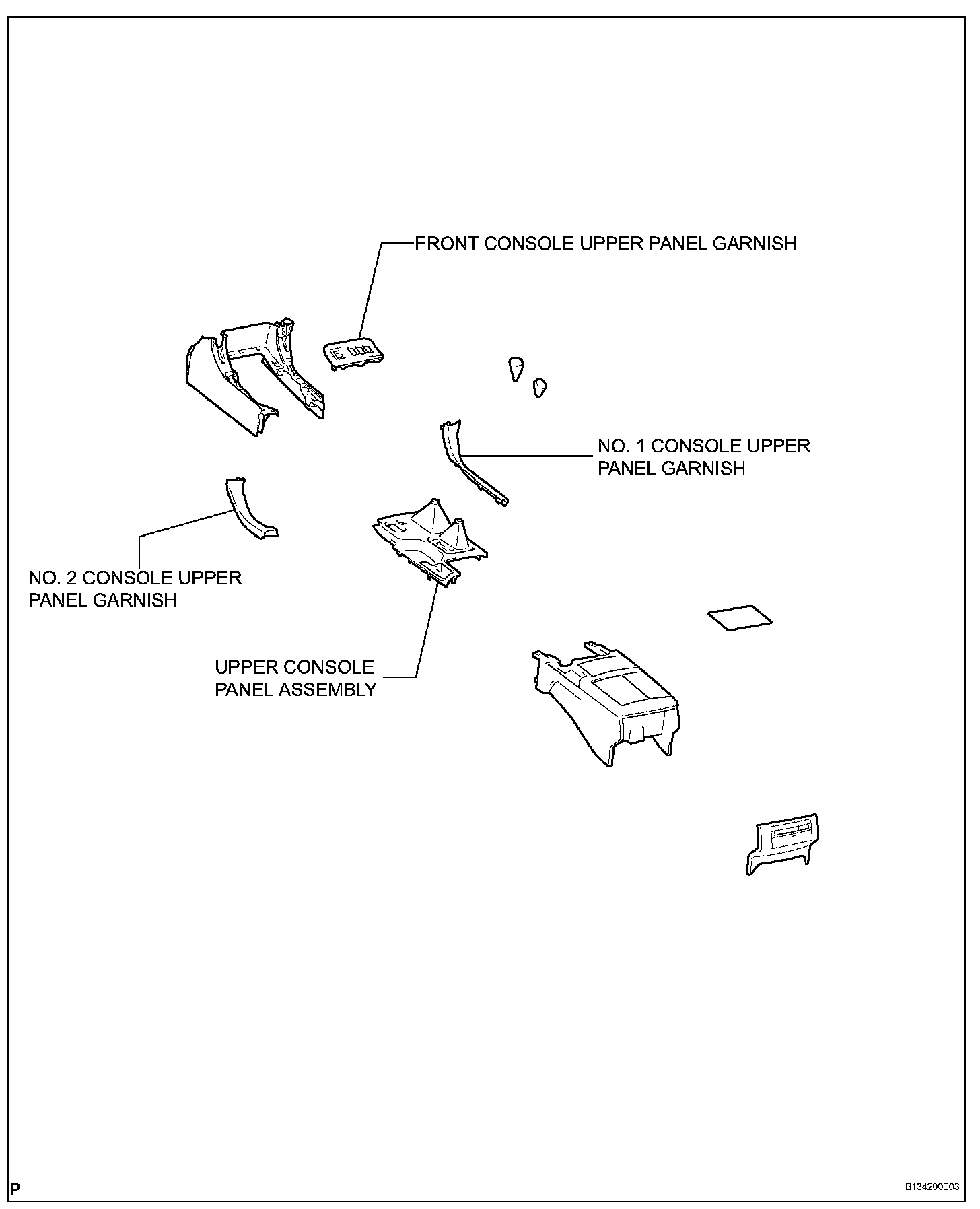

1. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH
2. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH
3. REMOVE UPPER CONSOLE PANEL ASSEMBLY
4. REMOVE FRONT CONSOLE UPPER PANEL GARNISH

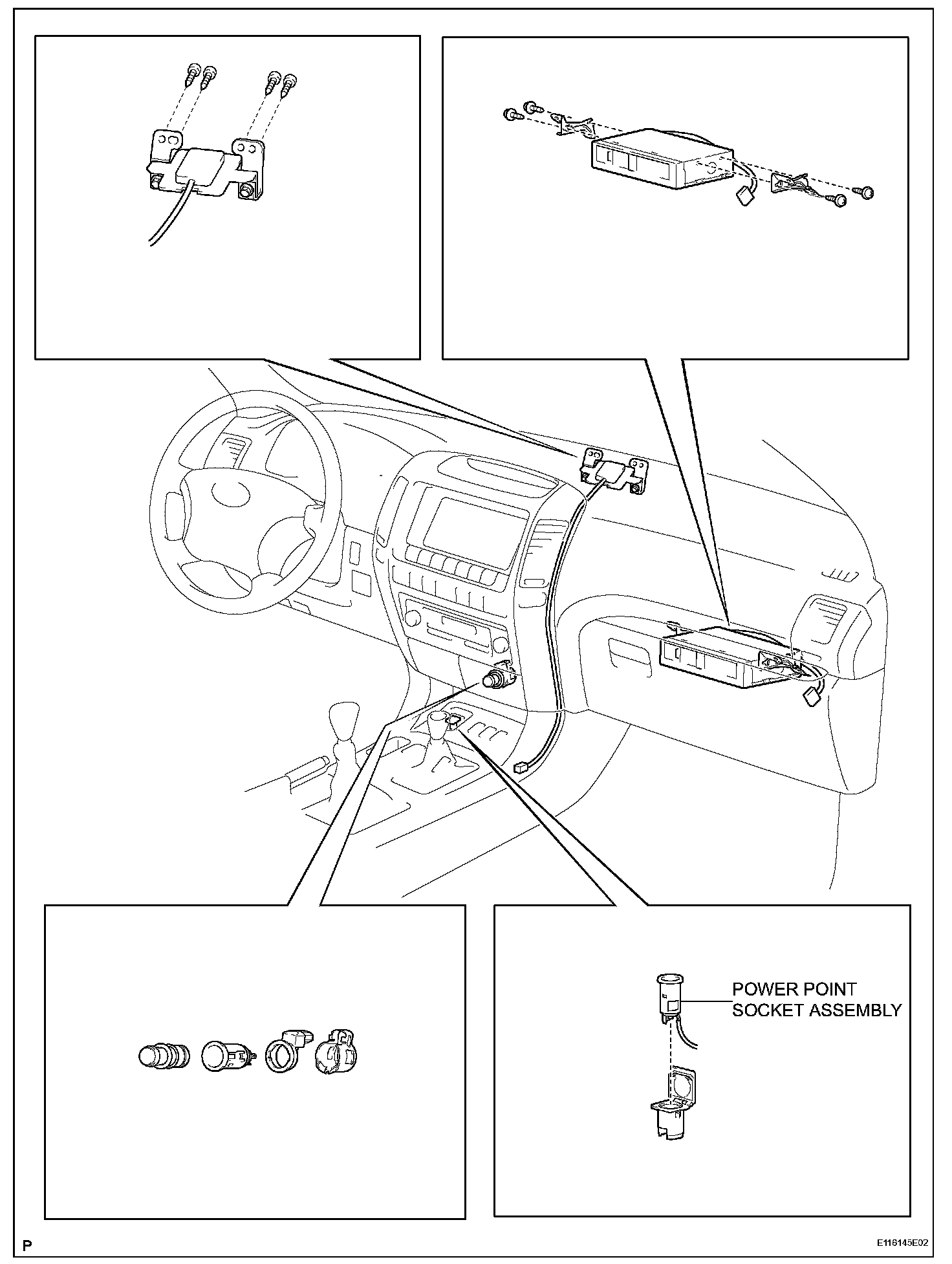

5. REMOVE POWER POINT SOCKET ASSEMBLY




a. Pressing the claw of the power point socket assembly in the direction of the arrow, push the power point socket assembly toward the room side to remove it.

INSTALLATION

1. INSTALL POWER POINT SOCKET ASSEMBLY
a. Align the claw of the power point socket assembly with the cutout of the power point socket cover and fully push it to install.

2. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
3. INSTALL UPPER CONSOLE PANEL ASSEMBLY
4. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH
5. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH
