Transmission Speed Sensor: Service and Repair

SPEED SENSOR

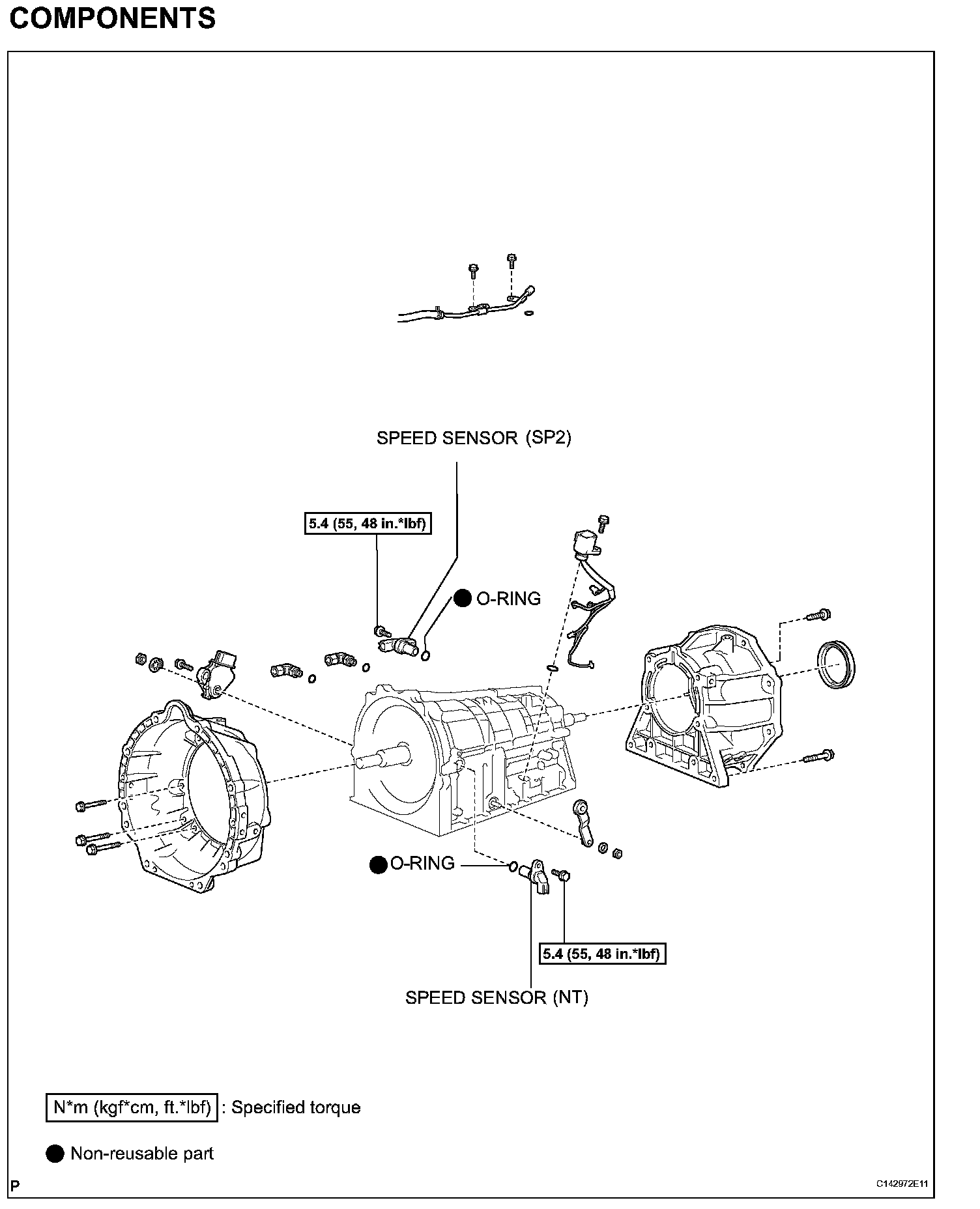

COMPONENTS:





REMOVAL





1. REMOVE SPEED SENSOR
(a) Disconnect the connector.
(b) Remove the bolt and speed sensor.

INSPECTION





1. INSPECT SPEED SENSOR (NT SENSOR)
(a) Disconnect the speed sensor connector from the transmission.
(b) Measure the resistance according to the value(s) in the table.

Standard resistance:








2. INSPECT SPEED SENSOR (SP2 SENSOR)
(a) Disconnect the speed sensor connector from the transmission.
(b) Measure the resistance according to the value(s) in the table.

Standard resistance:





INSTALLATION





1. INSTALL SPEED SENSOR
(a) Coat a new O-ring with ATF.
(b) Install the speed sensor with the bolt.
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
(c) Connect the connector.
