Manual Up / Down Function Does Not Operate on Driver Side
Manual Up / Down Function Does Not Operate On Driver SideDESCRIPTIONIf the manual UP/DOWN function does not operate, the
power window motor, the power window master switch or the wire harness may be abnormal.
WIRING DIAGRAMWiring Diagram:
INSPECTION PROCEDUREStep 1:

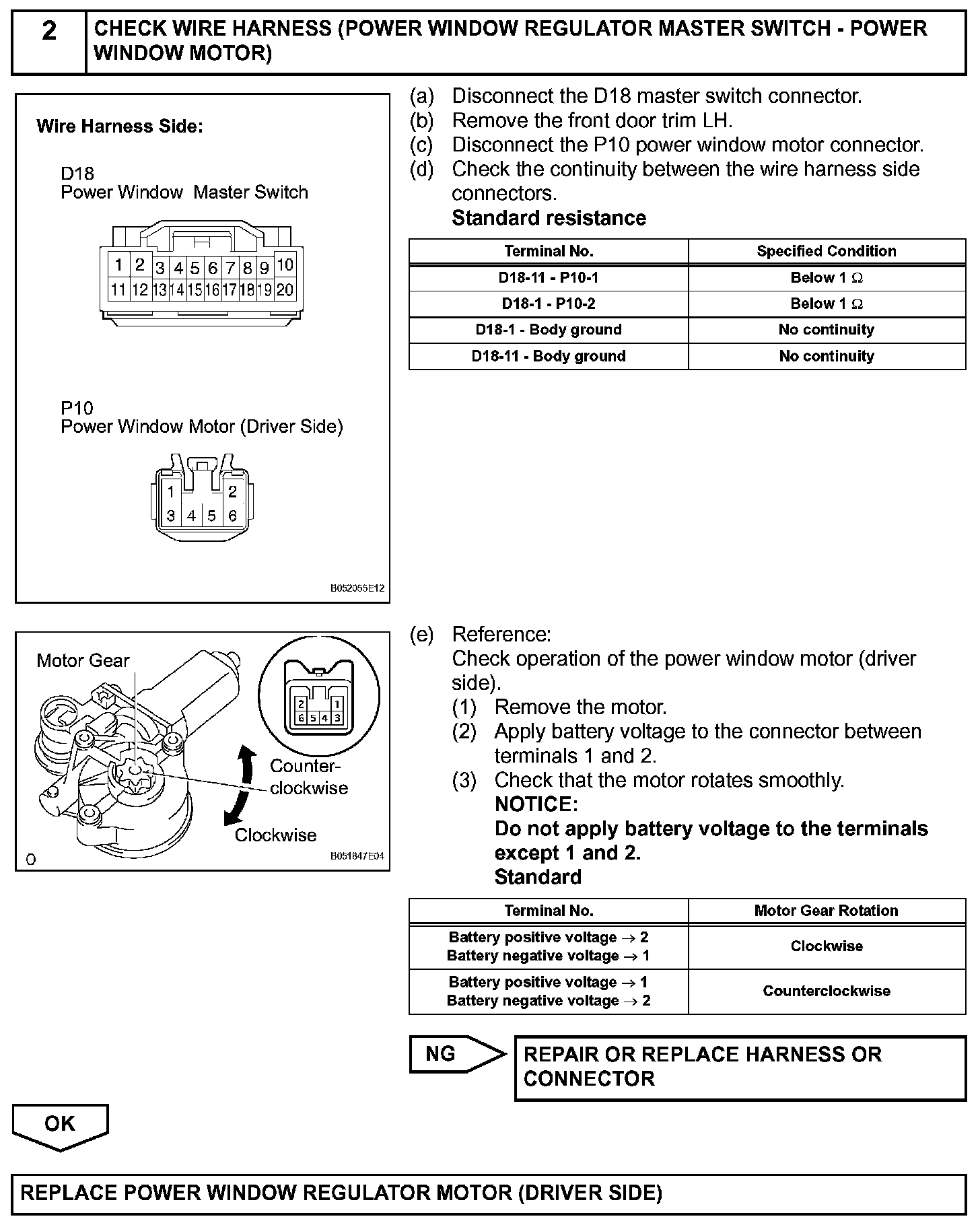

Step 2:

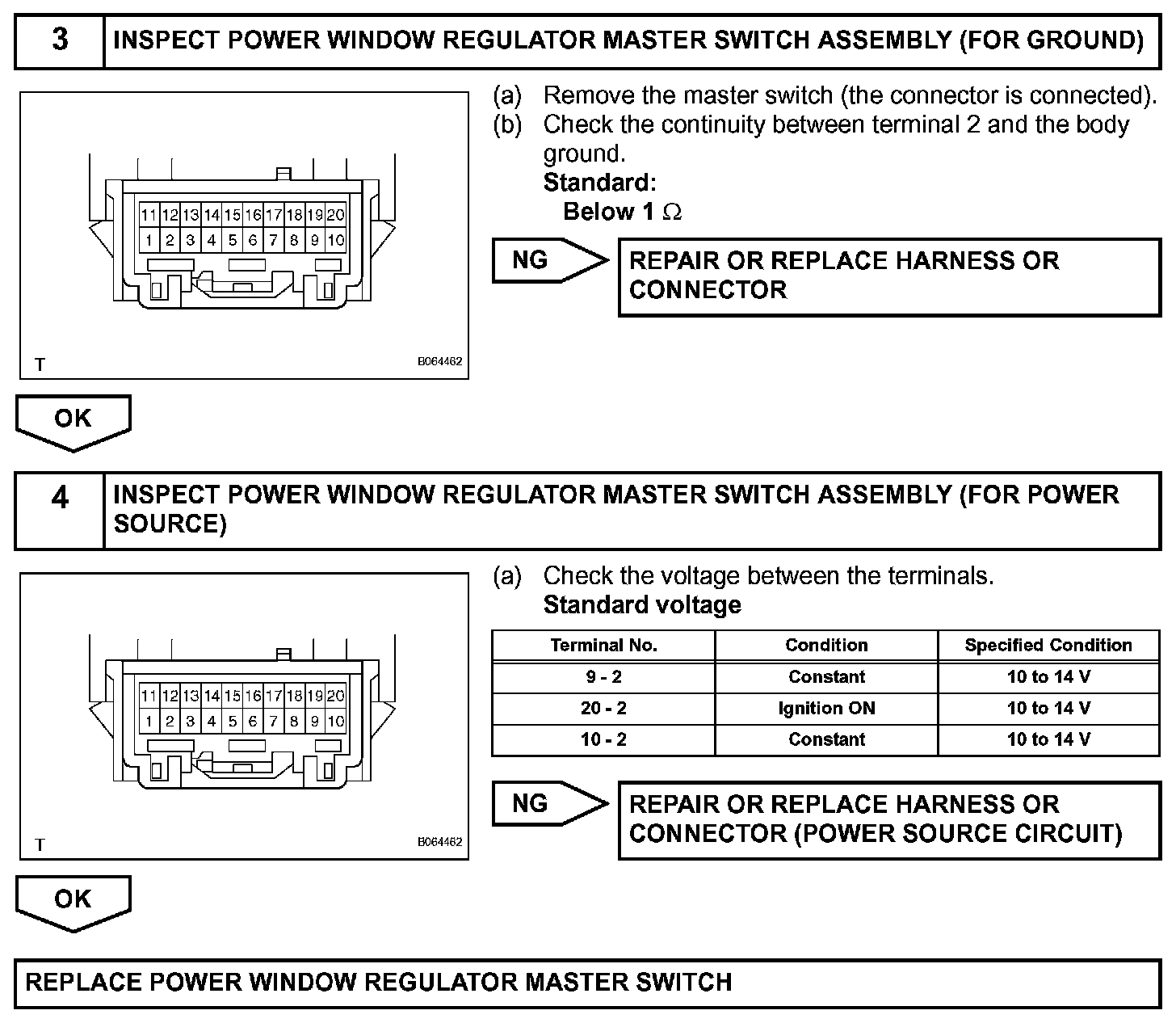

Step 3 - 4:
