Remote Up / Down Function Does Not Operate

Remote Up / Down Function Does Not Operate

DESCRIPTION
If the remote control does not operate, the remote function may have been disables by a malfunction that was detected in the power window circuit. Also, when any power window switch or the wire harness has a malfunction, the remote control for the applicable power window does not function.

WIRING DIAGRAM

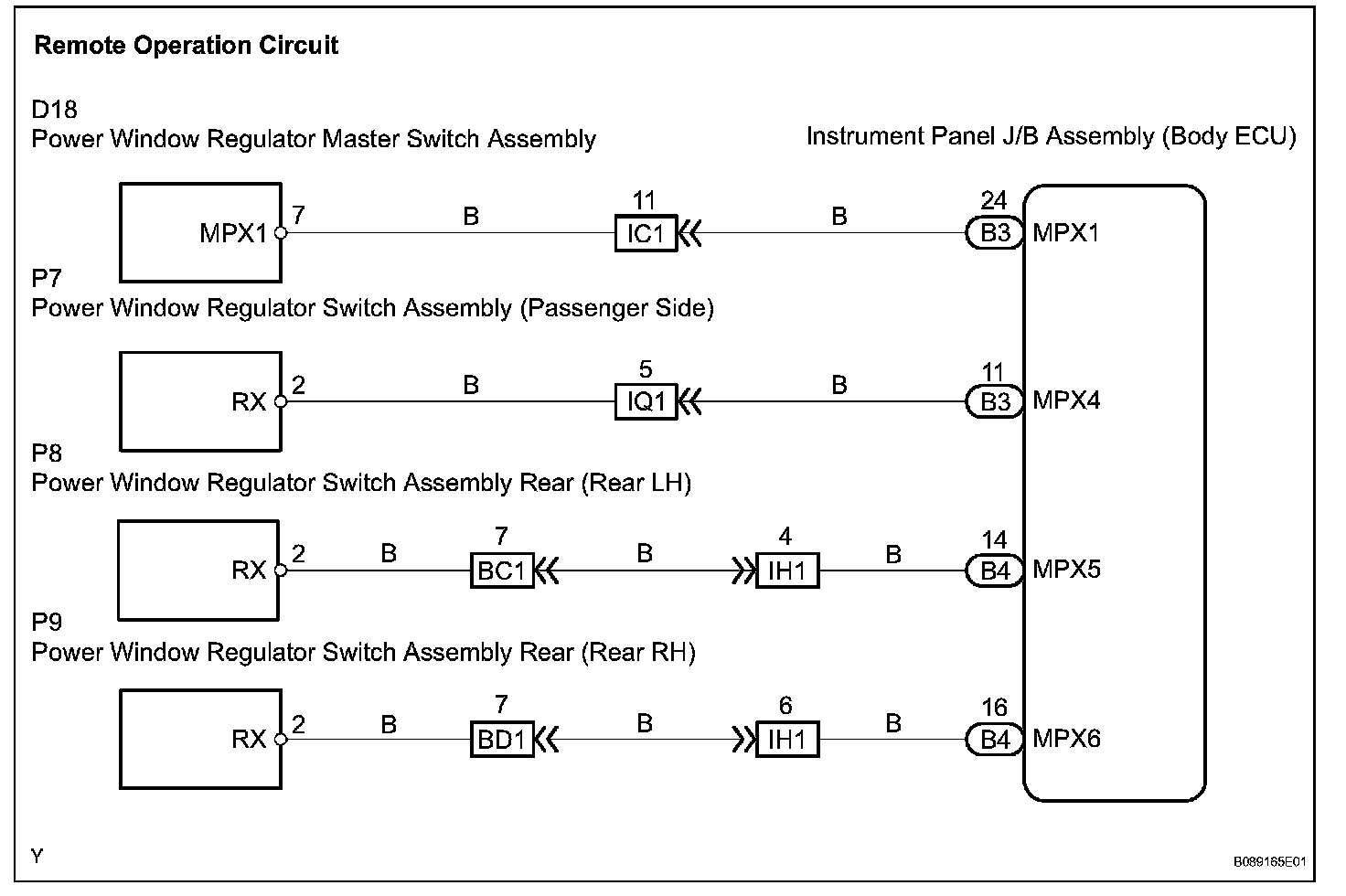

Wiring Diagram:

INSPECTION PROCEDURE

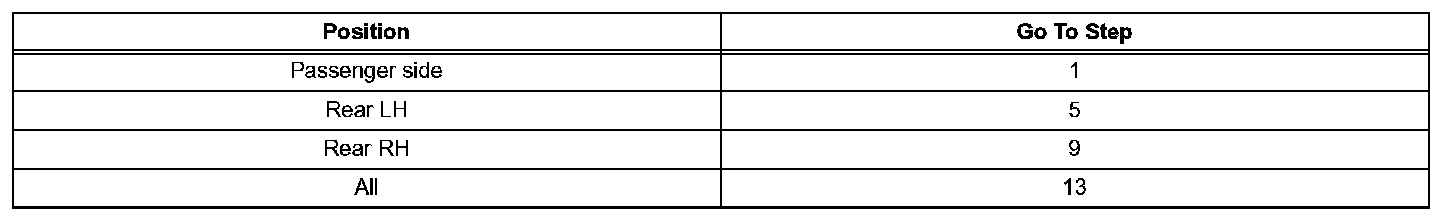

HINT: Check which power window cannot be operated, and then proceed with the troubleshooting for the applicable power window as shown in the table below.

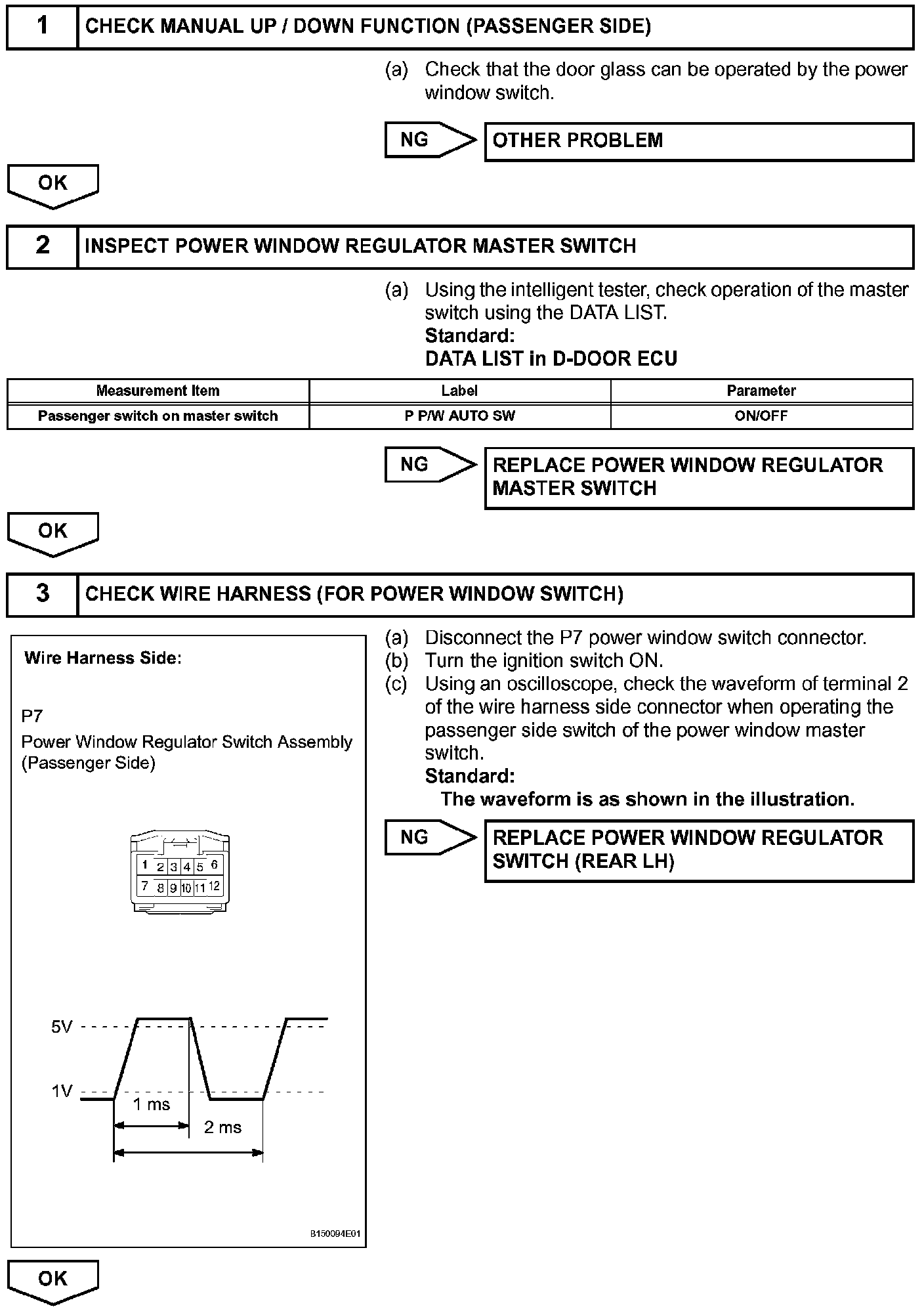

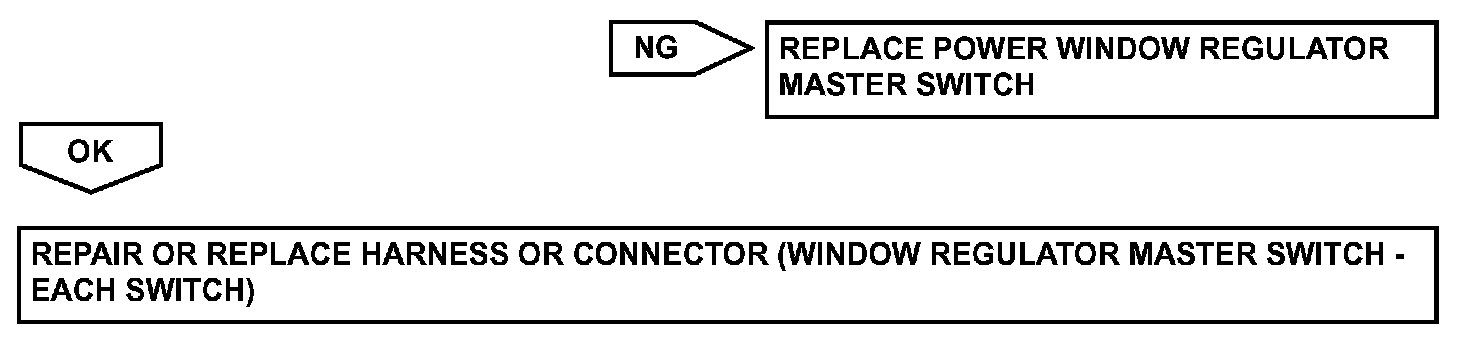

Step 1 - 3:

Step 4 - 6:

Step 6(Continued) - 7:

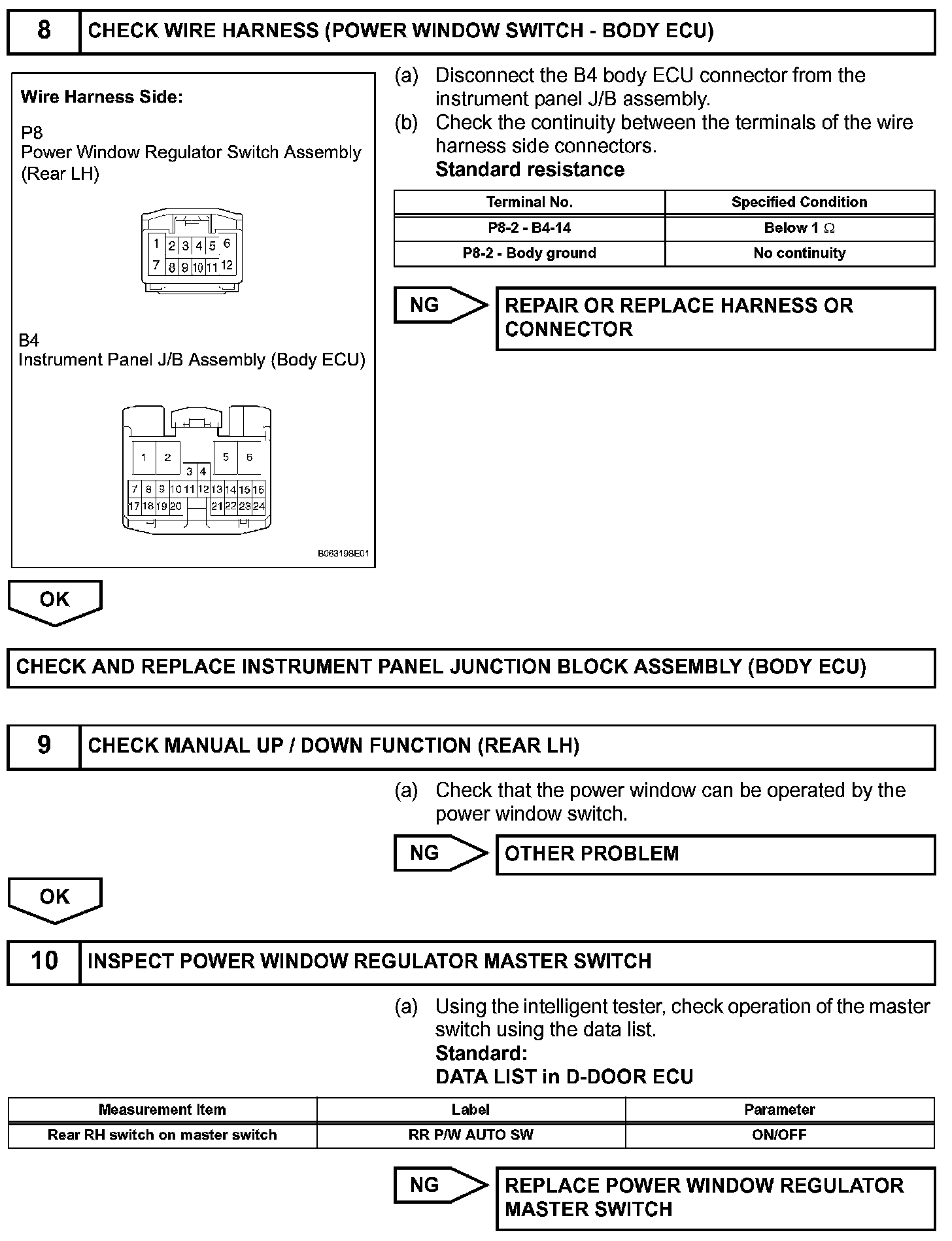

Step 8 - 10:

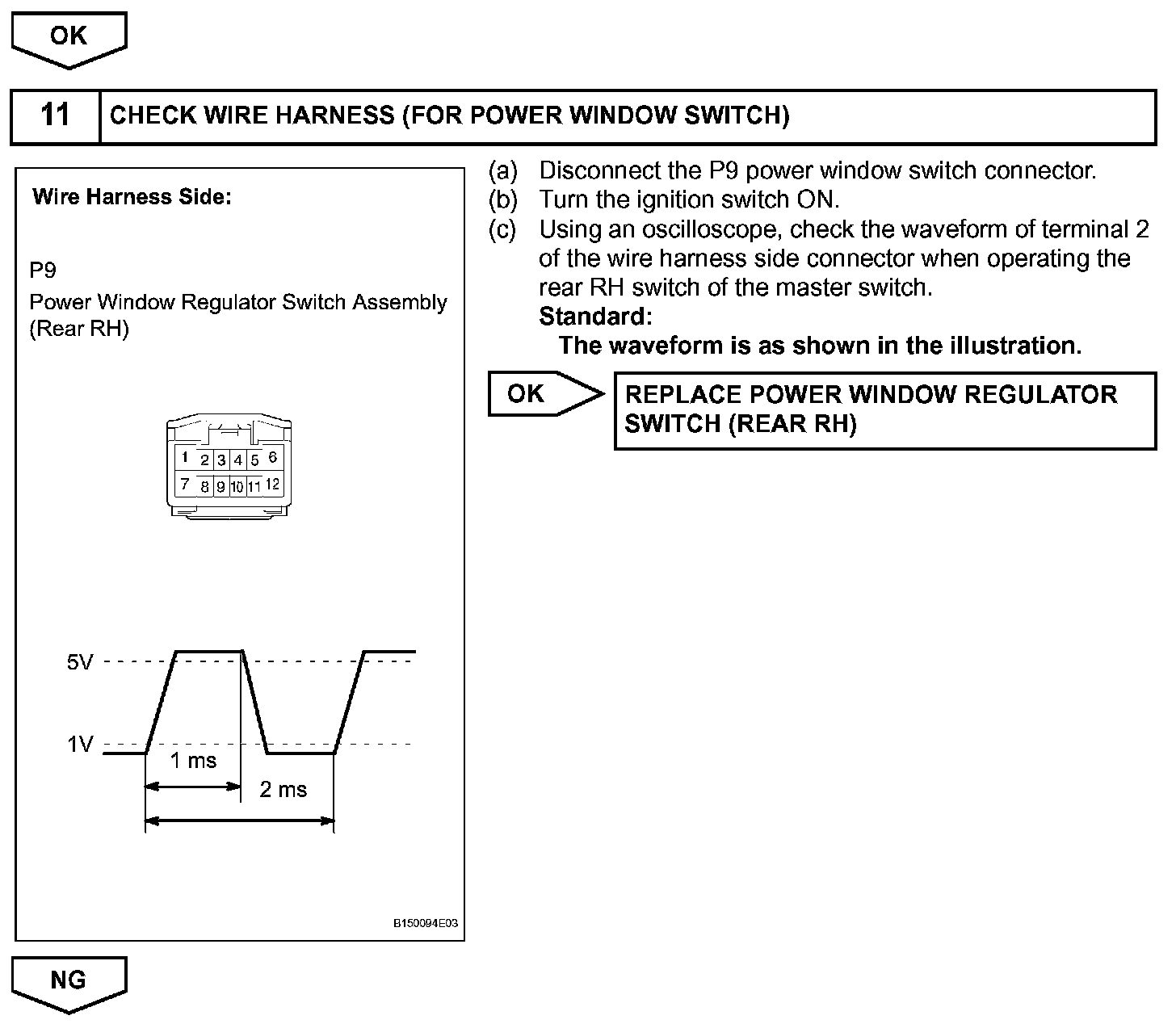

Step 10(Continued) - 11:

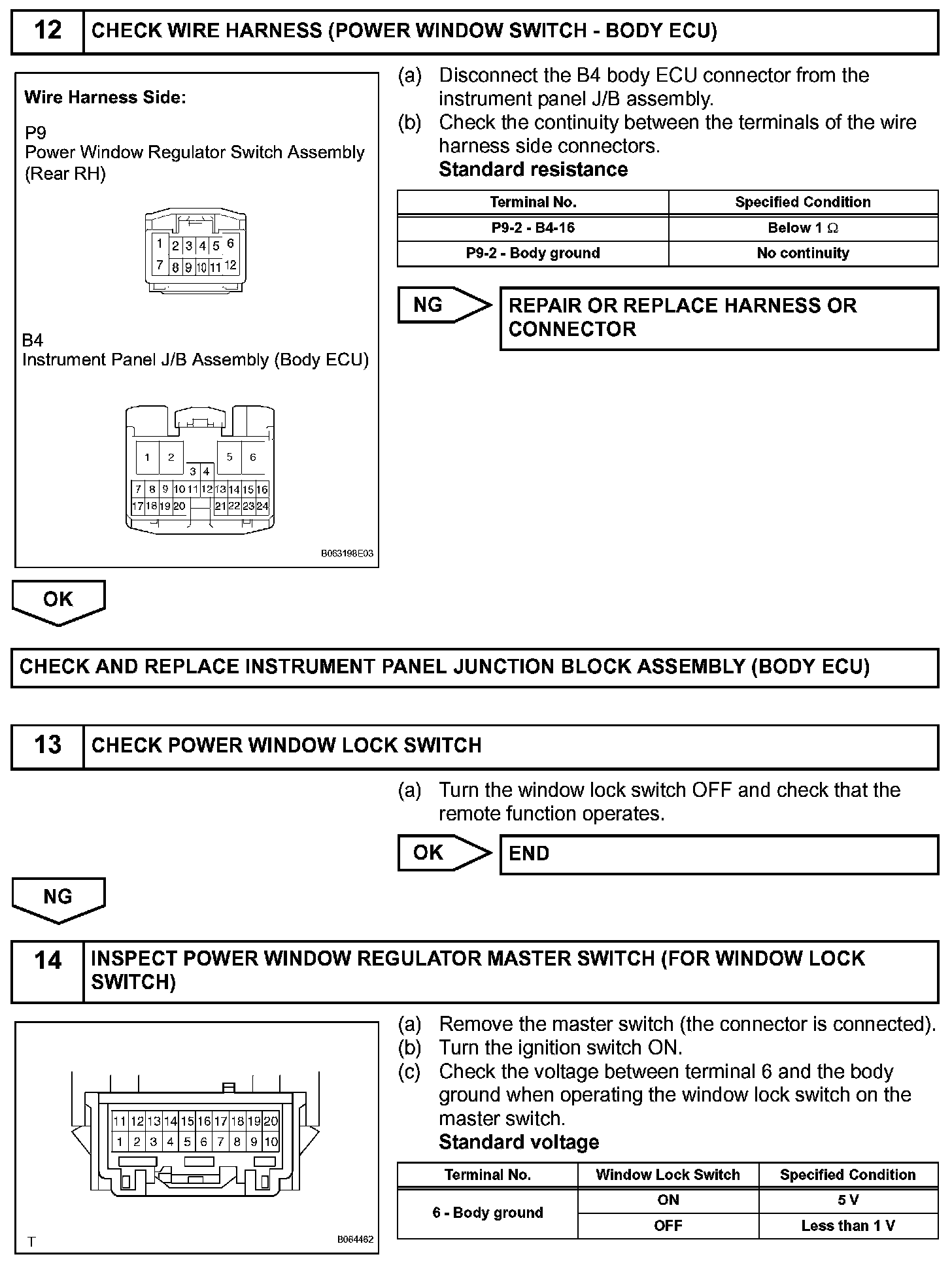

Step 12 - 14:

Step 14(Continued):
