Quarter Window Glass: Service and Repair

QUARTER WINDOW GLASS

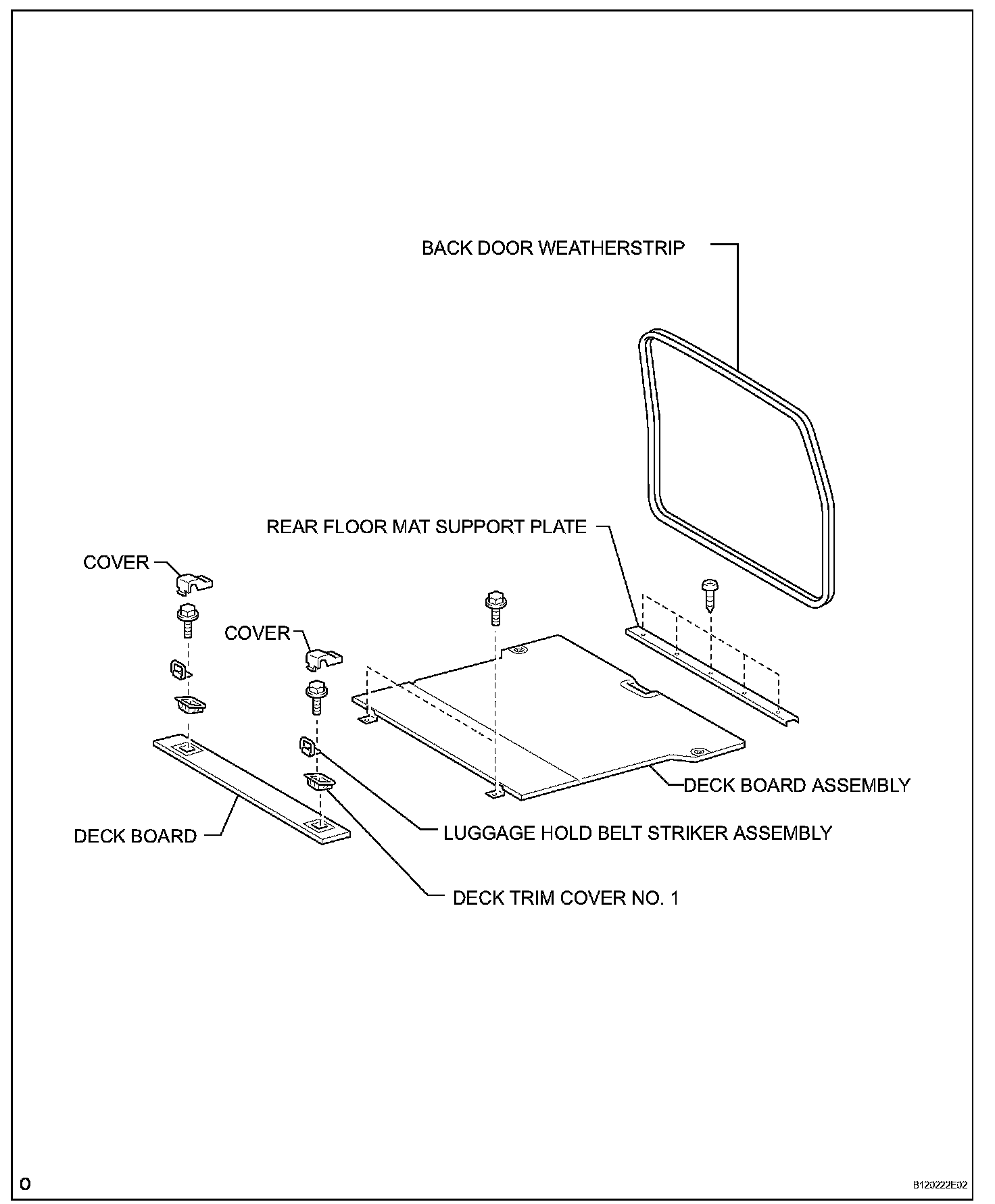

Quarter Window Glass:

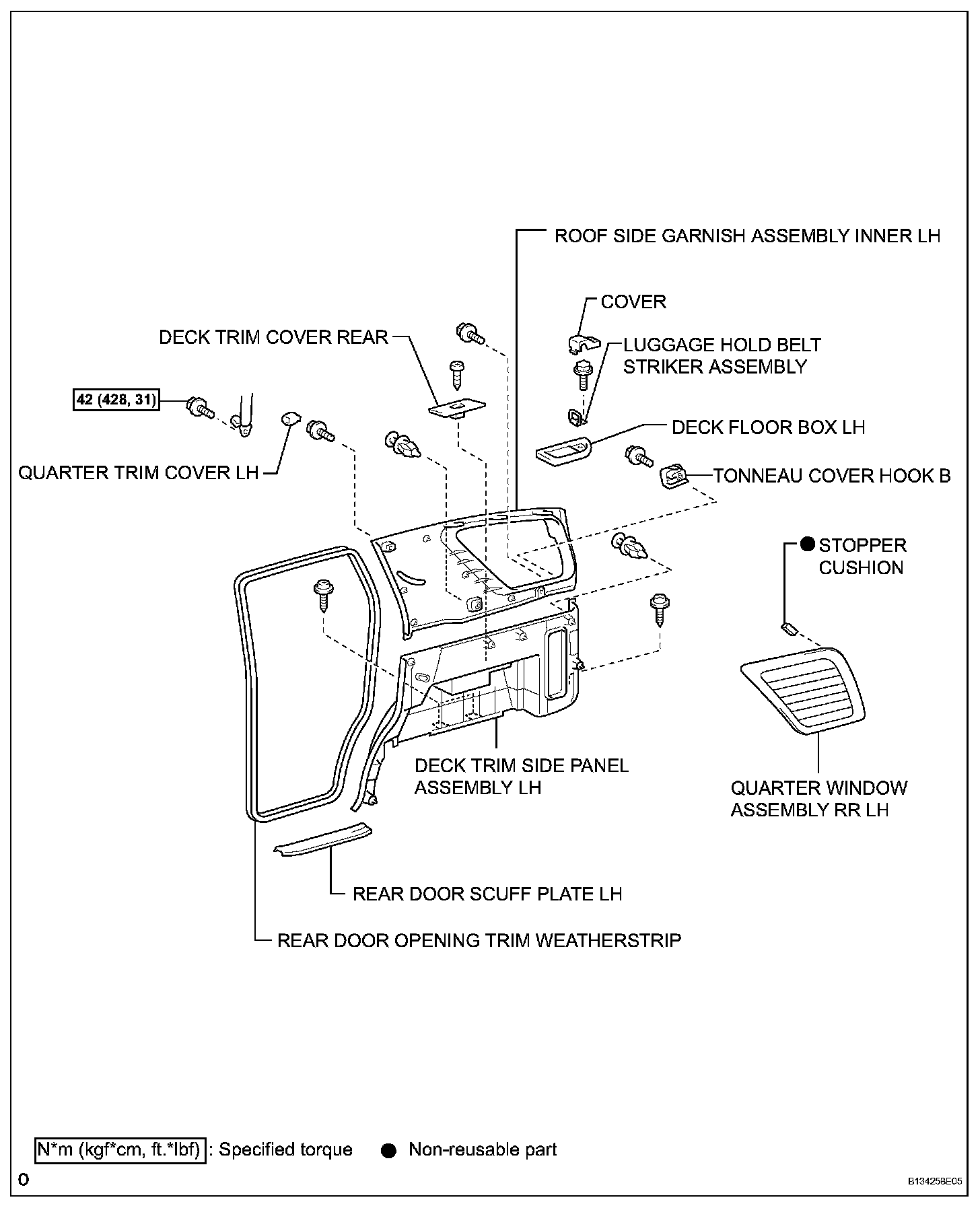

Quarter Window Glass:





REMOVAL

HINT:
- The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.
- On the RH side, use the same procedures as on the LH side.

1. REMOVE REAR NO. 2 SEAT ASSEMBLY LH
2. REMOVE QUARTER SCUFF PLATE INSIDE LH
3. REMOVE REAR DOOR SCUFF PLATE LH
4. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
5. REMOVE BACK DOOR WEATHERSTRIP
6. REMOVE REAR FLOOR MAT SUPPORT PLATE
7. REMOVE QUARTER INSIDE TRIM BOARD LH
8. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH
9. REMOVE QUARTER WINDOW LOCK ASSEMBLY LH
a. Remove the screw and window lock assembly.





10. REMOVE QUARTER WINDOW ASSEMBLY LH
a. Disconnect the connectors.
b. Remove the 2 bolts and 2 nuts.
c. Remove the window assembly LH.

NOTICE: Be careful not to damage the body and glass.

INSTALLATION





1. INSTALL QUARTER WINDOW ASSEMBLY LH
a. Install the window assembly wit 2 bolts and 2 nuts.
b. Connect the connectors.

2. INSTALL QUARTER WINDOW LOCK ASSEMBLY LH
3. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER LH
4. INSTALL QUARTER INSIDE TRIM BOARD LH
5. INSTALL REAR FLOOR MAT SUPPORT PLATE
6. INSTALL BACK DOOR WEATHERSTRIP
7. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
8. INSTALL REAR DOOR SCUFF PLATE LH
9. INSTALL QUARTER SCUFF PLATE INSIDE LH
10. INSTALL REAR NO. 2 SEAT ASSEMBLY LH
