Automatic Transmission System
DIAGNOSTIC TROUBLE CODE CHART If a DTC is displayed during the DTC check, check the parts listed in the table and proceed to the page given.
HINT: ^
*1: Comes on MIL (Malfunction Indicator Lamp) light up
^
*2: "DTC stored" mark means ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
^
This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.

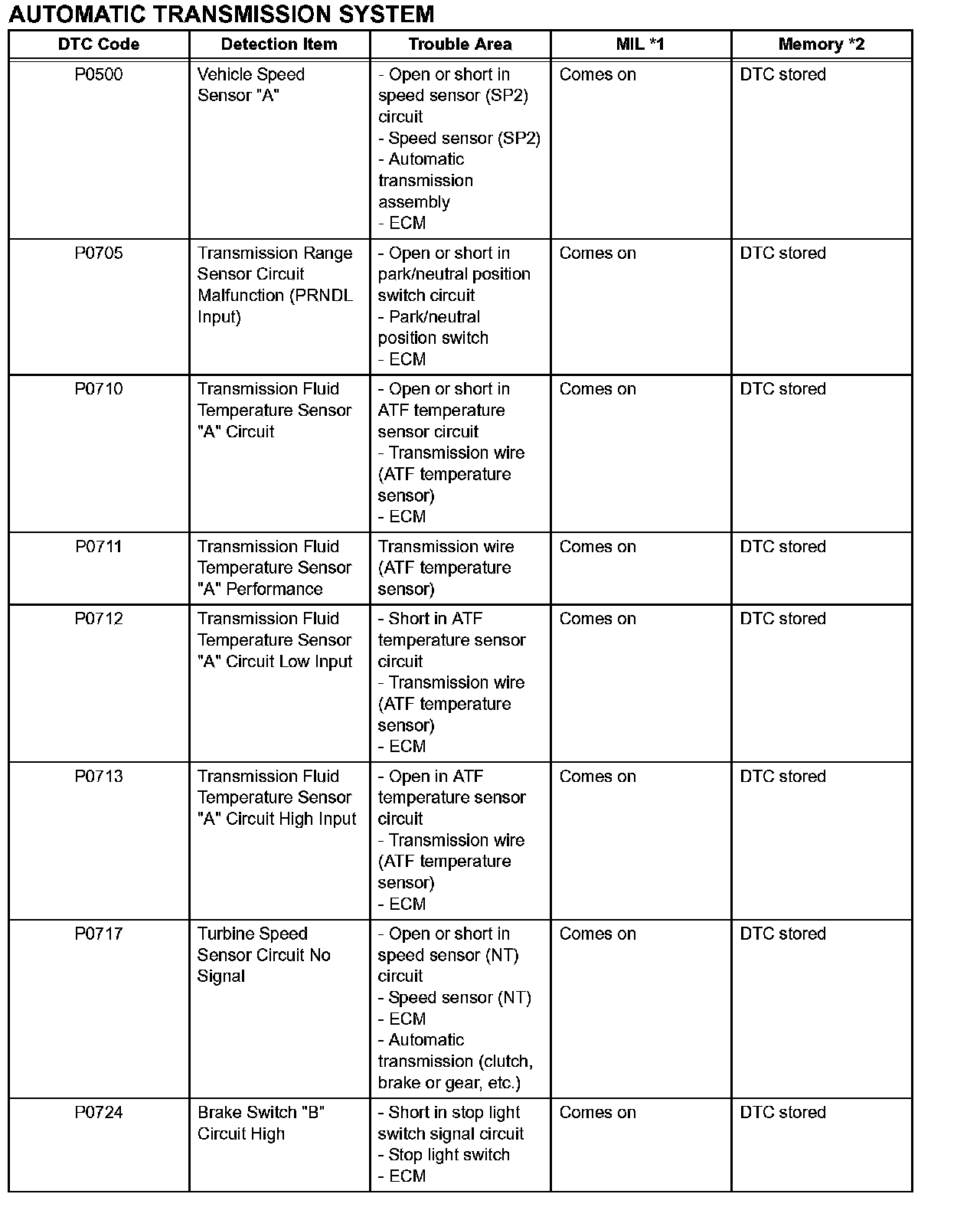

AUTOMATIC TRANSMISSION SYSTEMP0500-P0724:

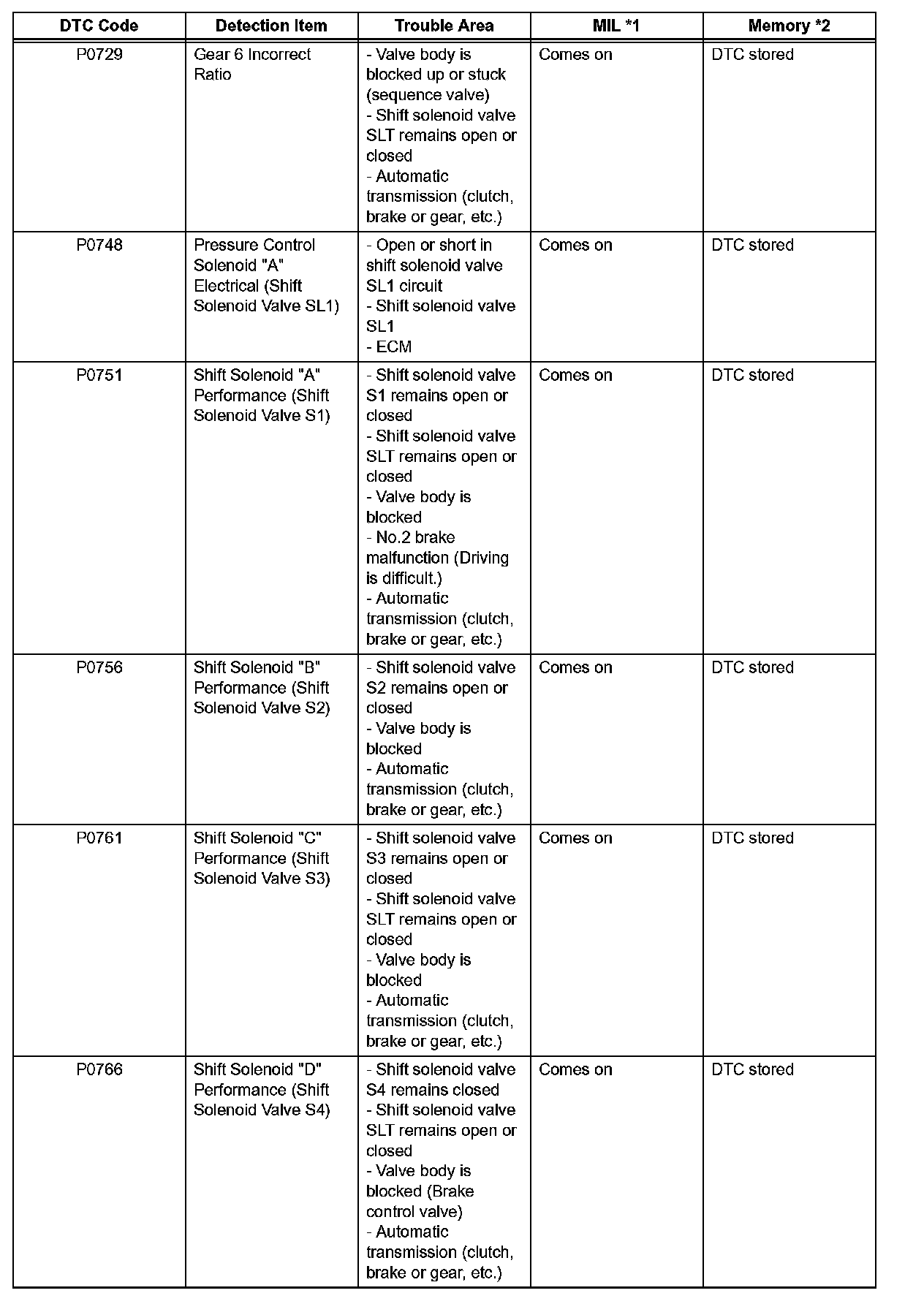

P0729-P0766:

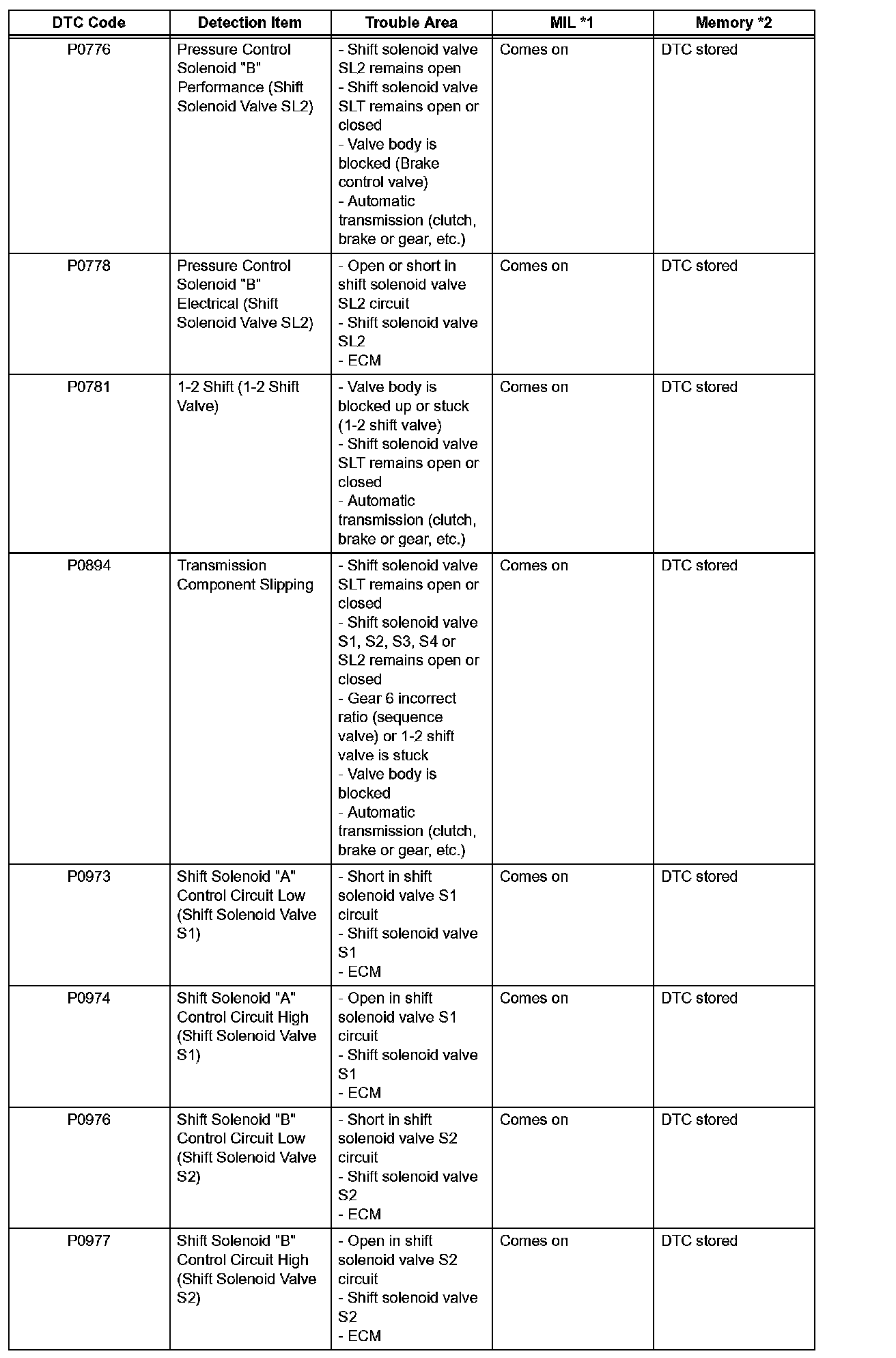

P0776-P0977:

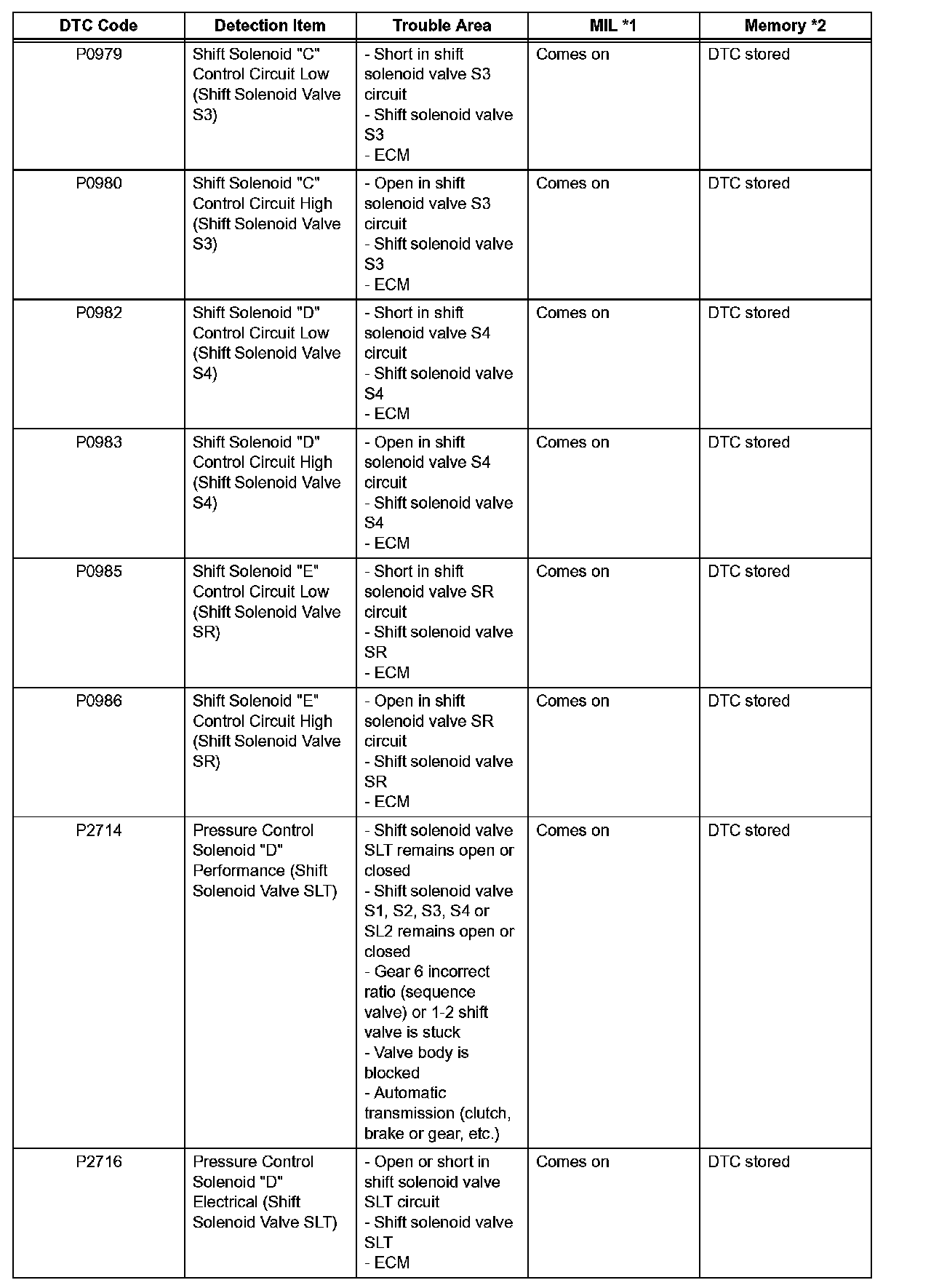

P0979-P2716:

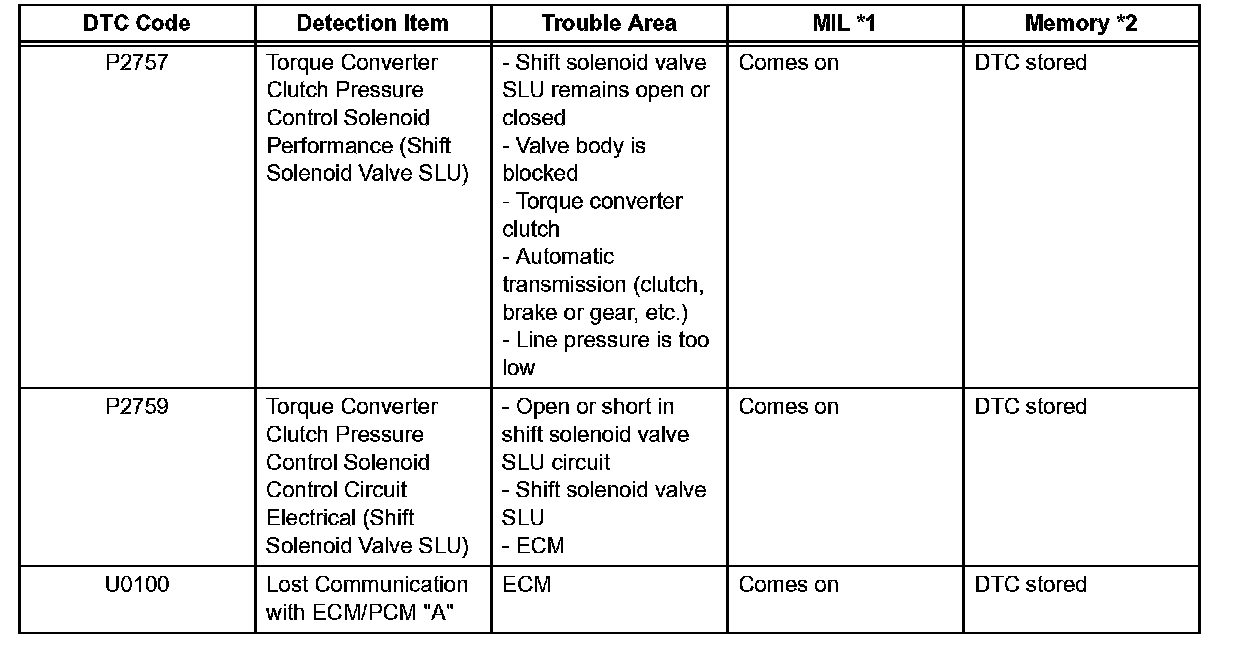

P2757-P2759/U0100:
