Luggage Compartment Door Open Switch Circuit

Luggage Compartment Door Open Switch Circuit

DESCRIPTION

If the certification ECU detects that the luggage compartment open switch is pressed when the driver is carrying the electrical key or when the electrical key is locked in the luggage compartment door, the certification ECU sends a luggage compartment door open motor drive request signal to the main body ECU LH.

Wiring Diagram:

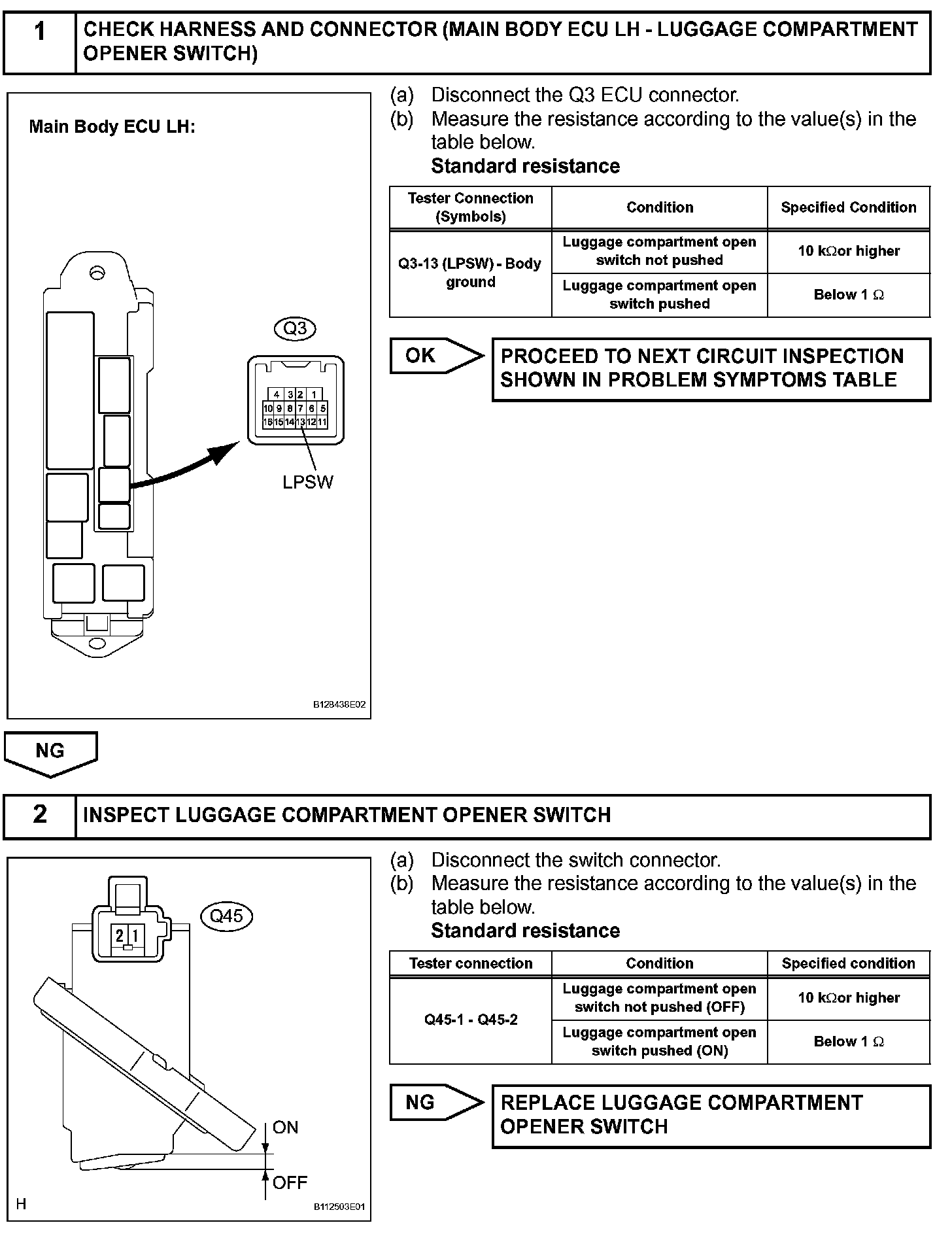

Step 1-2:

Step 2 (Continued):

INSPECTION PROCEDURE
