Steering Mounted Controls Transmitter: Testing and Inspection
INSPECTION 1.
INSPECT
STEERING PAD SWITCH
a.
Remove the
steering pad switch connector with the steering pad switch and spiral cable still connected.
b.

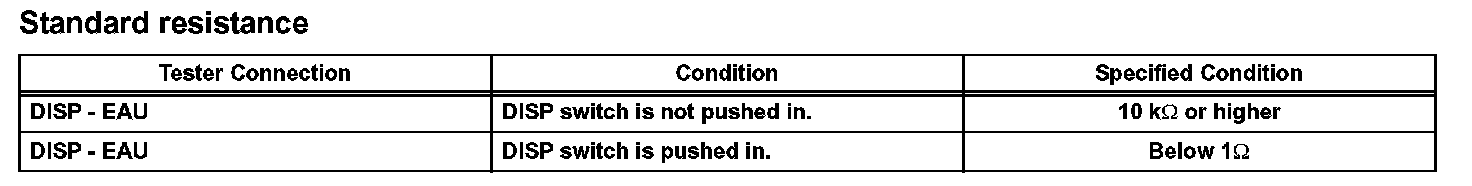

Measure the resistance according to the value(s) in the table given.
HINT: If the value is not as specified, replace the
steering pad switch.
