Transmission Speed Sensor: Service and Repair

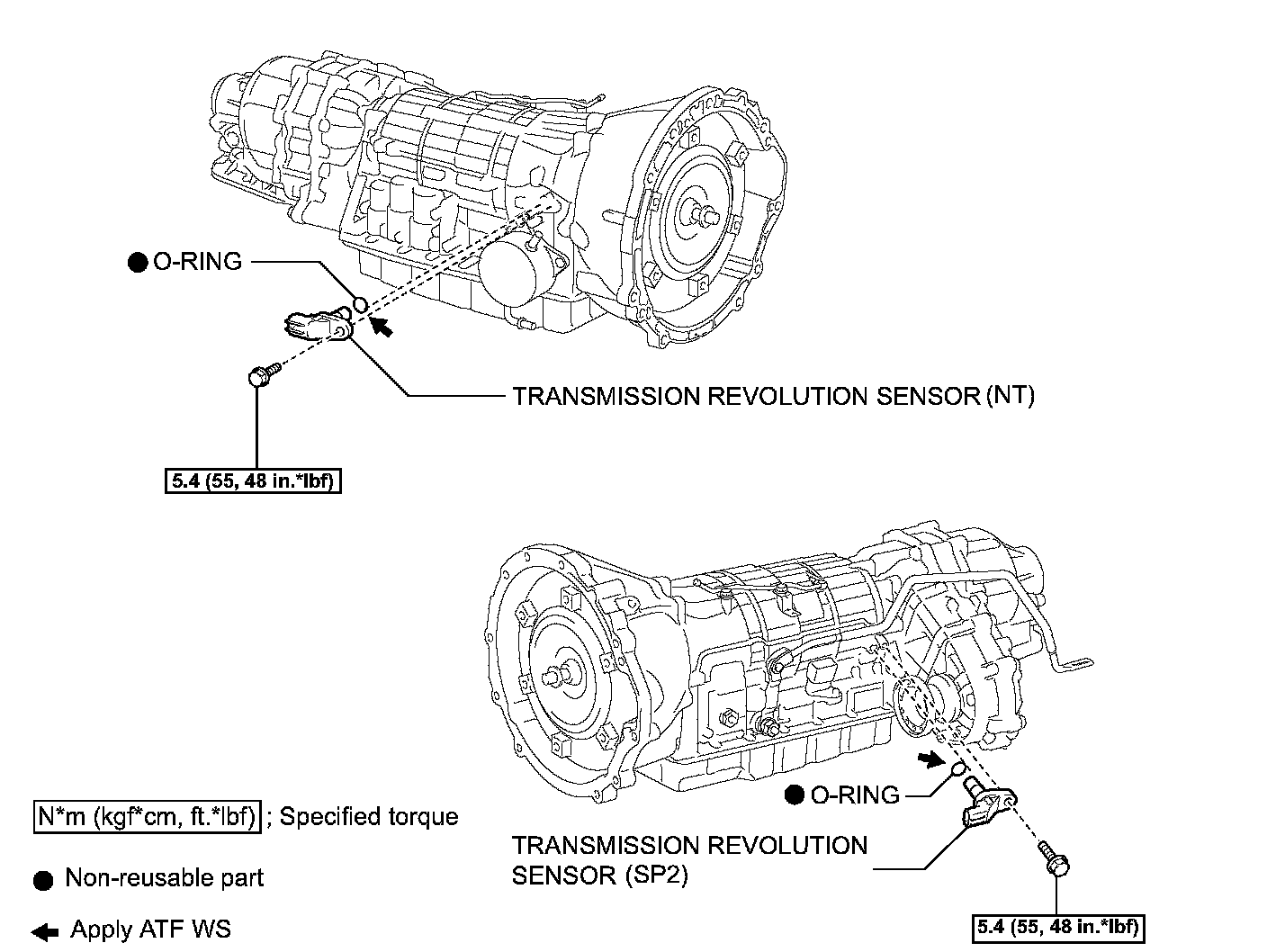

SPEED SENSOR

Components:

REMOVAL

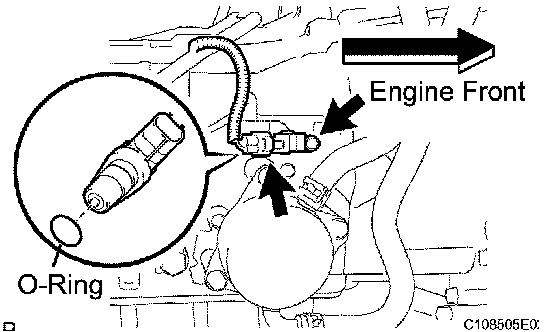

1. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

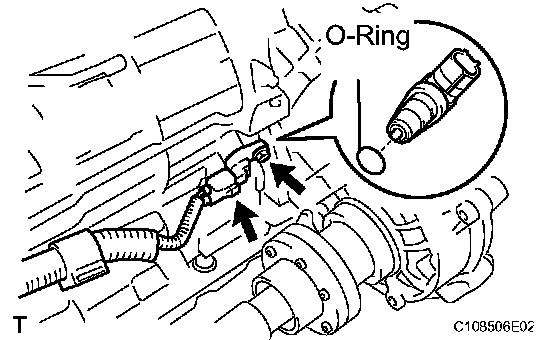

a) Disconnect the transmission revolution sensor connector.
b) Remove the bolt and transmission revolution sensor.
c) Remove the O-ring from the transmission revolution sensor.

2. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2)

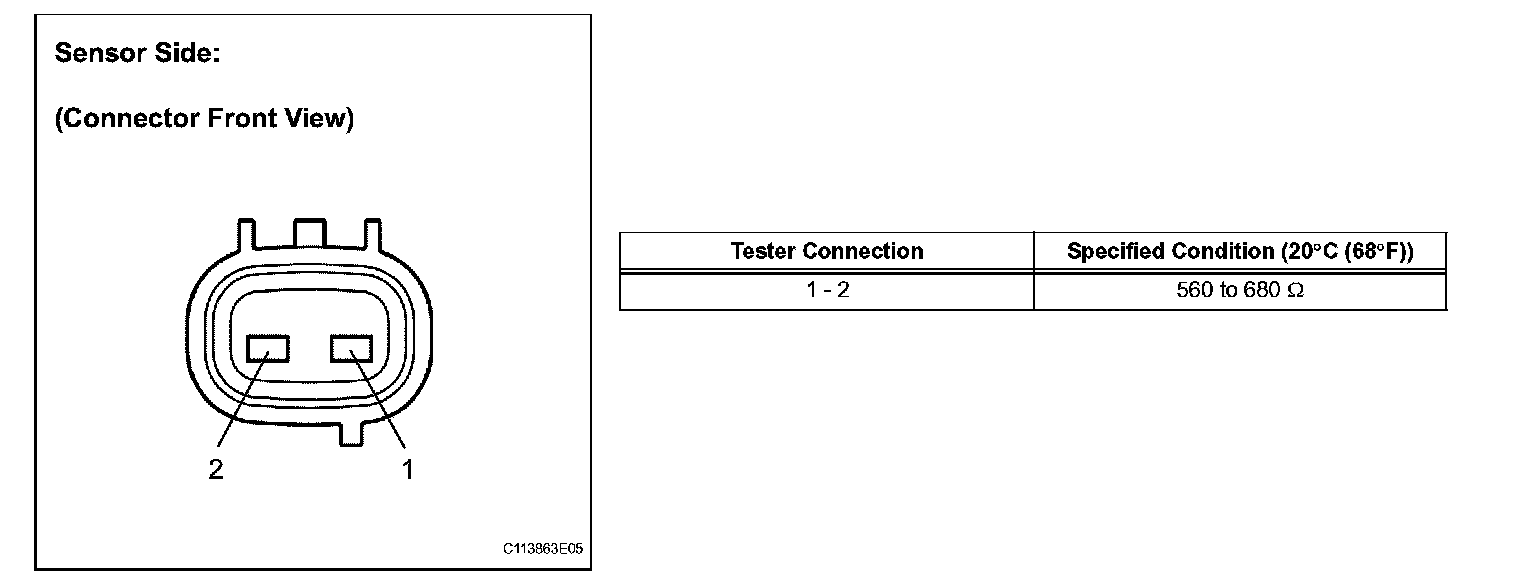

a) Measure the resistance according to the value(s) in the table.
If the resistance value is not as specified, replace the speed sensor.

2. INSPECT TRANSMISSION REVOLUTION SENSOR (SP2)

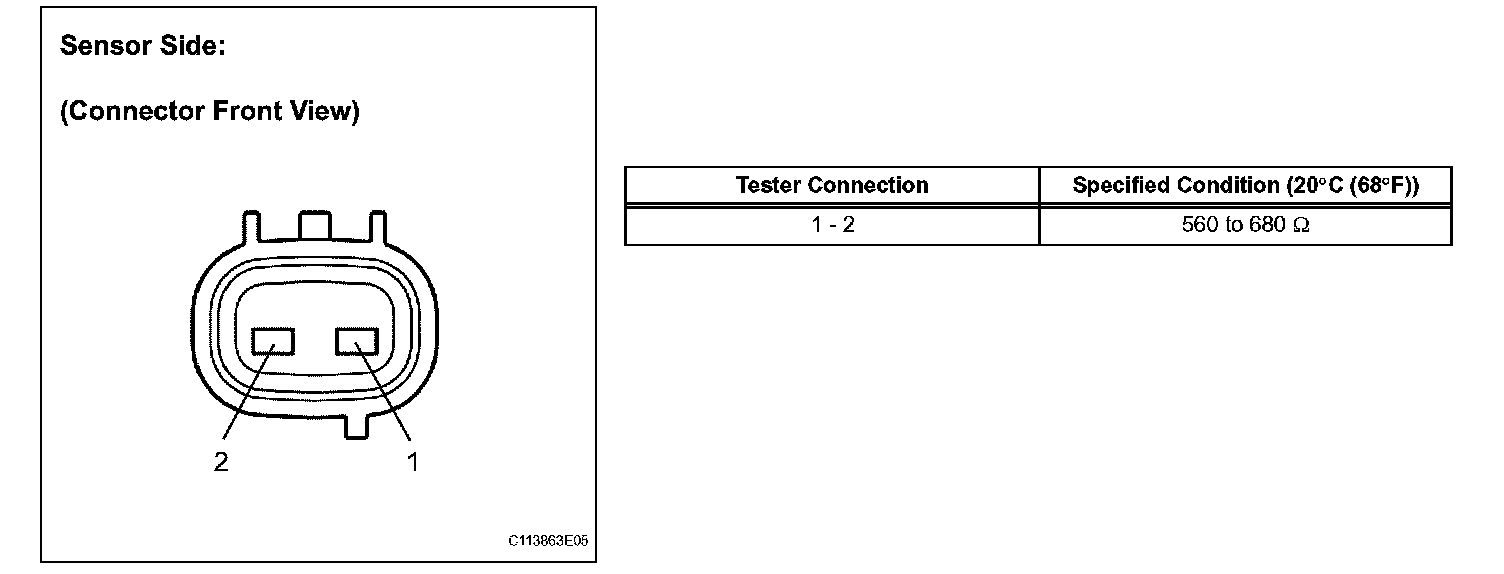

a) Measure the resistance according to the value(s) in the table.
If the resistance value is not as specified, replace the speed sensor.

INSTALLATION

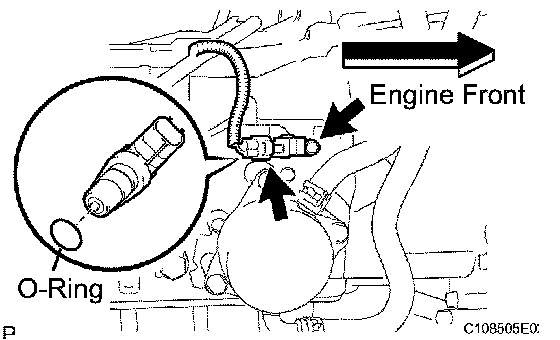

1. INSTALL TRANSMISSION REVOLUTION SENSOR (SP2)

a) Coat a new O-ring with ATF WS and install it to the transmission revolution sensor.
b) Install the transmission revolution sensor with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)

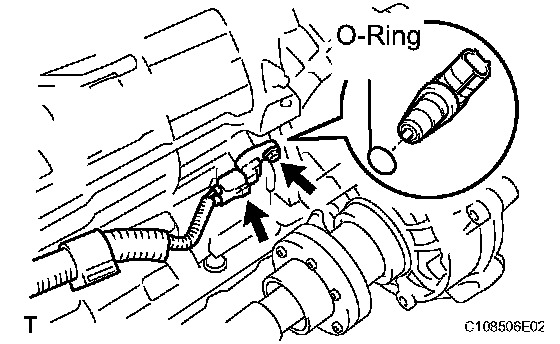

c) Connect the transmission revolution sensor connector.

2. INSTALL TRANSMISSION REVOLUTION SENSOR (NT)
