Pattern Select Switch Power Mode Circuit
Pattern Select Switch Power Mode CircuitDESCRIPTION
Cowl side J/B ECU receives pattern select switch information, and sends it through the multiplex communication system and CAN system to the ECM.
The ECM memory contains the programs for the NORMAL and POWER shift patterns and lock-up pattern.
By following the programs corresponding to the signals from the pattern select switch, the neutral start and other various sensors, the ECM switches the solenoid valves ON and OFF, and controls the transmission gear change and the lock-up clutch operation.

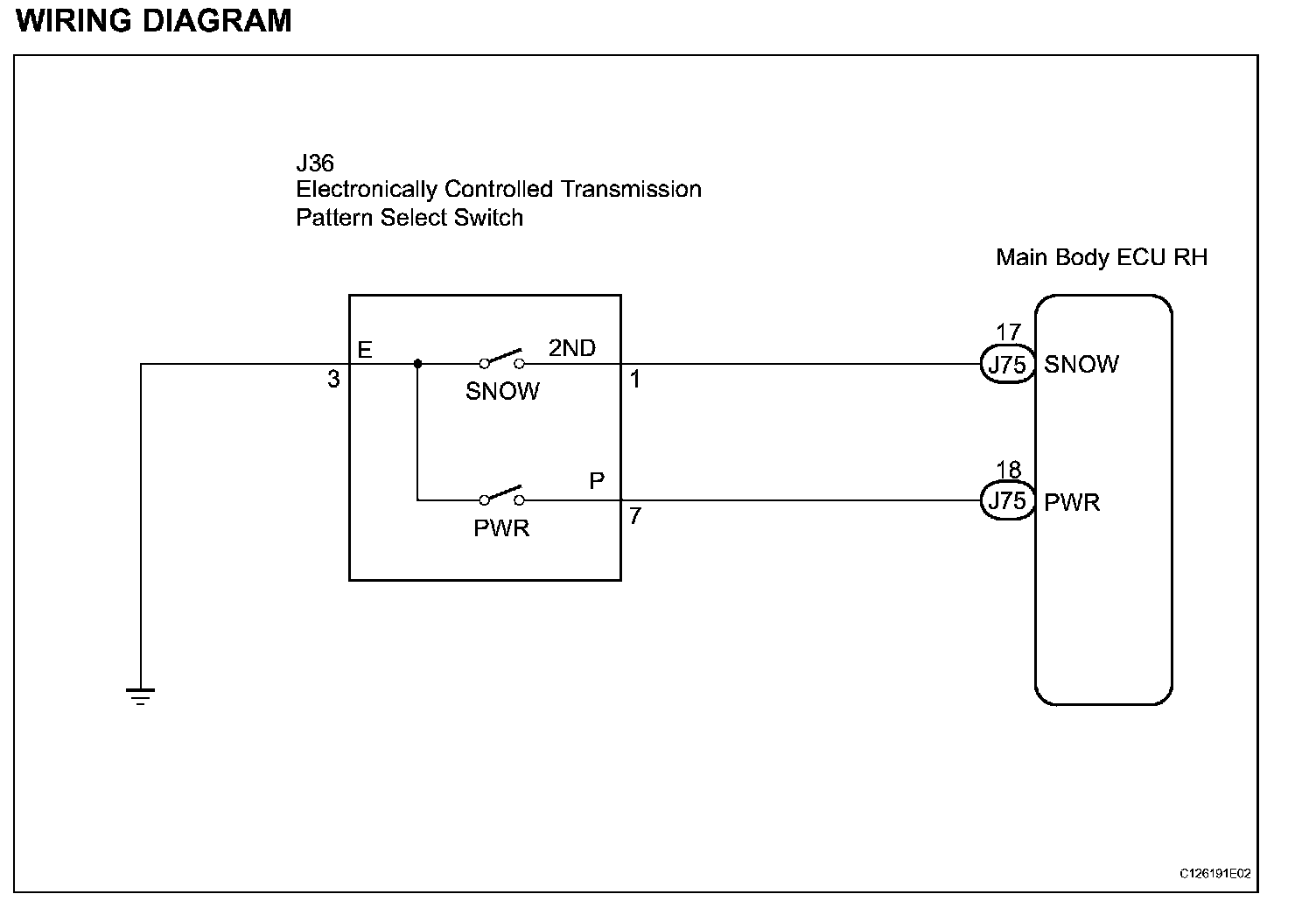

WIRING DIAGRAM:
INSPECTION PROCEDURE

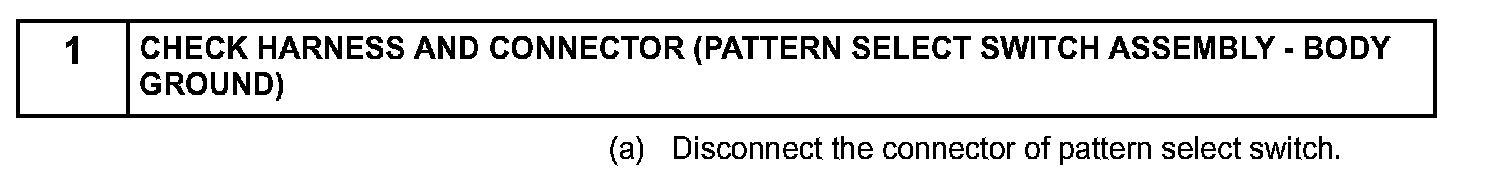

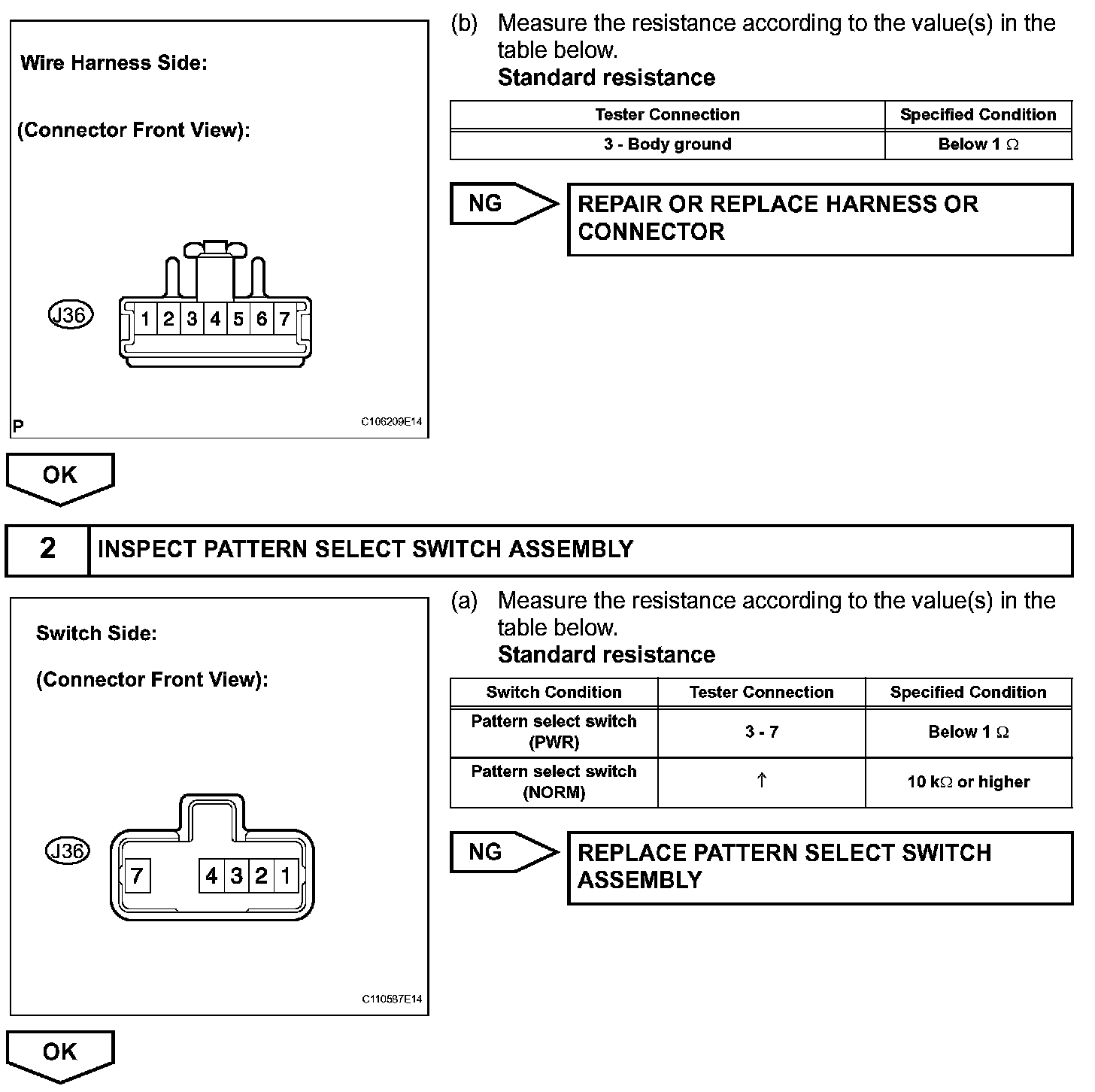

Step 1(Part 1):

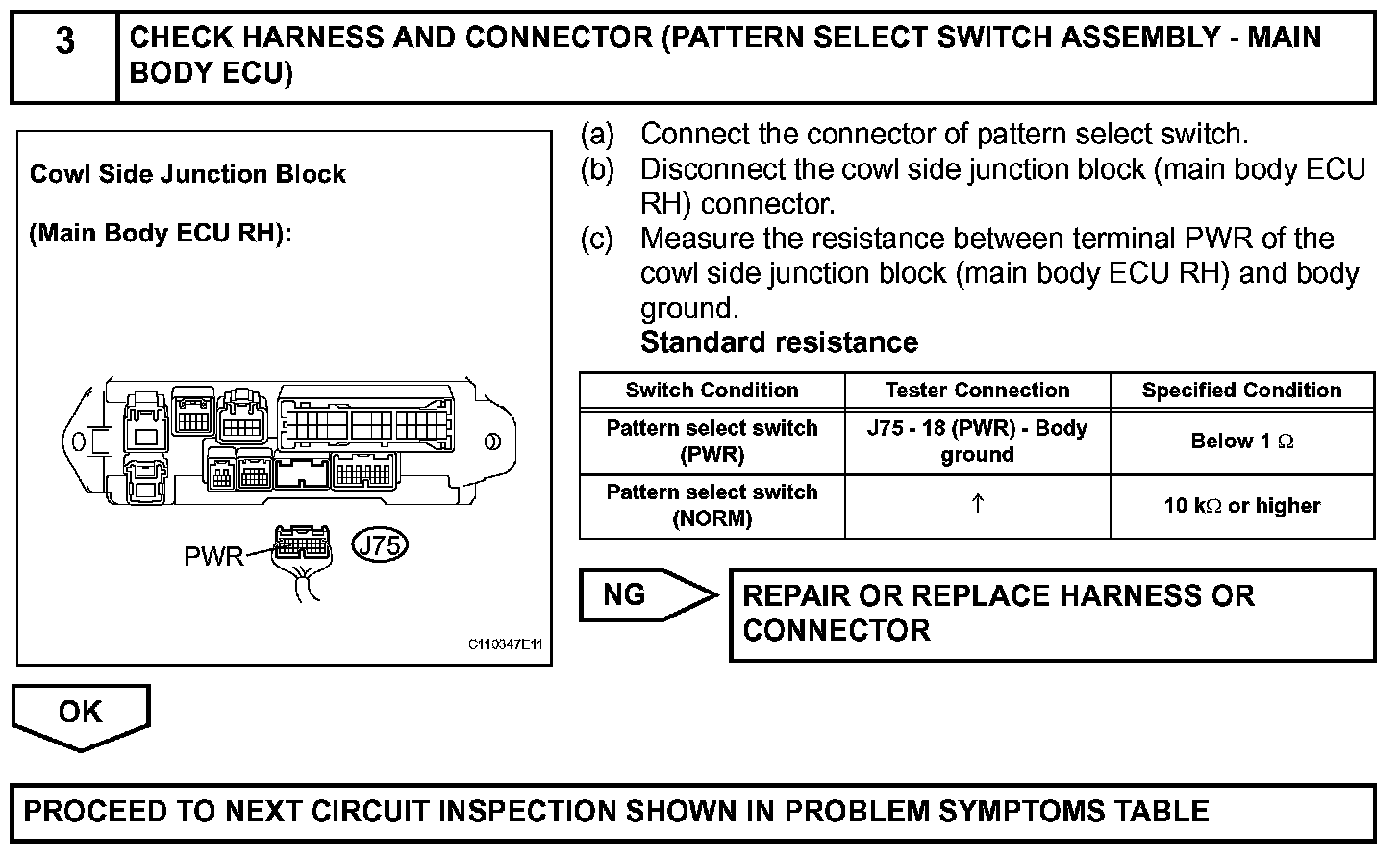

Steps 1(Part 2)-2:
