Security Indicator Light Circuit

Security Indicator Light Circuit

DESCRIPTION

When the theft deterrent system is in the disarmed state, the security indicator will flash continuously if the immobilizer system is set, or not illuminate if the immobilizer system is not set.
When the theft deterrent system is in the armed state, the immobilizer system is automatically set and the security indicator will flash continuously.
When the theft deterrent system is in the arming preparation state and alarm sounding state, the certification ECU causes the security indicator to be illuminated.

Wiring Diagram For LH:

Wiring Diagram For RH:

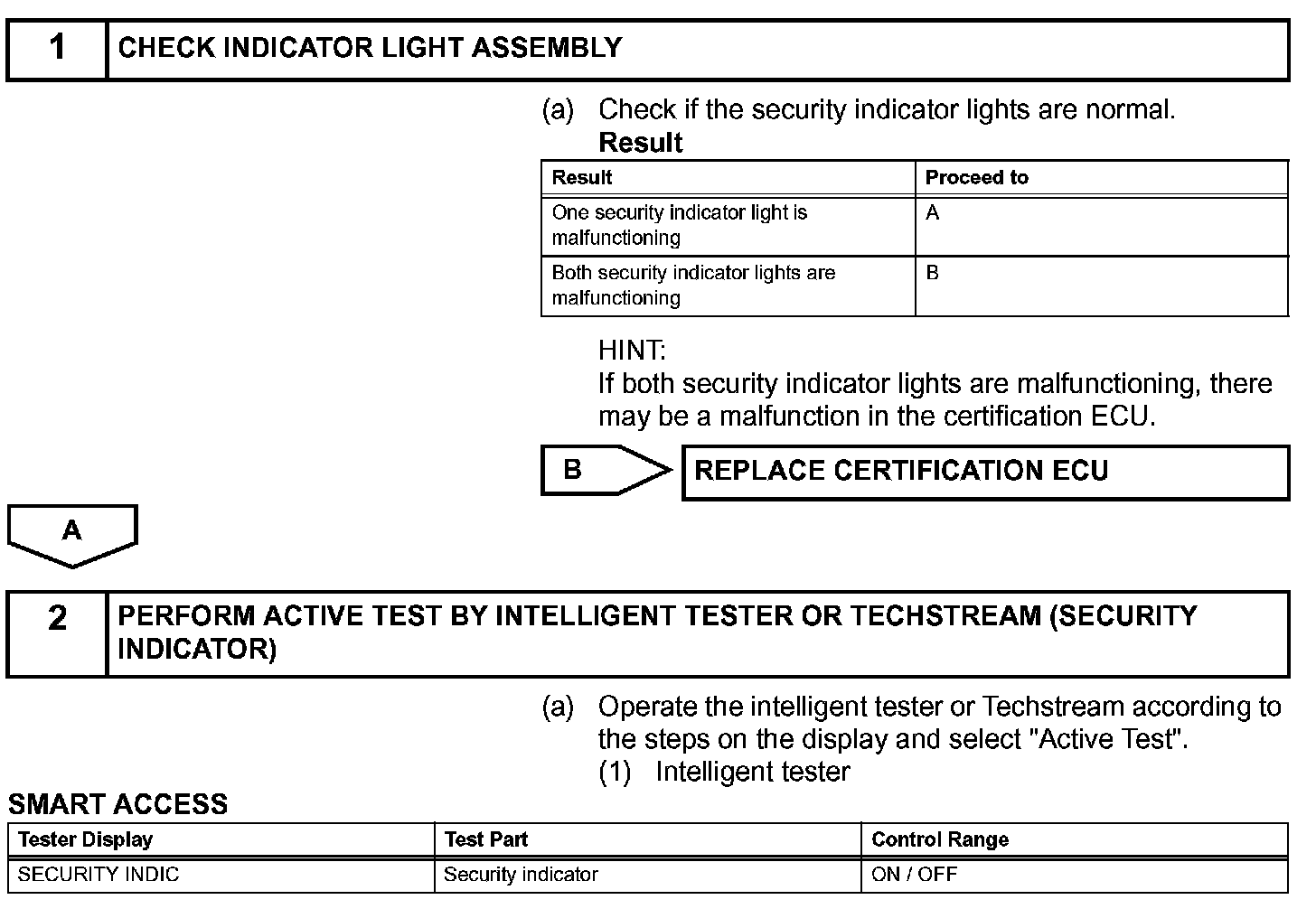

Step 1-2:

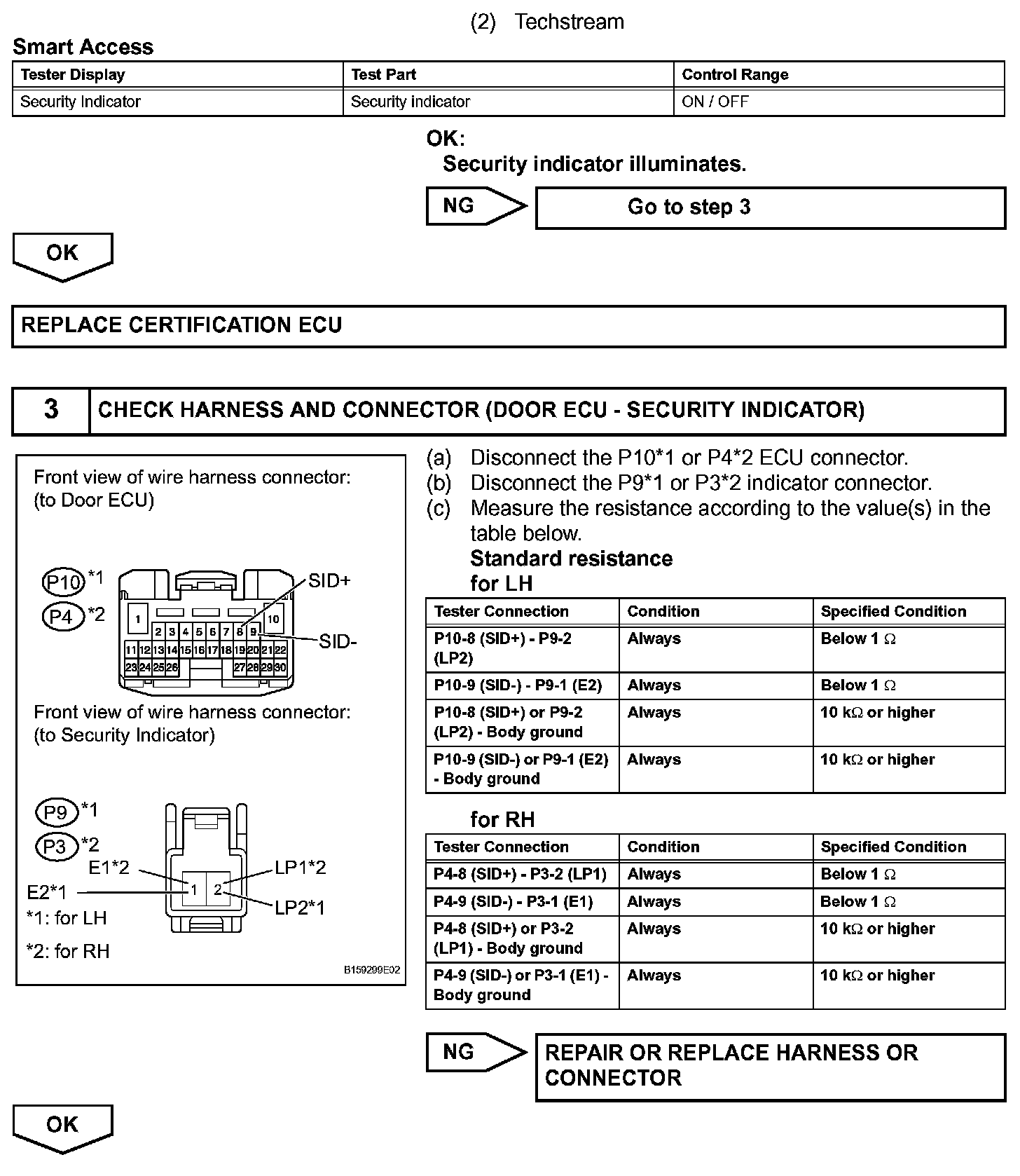

Step 2 (Continued)-3:

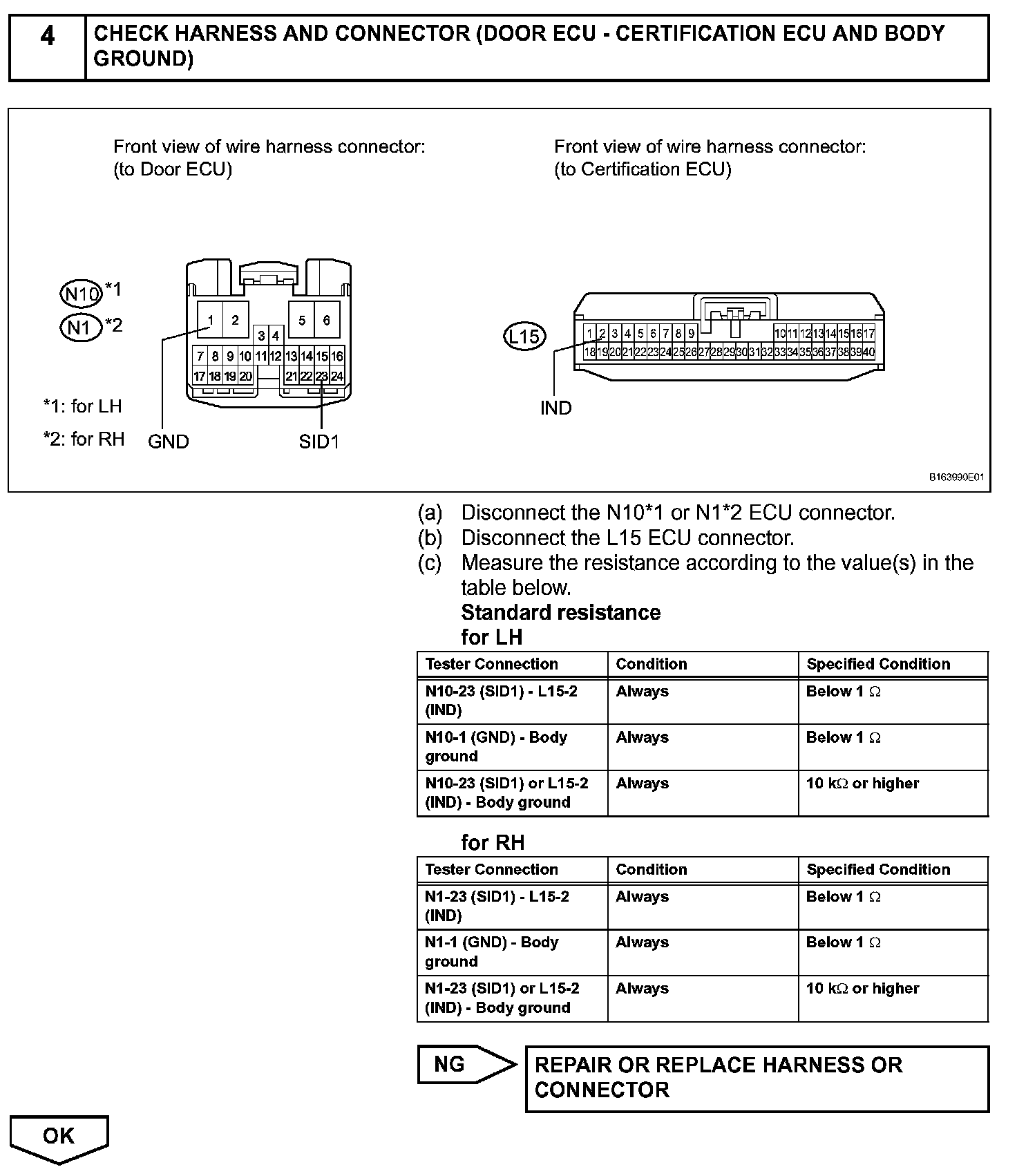

Step 4:

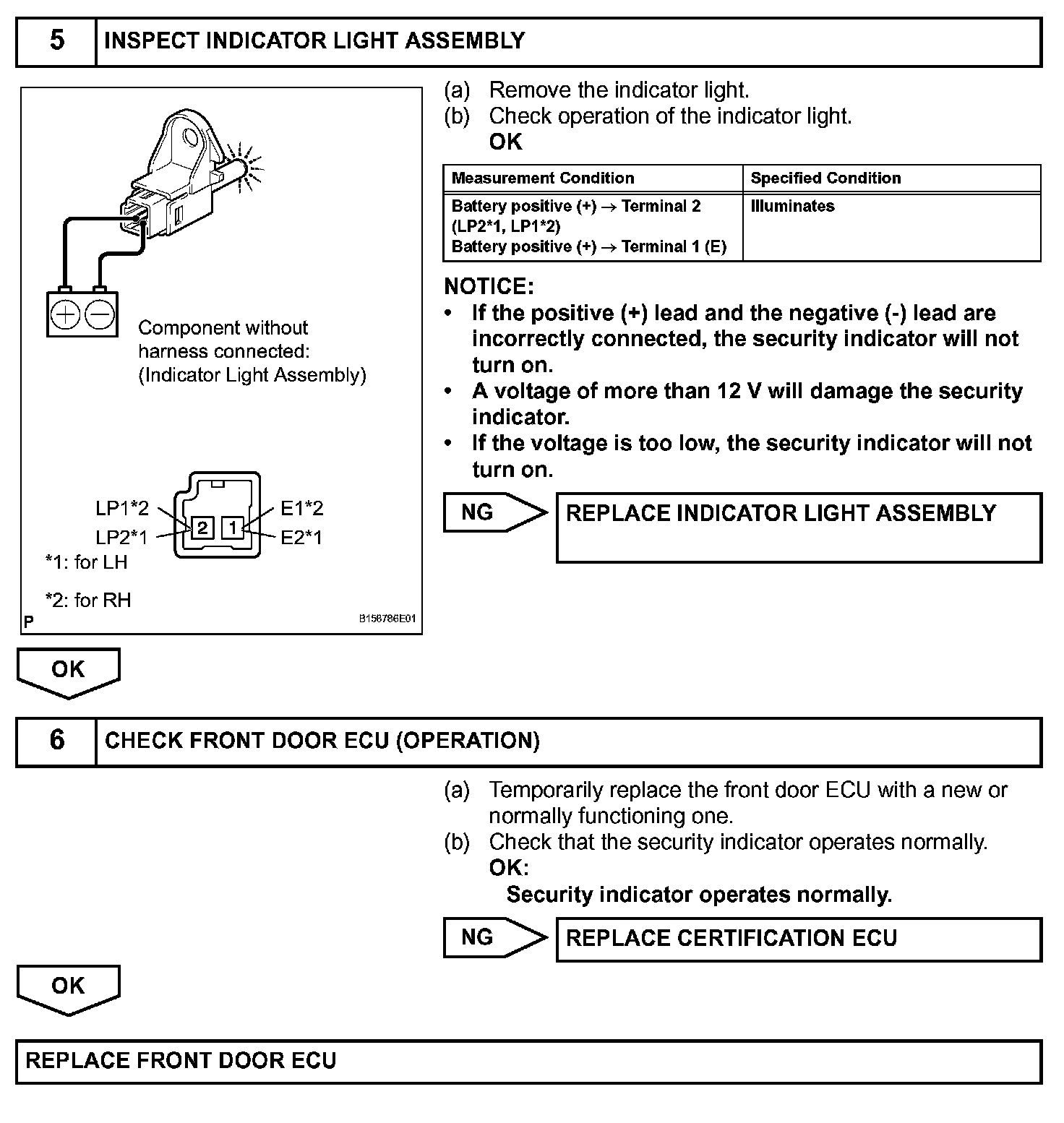

Step 5-6:

INSPECTION PROCEDURE
