Wireless Door Lock Control System

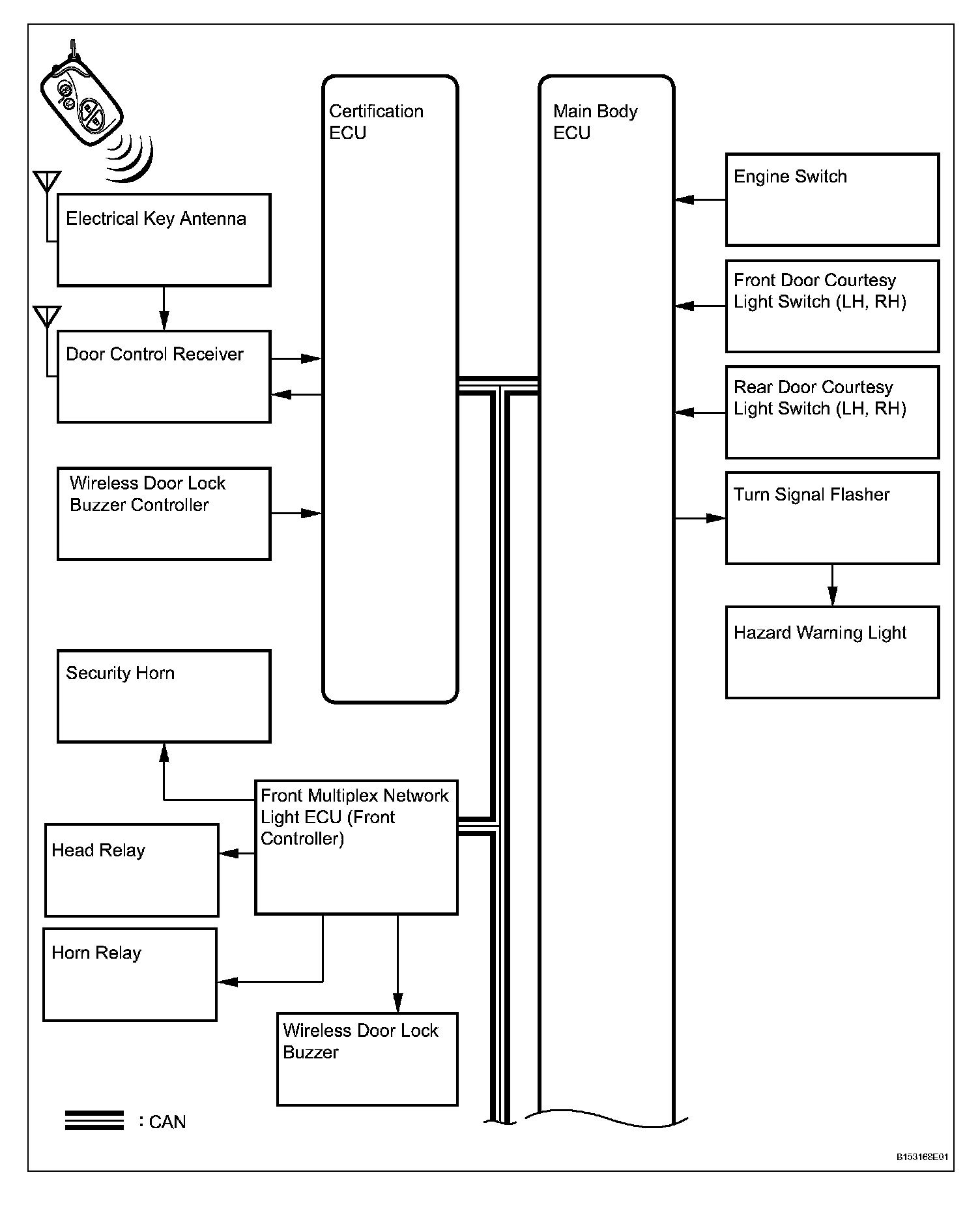

System Diagram (Part 1):

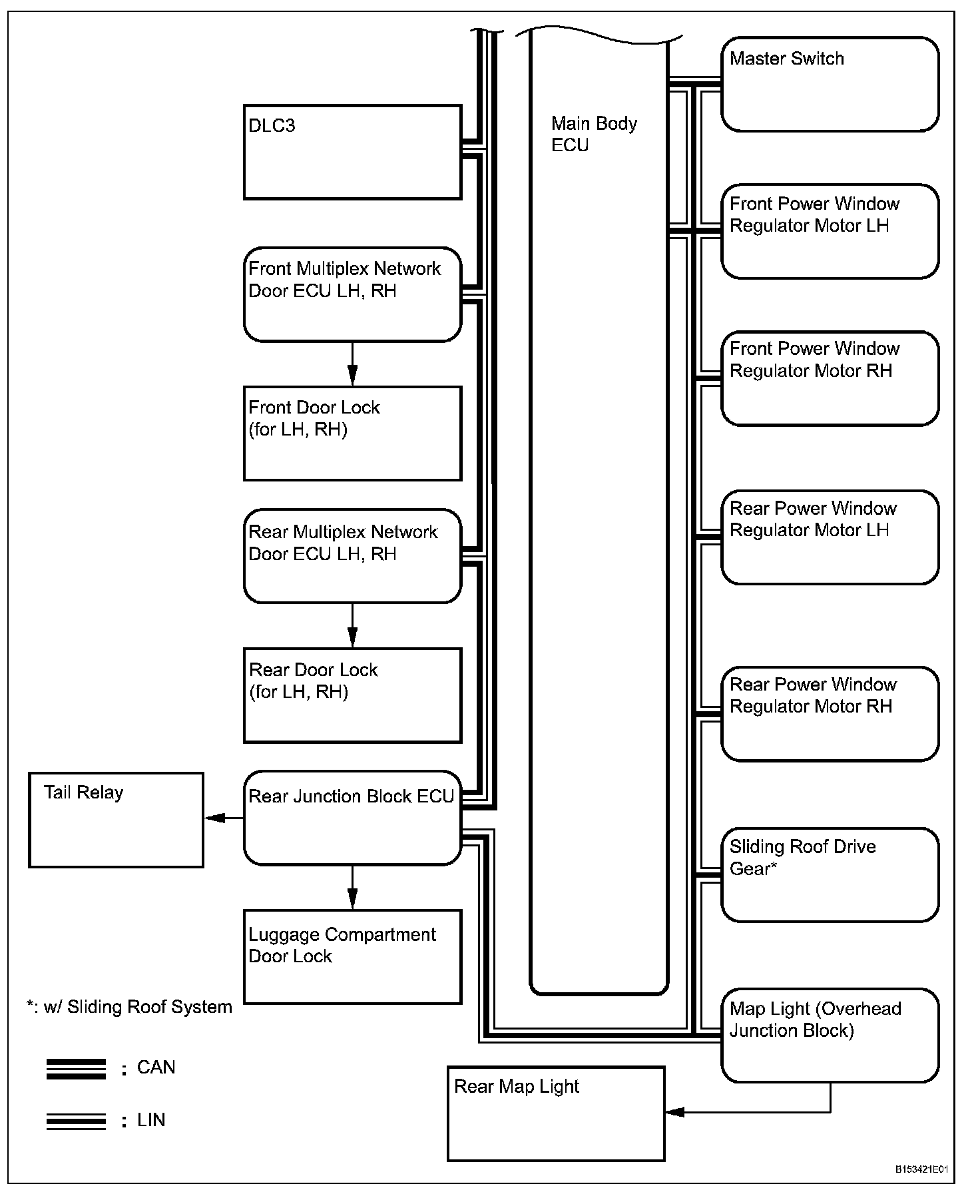

System Diagram (Part 2):

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

This system lock/unlocks the doors remotely. The wireless door lock control system has the following features:
- The certification ECU performs the code identification process and the main body ECU controls the door lock. A serial data link is provided for communication between the certification ECU and main body ECU.
- A key-integrated type transmitter is used and it contains the following 4 switches: LOCK switch, UNLOCK switch, LUGGAGE switch and PANIC switch.
- An LED is mounted on the transmitter to show if the battery is depleted.

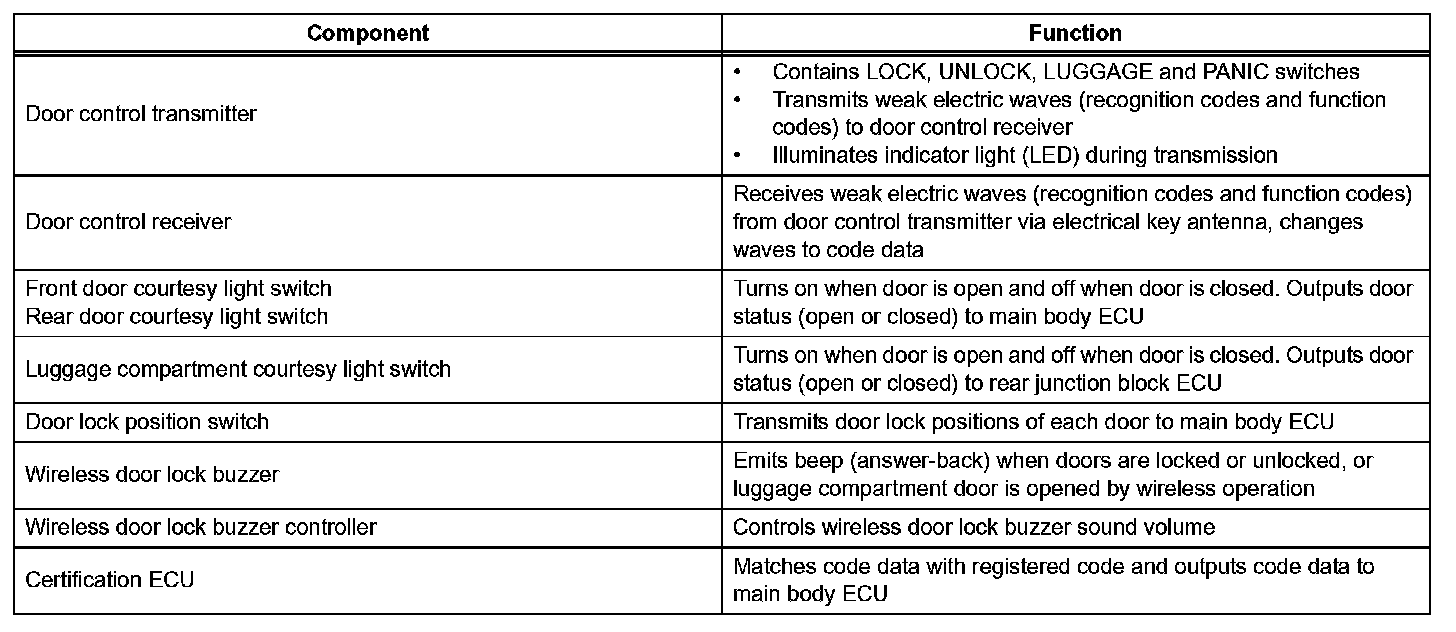

1. FUNCTION OF MAIN COMPONENTS

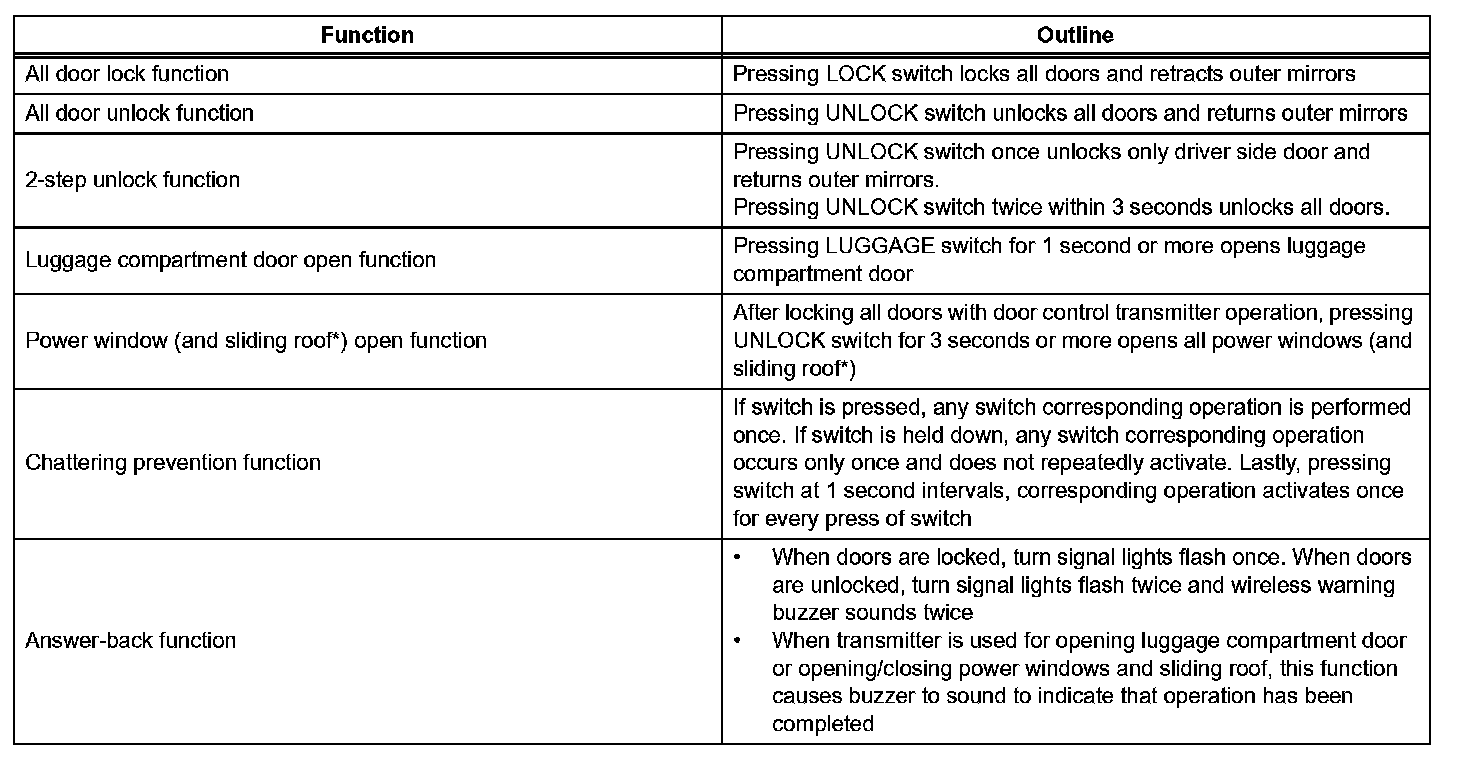

2. SYSTEM FUNCTION

Part 1:

Part 2:

a. The wireless door lock control system has the given functions.
