Door Control Switch
INSPECTIONINSPECT DOOR CONTROL SWITCH ASSEMBLY a.

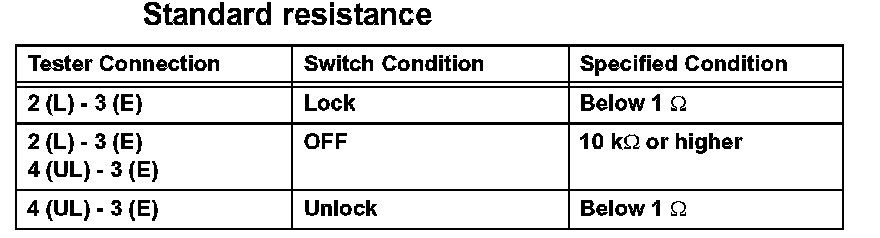

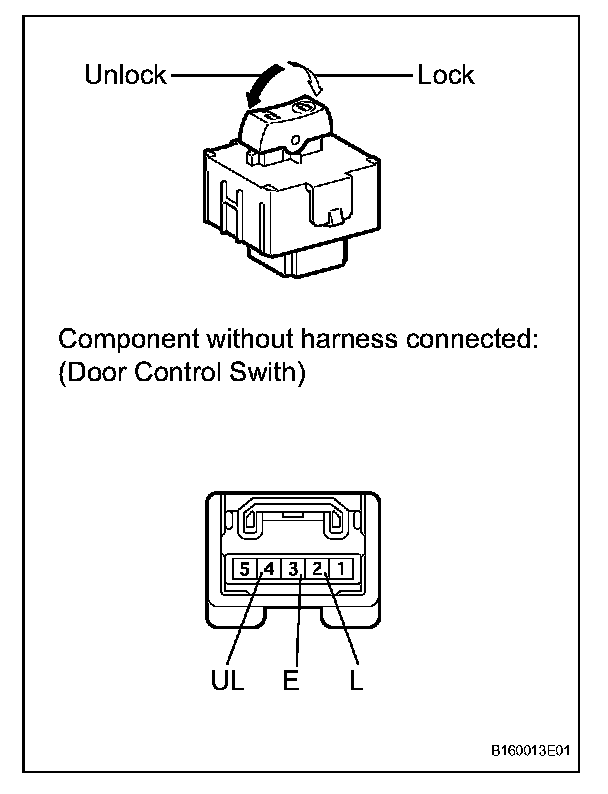

Measure the resistance according to the value(s) in the table given.
If the result is not as specified, replace the control switch.
b.

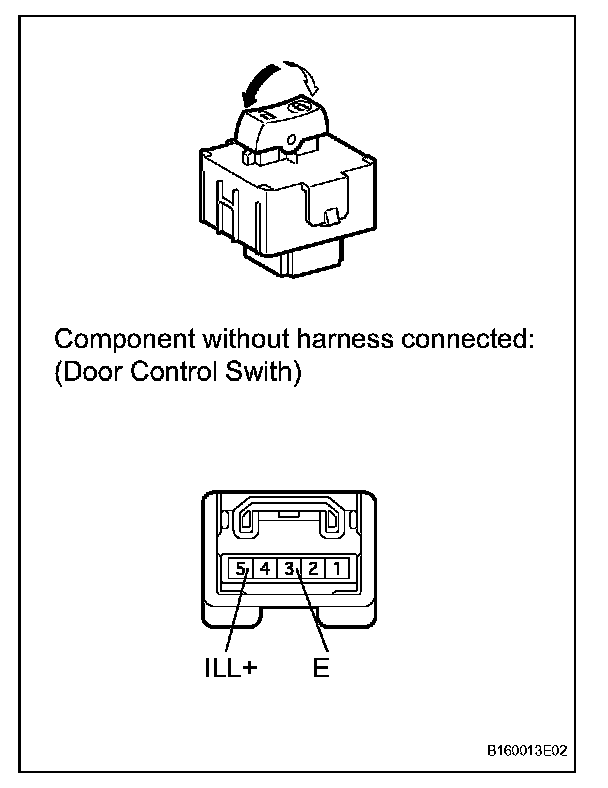

When terminal 5 (ILL+) of the connector is connected to the positive (+) battery terminal and terminal 3 (E) is connected to the negative (-) battery terminal, check that the indicator (LED) illuminates.
