Room Oscillator Does Not Recognize Key
Room Oscillator does not Recognize KeyDESCRIPTION
If the room oscillator does not recognize key, either of the following may be the cause: 1) communication between the indoor electrical key oscillator (for front) and electrical key transmitter cannot be performed; or 2) communication between the indoor electrical key oscillator (for rear) and electrical key transmitter cannot be performed.

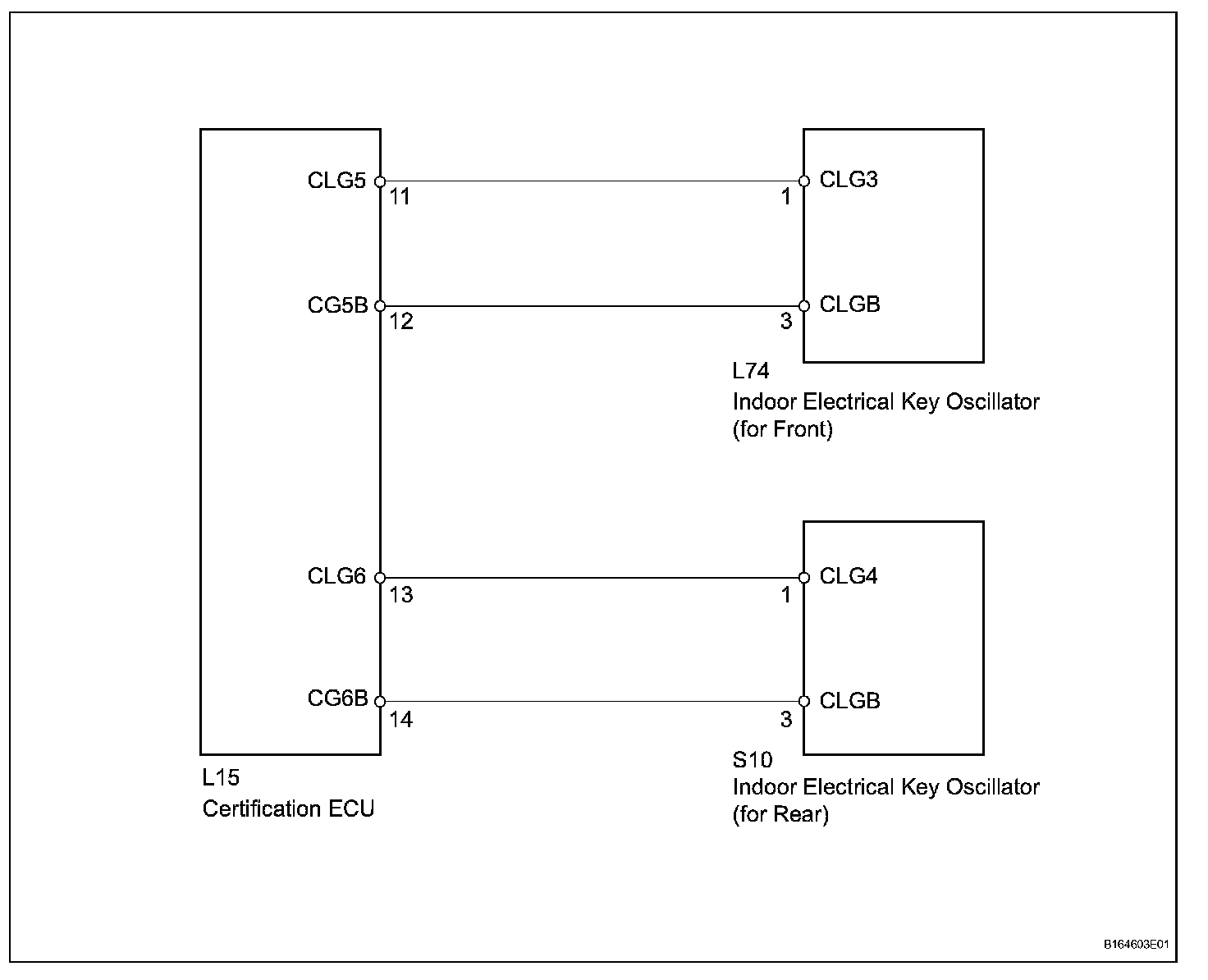

Wiring Diagram:
Step 1:

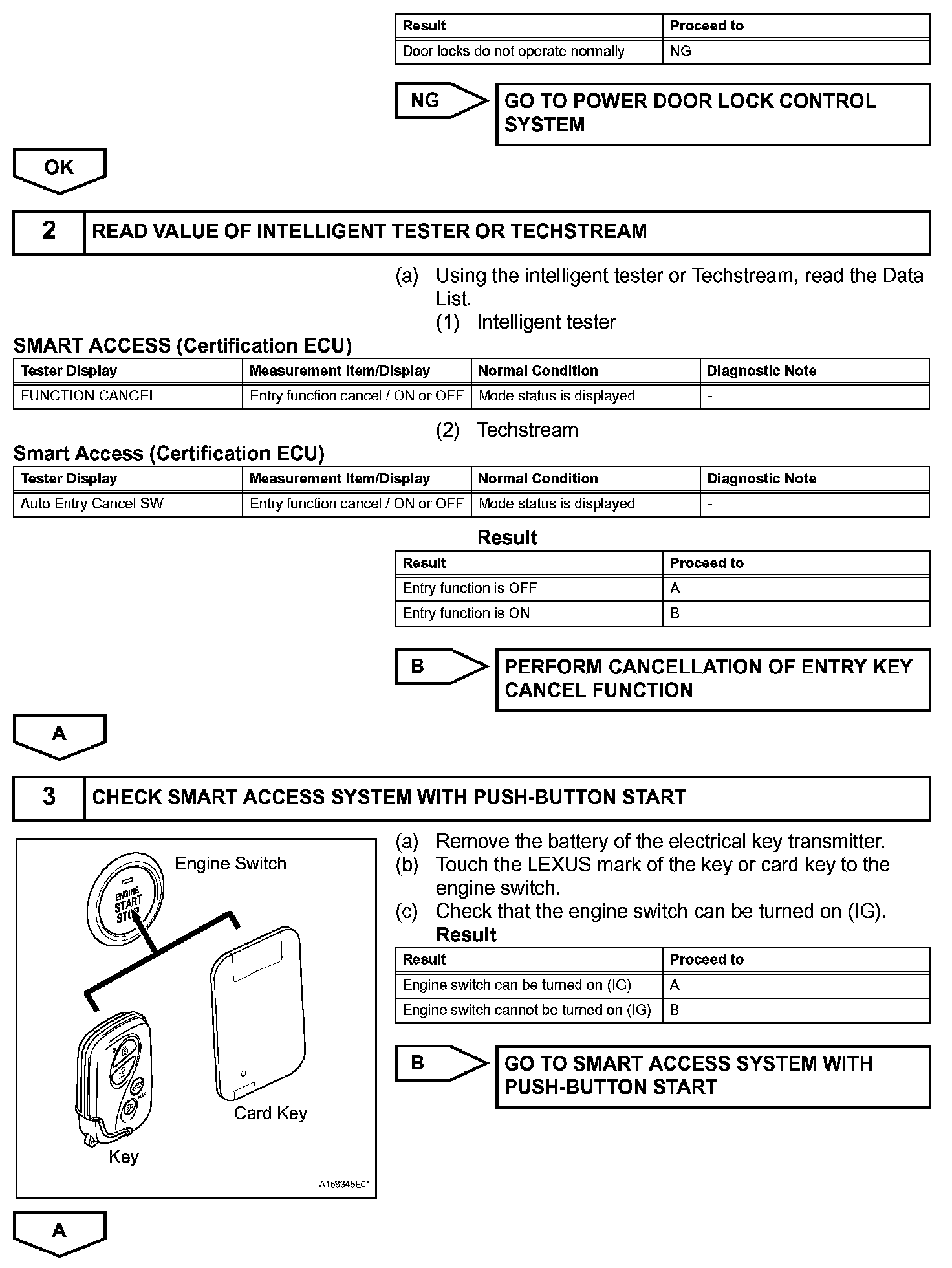

Step 1 (Continued)-3:
Step 4-5:

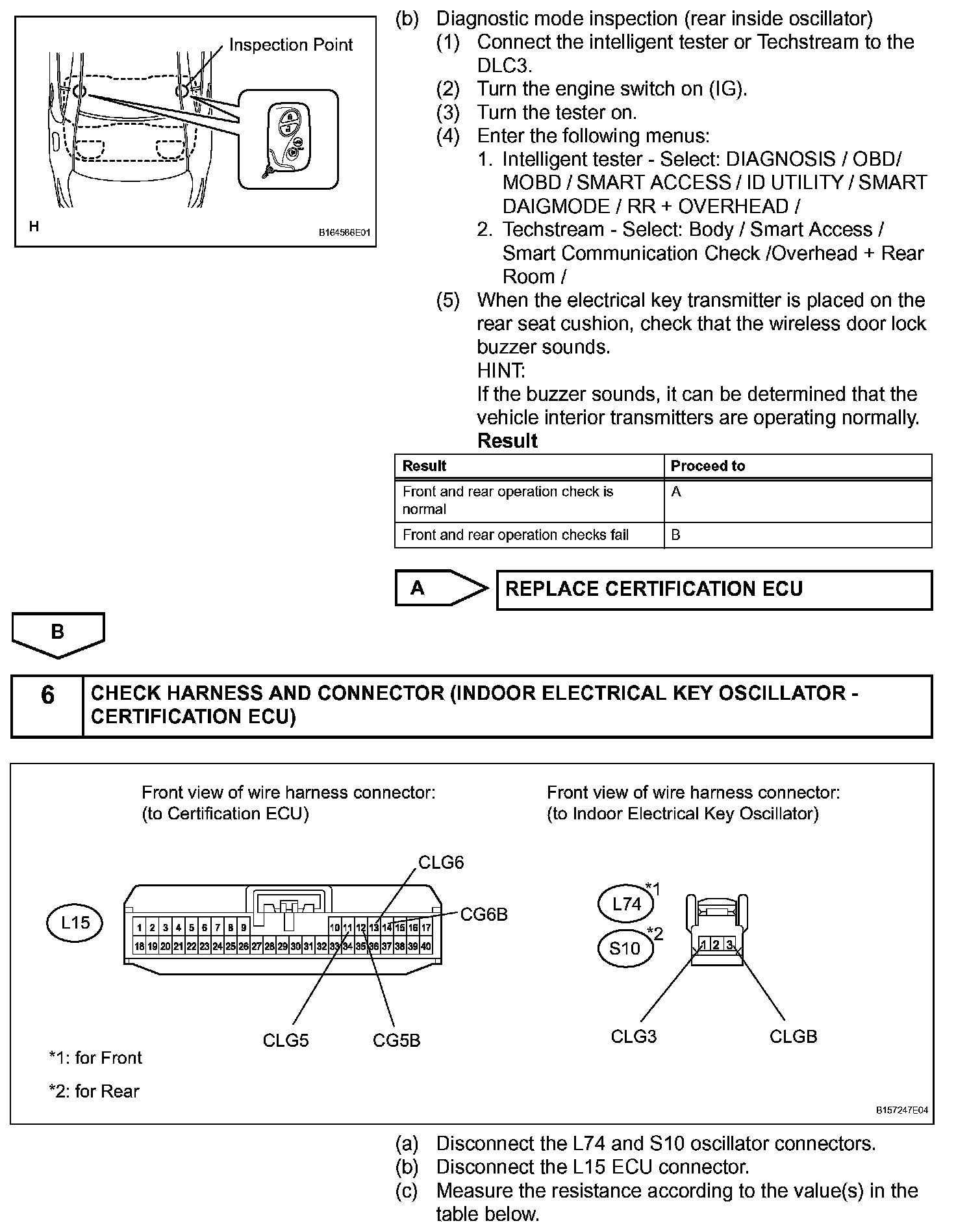

Step 5 (Continued)-6:

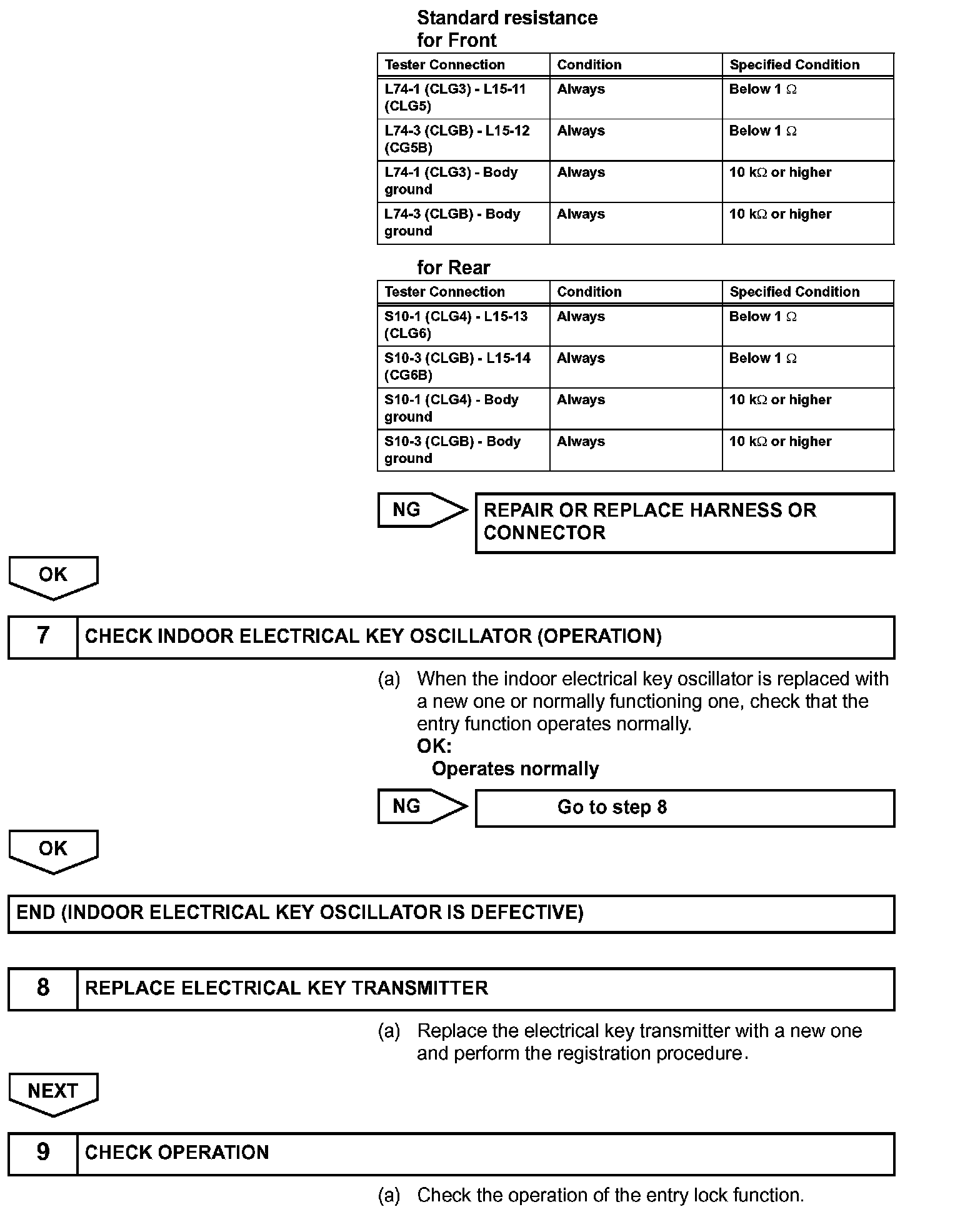

Step 6 (Continued)-9:
Step 9 (Continued):
INSPECTION PROCEDURE
