Only Driver Door LOCK / UNLOCK Functions Do Not Operate
Only Driver Door LOCK / UNLOCK Functions do not OperateDESCRIPTIONThe front door ECU LH receives lock/unlock switch signals and activates the door lock motor according to these signals.
Wiring Diagram:
Step 1:

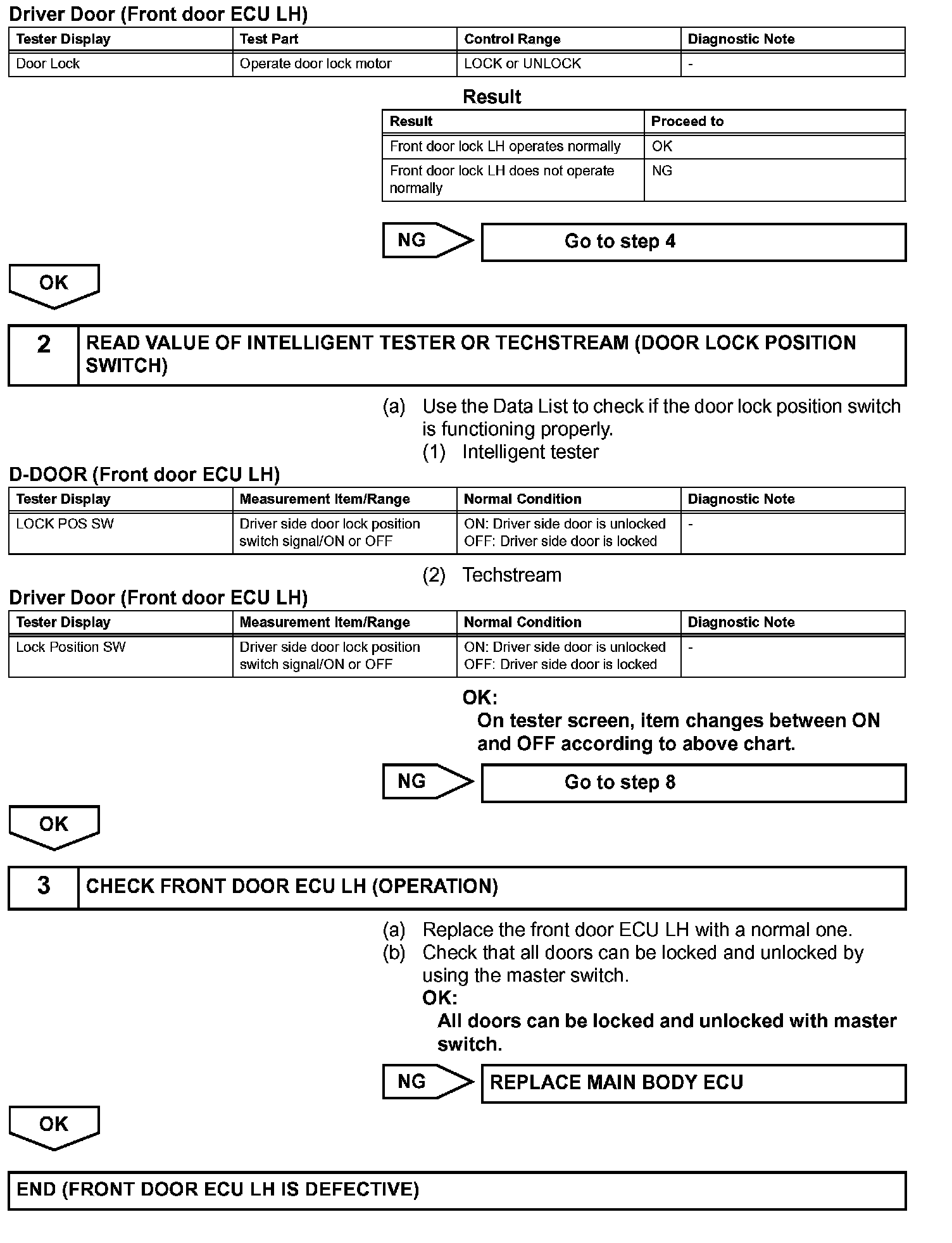

Step 1 (Continued)-3:

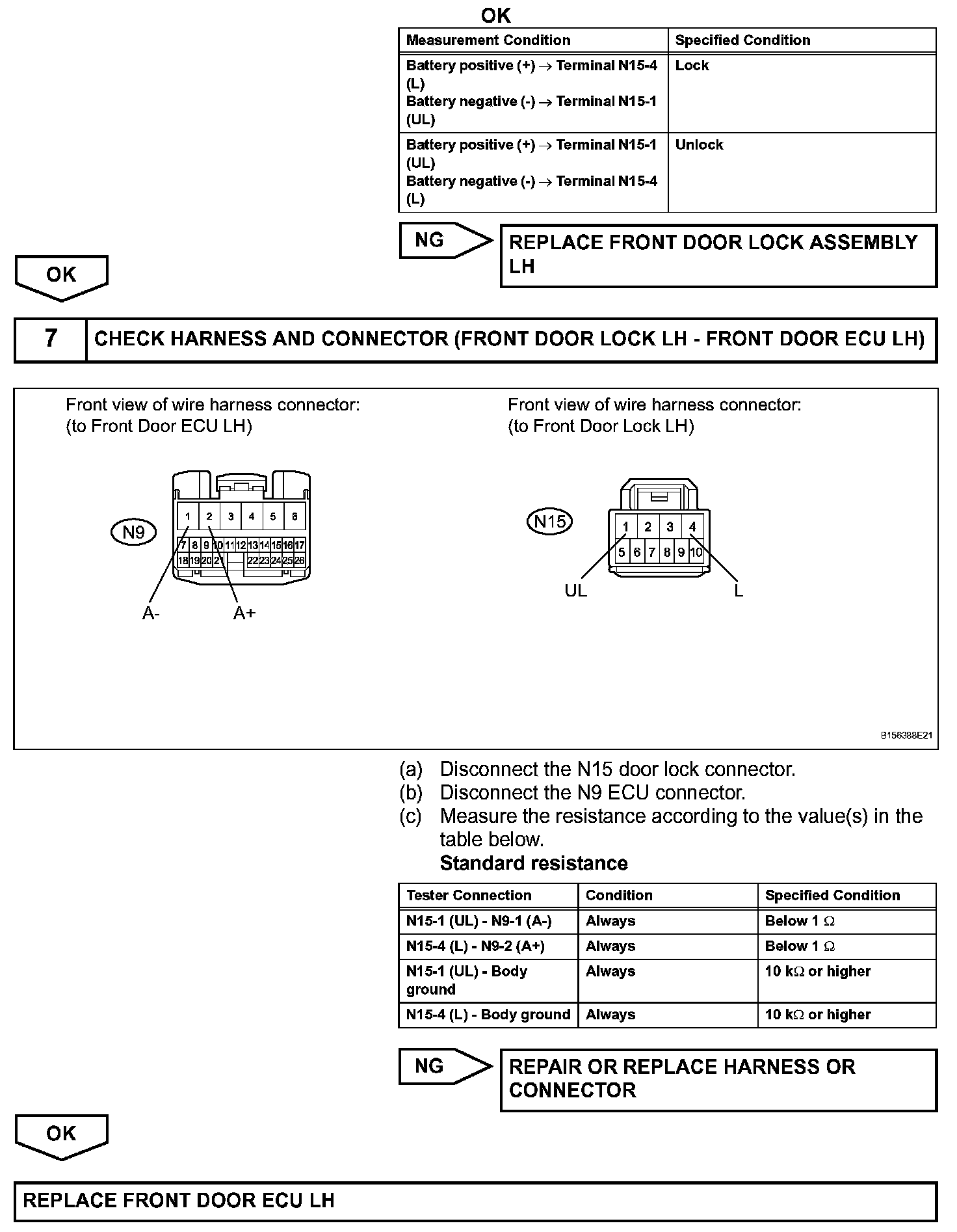

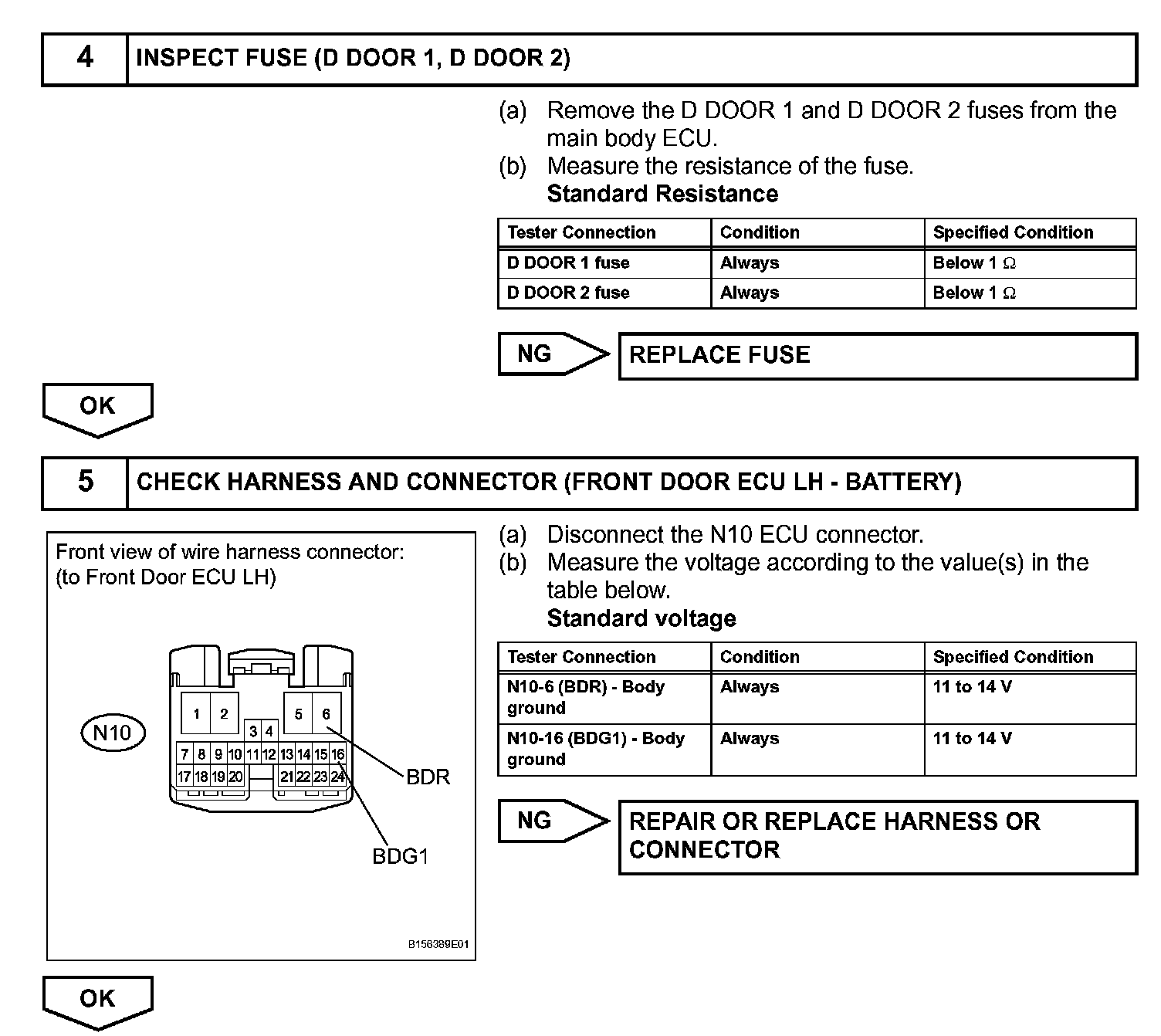

Step 4-5:

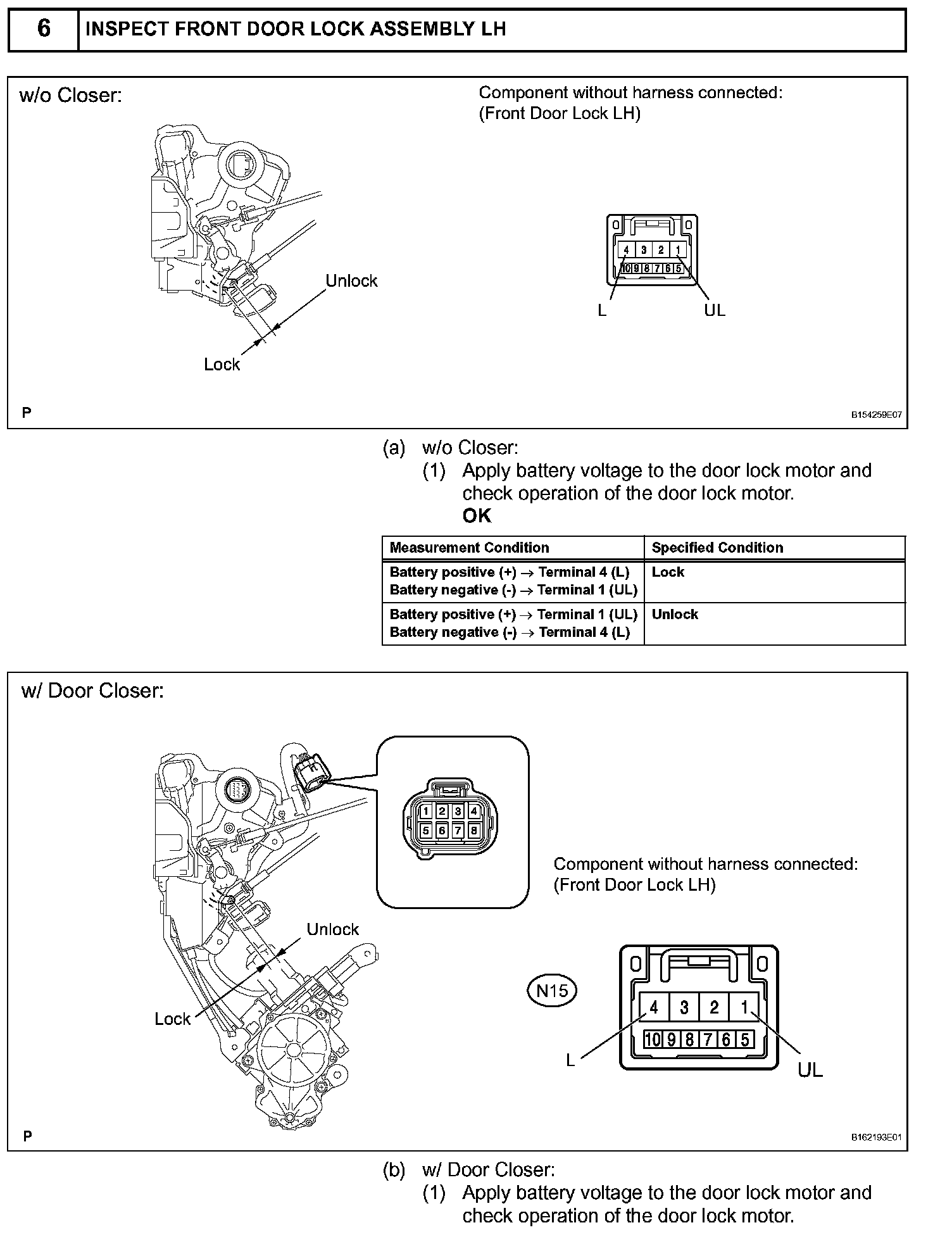

Step 6:
Step 6 (Continued)-7:

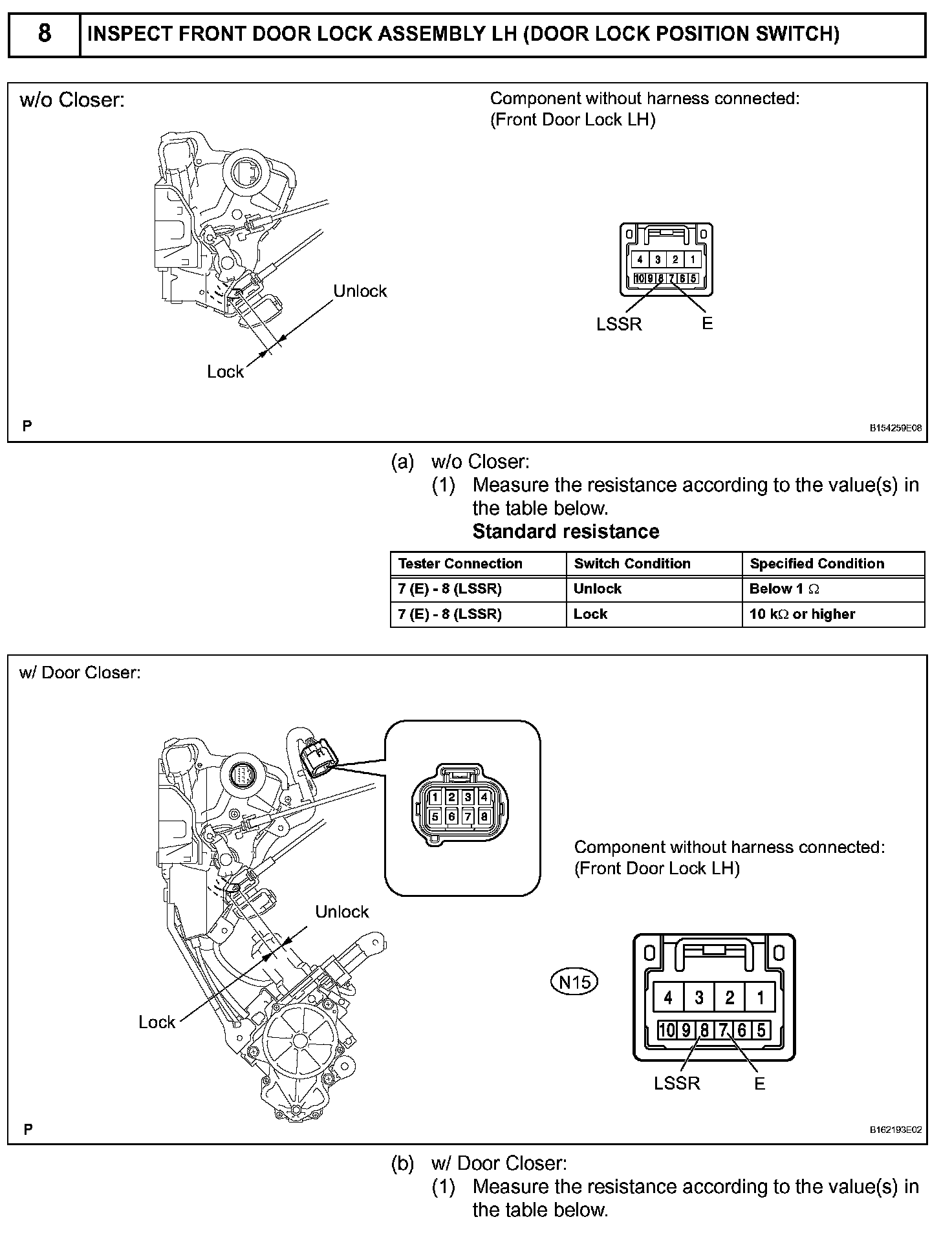

Step 8:

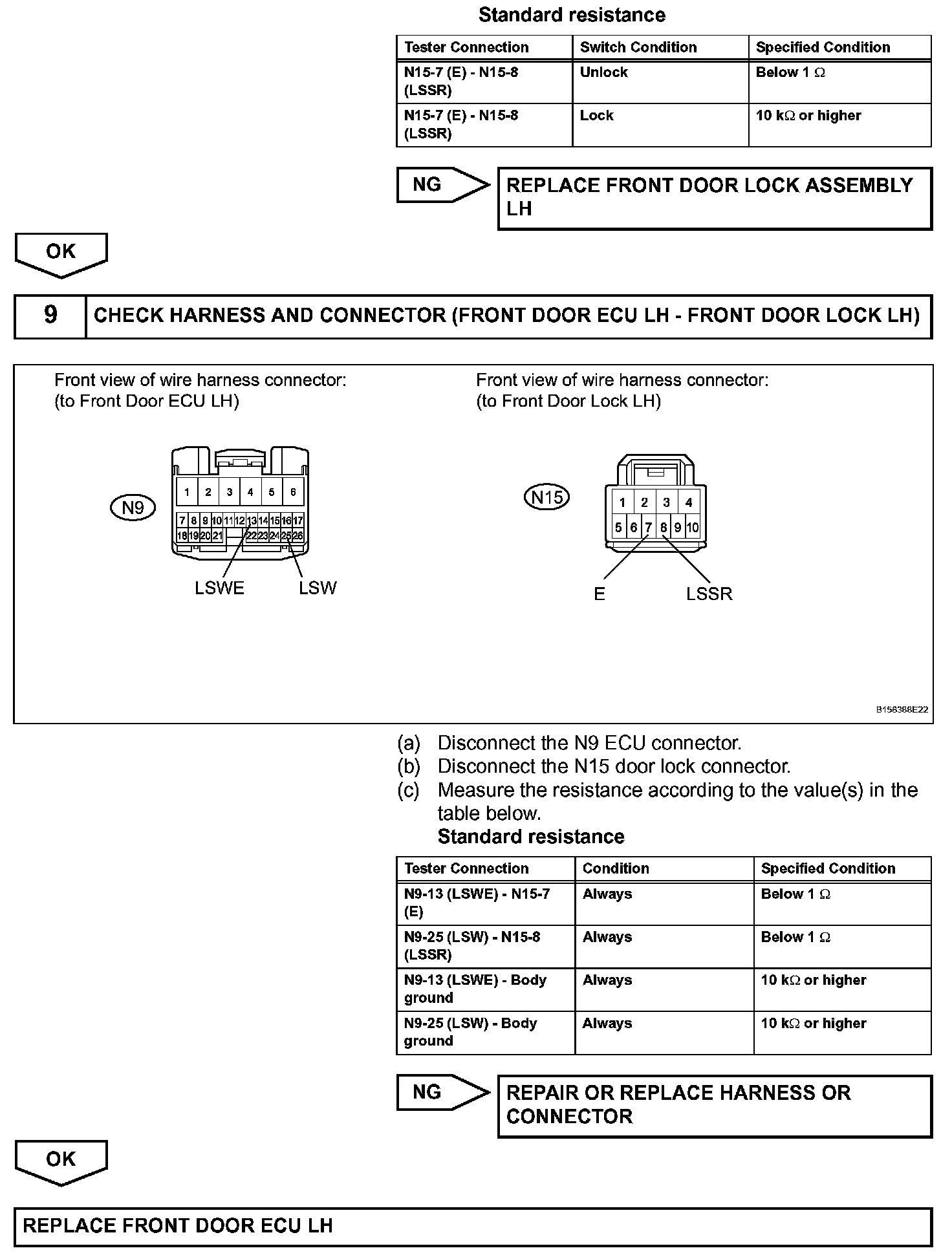

Step 8 (Continued)-9:
INSPECTION PROCEDURE
