Cruise Main Indicator Light Circuit

Cruise Main Indicator Light Circuit

DESCRIPTION
- When the ECM detects a cruise control main switch signal, it sends it to the combination meter through CAN communication. Then the CRUISE main indicator light turns on.
- The CRUISE main indicator light circuit uses CAN communication. If there is a malfunction in this circuit, check for DTCs in the CAN communication system before troubleshooting this circuit.

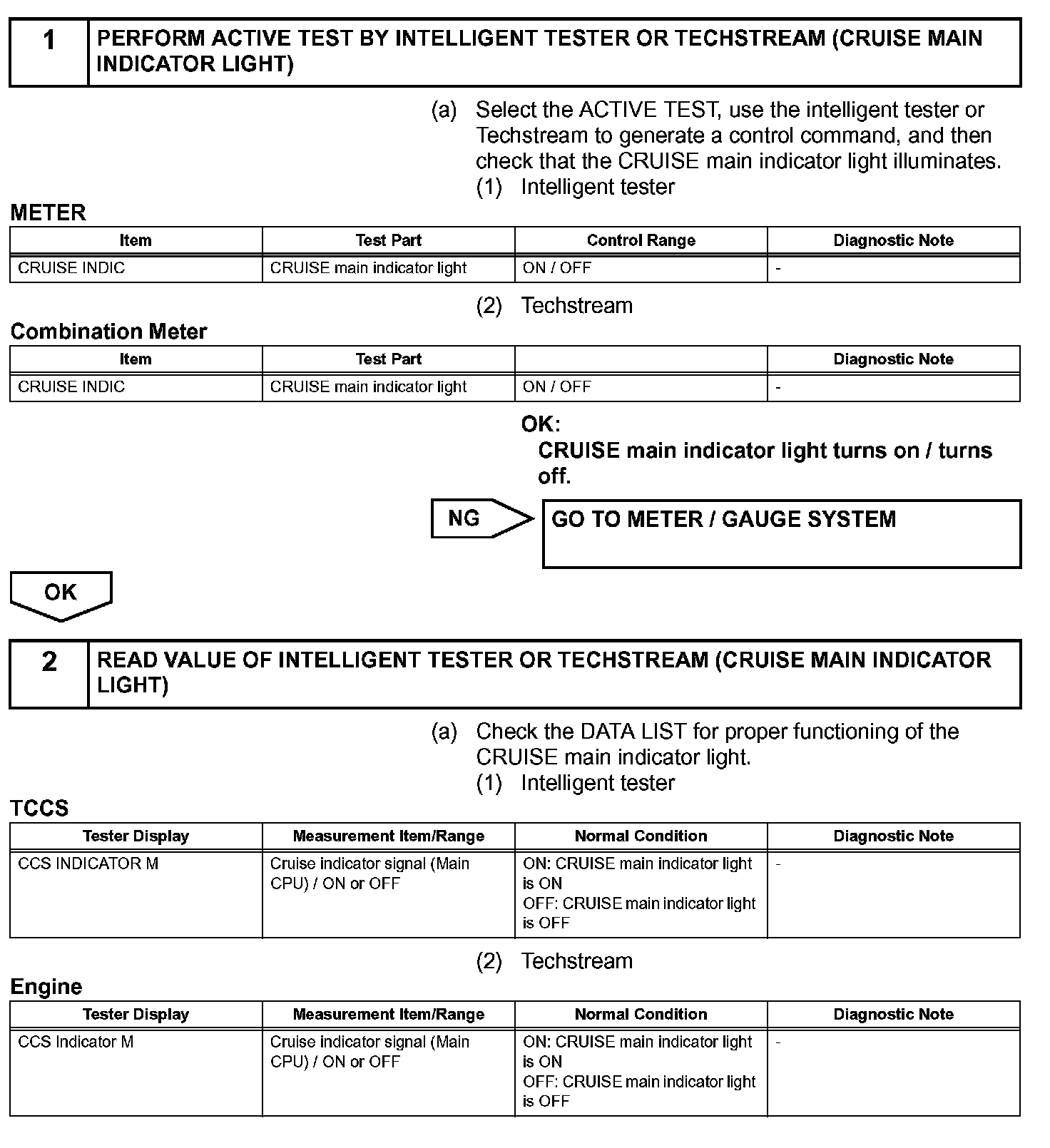

Step 1-2:

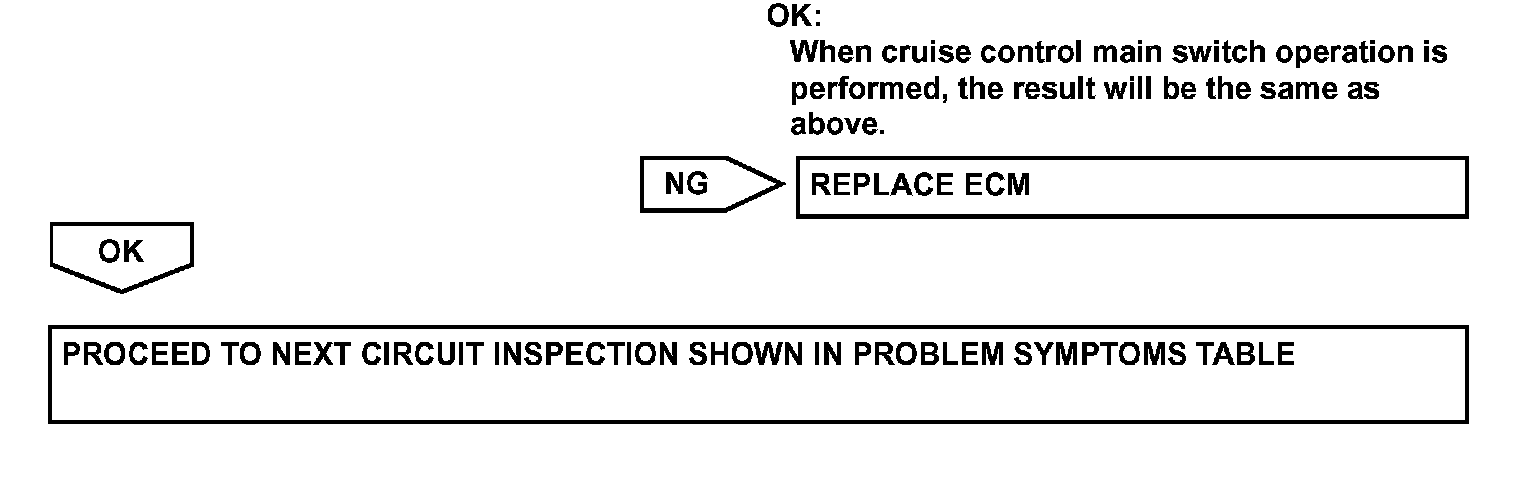

Step 2 (Continued):




INSPECTION PROCEDURE
