Headlamp Alignment Sensor: Service and Repair

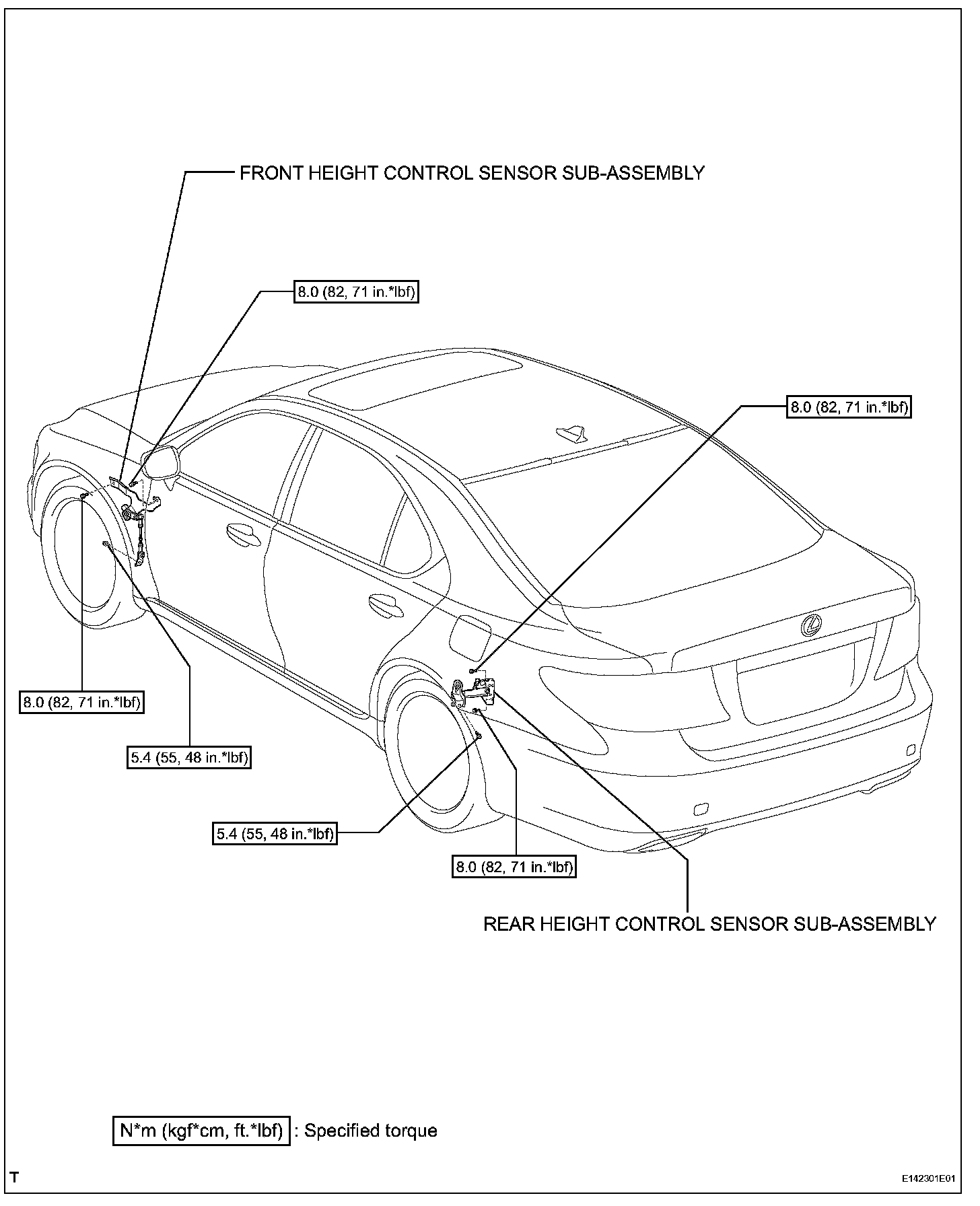

Height Control Sensor:




HEIGHT CONTROL SENSOR

REMOVAL




1. REMOVE FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY
a. Disconnect the connector.
b. Remove the 3 nuts and front height control sensor.




2. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY
a. Disconnect the connector.
b. Remove the 3 nuts and rear height control sensor.

INSTALLATION




1. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY
a. Install the rear height control sensor with the 3 nuts.

Torque: Rear suspension member side 8.0 N.m (82 kgf.cm, 71 in.lbf) Lower arm side: 5.4 N.m (55 kgf.cm, 48 in.lbf)

b. Connect the connector.




2. INSTALL FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY
a. Install the front height control sensor with the 3 nuts.

Torque: Rear suspension member side 8.0 N.m (82 kgf.cm, 71 in.lbf) Lower arm side: 5.4 N.m (55 kgf.cm, 48 in.lbf)

b. Connect the connector.

3. VEHICLE PREPARATION FOR HEADLIGHT AIMING ADJUSTMENT
4. PREPARATION FOR HEADLIGHT AIMING (Using a screen)
5. HEADLIGHT AIMING INSPECTION
6. HEADLIGHT AIMING ADJUSTMENT
