Door Lock Control Switch Circuit
Door Lock Control Switch CircuitDESCRIPTIONWhen the control switch is turned to the lock side, the LOCK terminal of the switch is grounded and when the key is turned to the unlock side, the UNLOCK terminal of the switch is grounded.
Wiring Diagram:

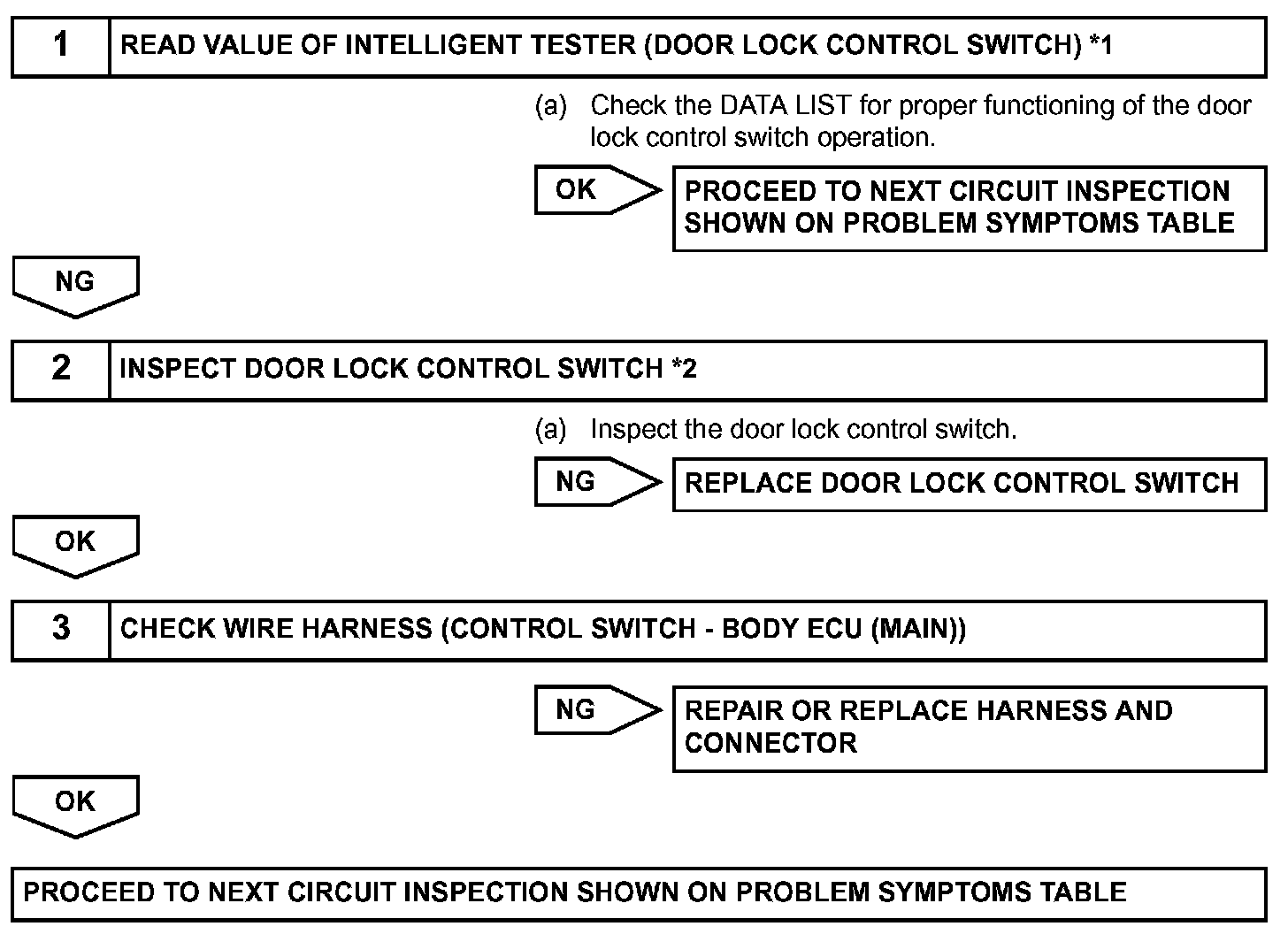

Step 1-3:
INSPECTION PROCEDUREHINT: When using the intelligent tester, start from *1. When not using the intelligent tester, start from *2.
