Power Seat Power Source Circuit

Power Seat Power Source Circuit

DESCRIPTION
This is the power source for the slide motor, reclining motor, front vertical motor and lifter motor.

WIRING DIAGRAM

Wiring Diagram:

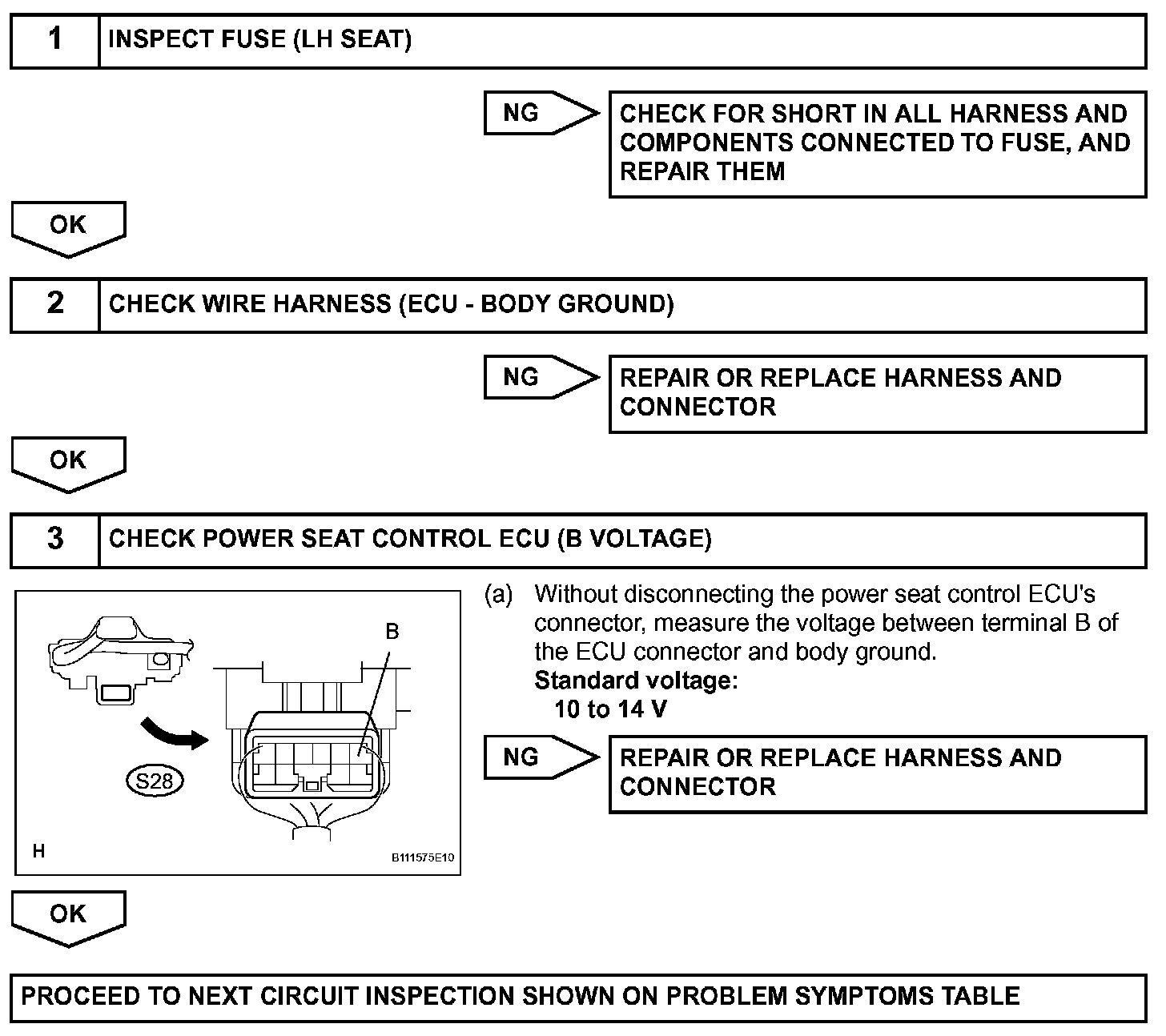

INSPECTION PROCEDURE

Step 1 - 3:
