Short in CAN Bus Lines
Short in CAN Bus LinesDESCRIPTIONThere may be a short circuit between the CAN bus line when the resistance between terminals 6 (CANH) and 14 (CANL) of the
DLC3 is below
54 Ohms.
Wiring Diagram:
Step 1-2:

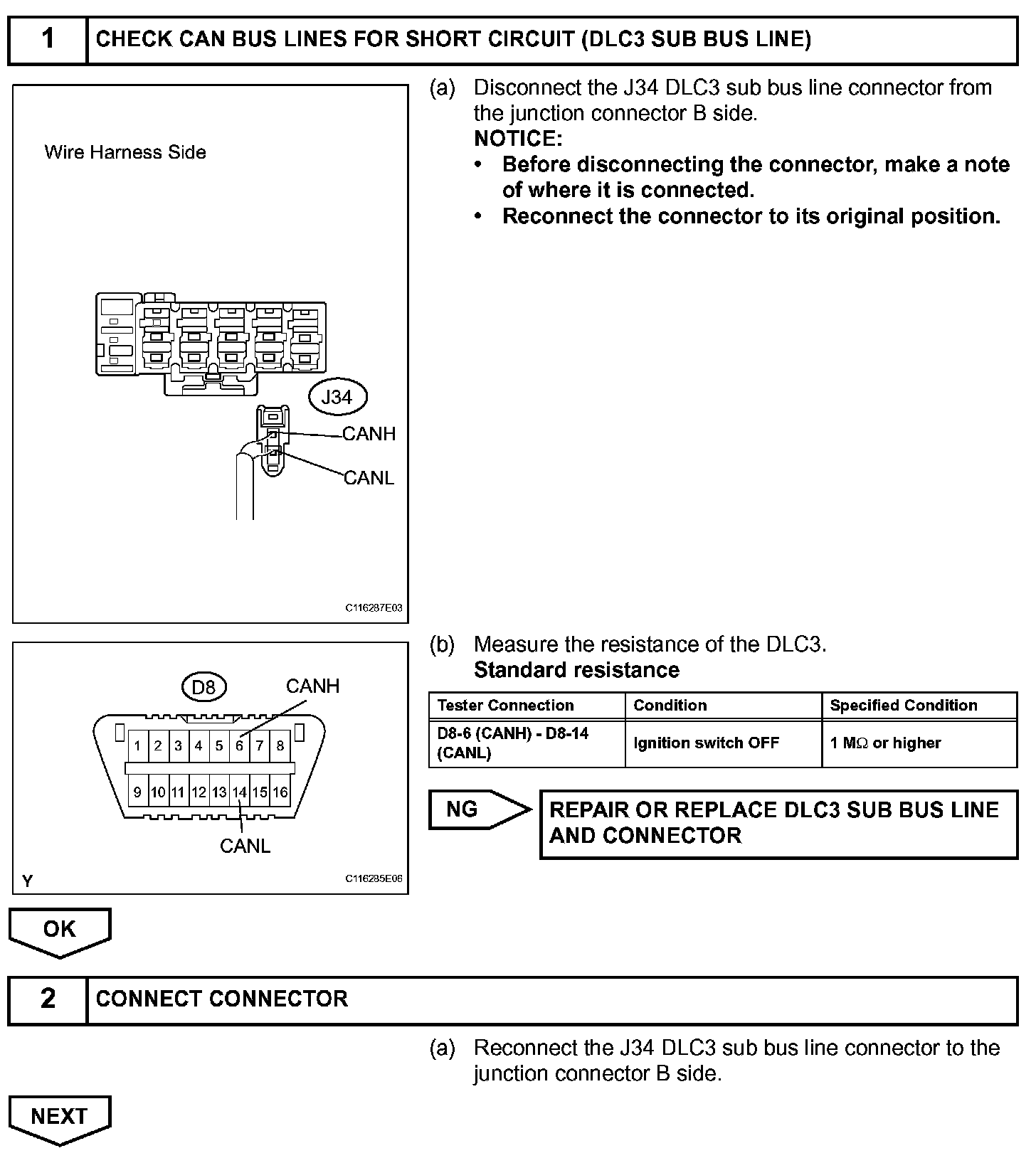

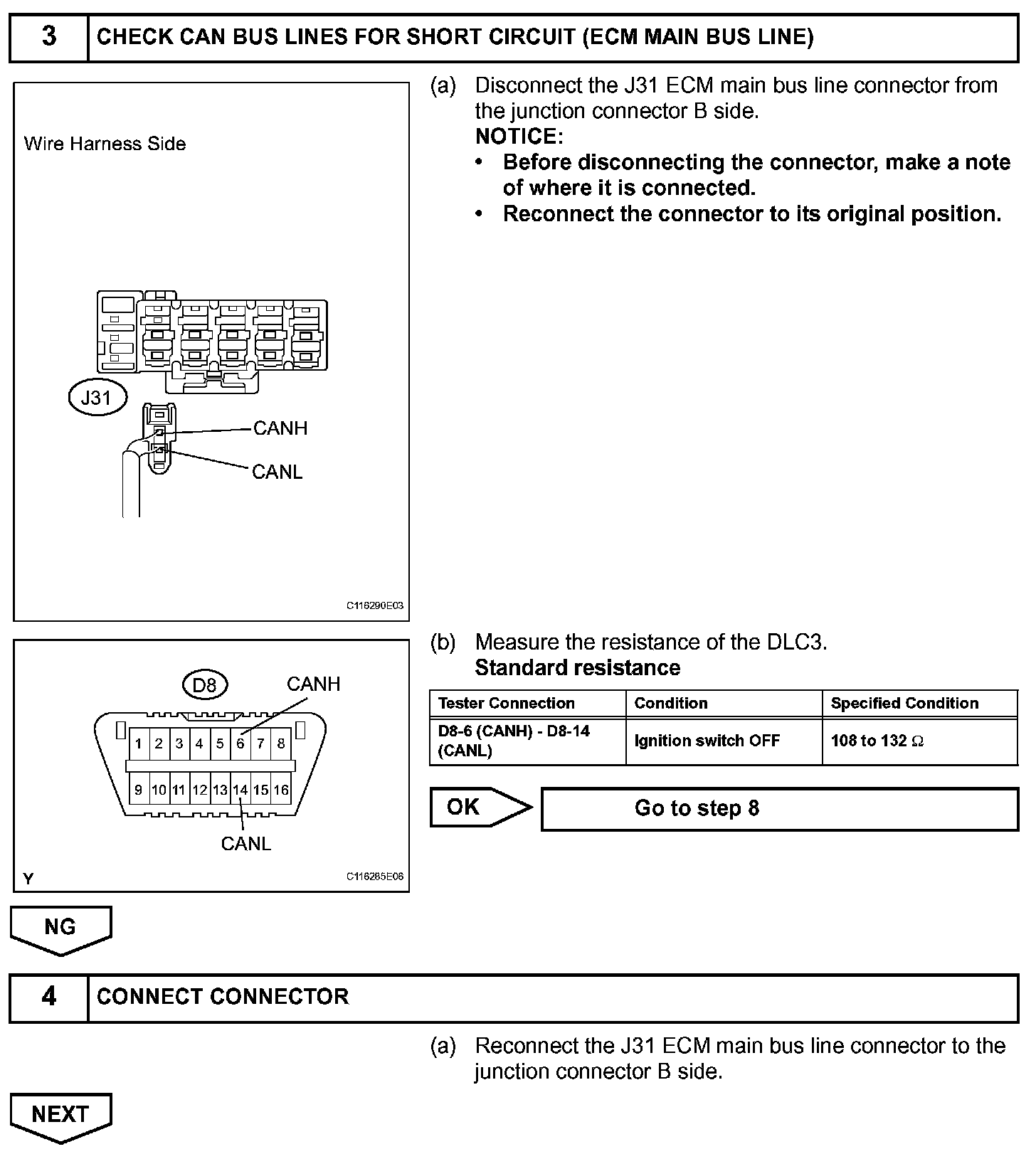

Step 3-4:

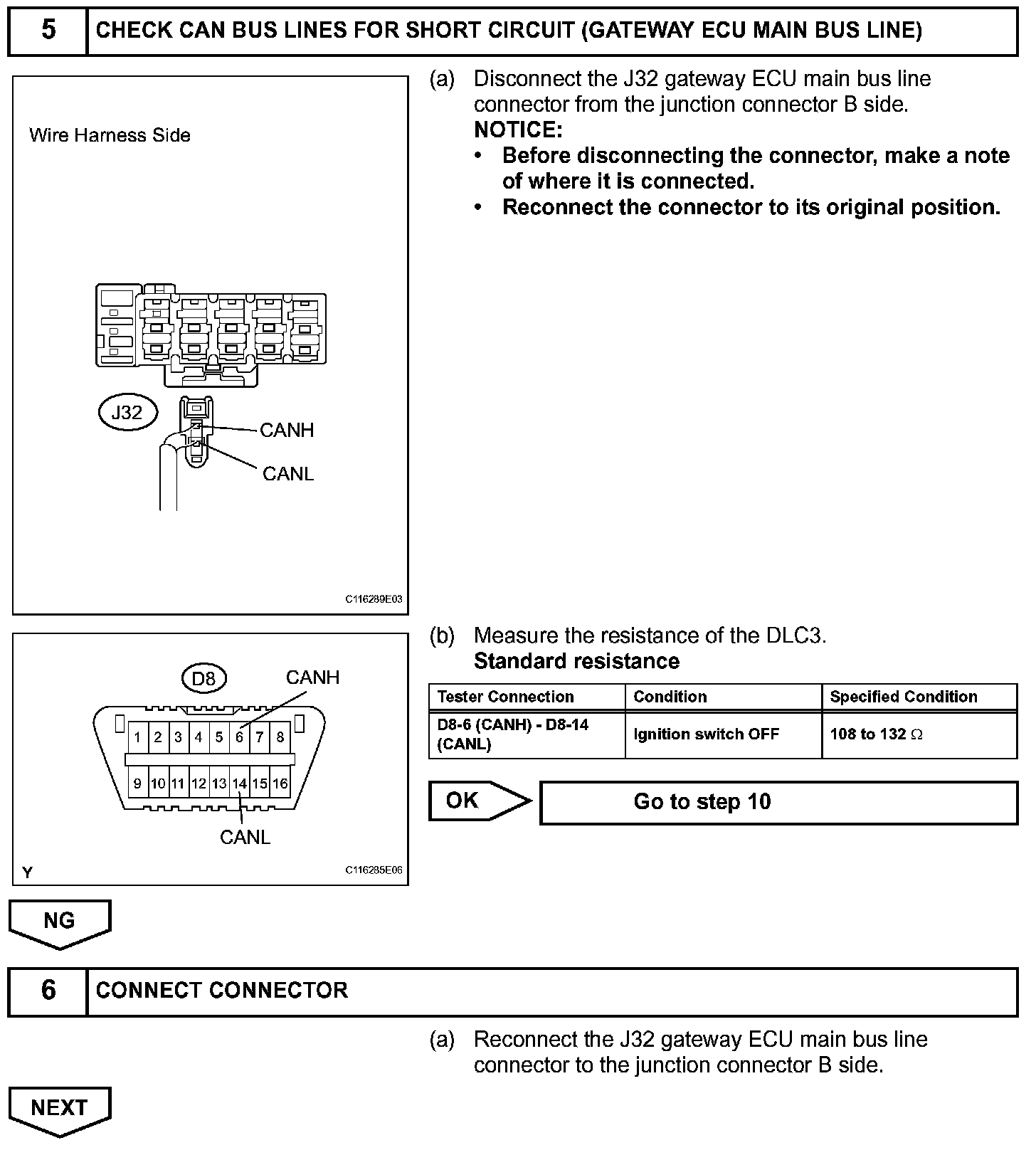

Step 5-6:

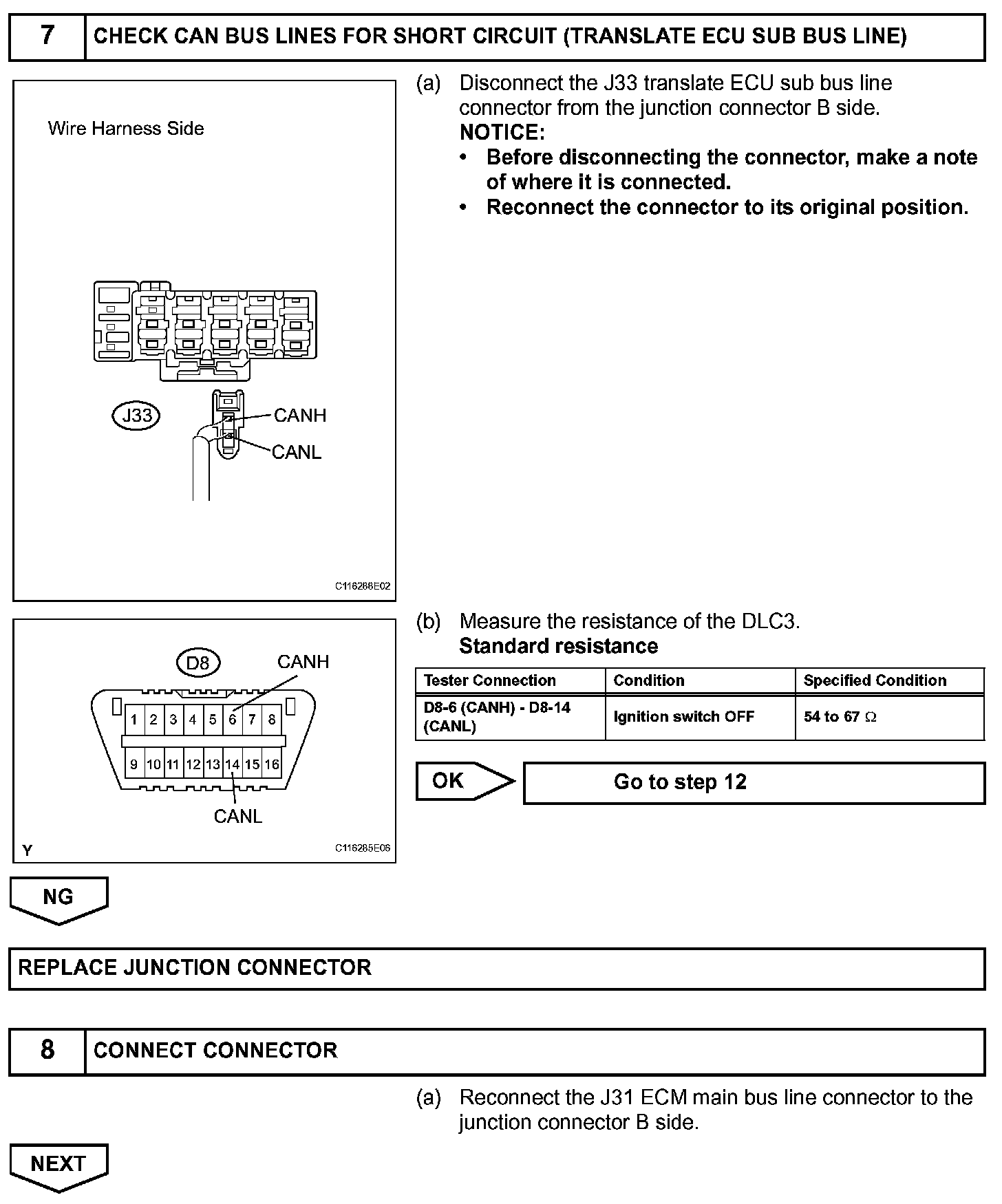

Step 7-8:

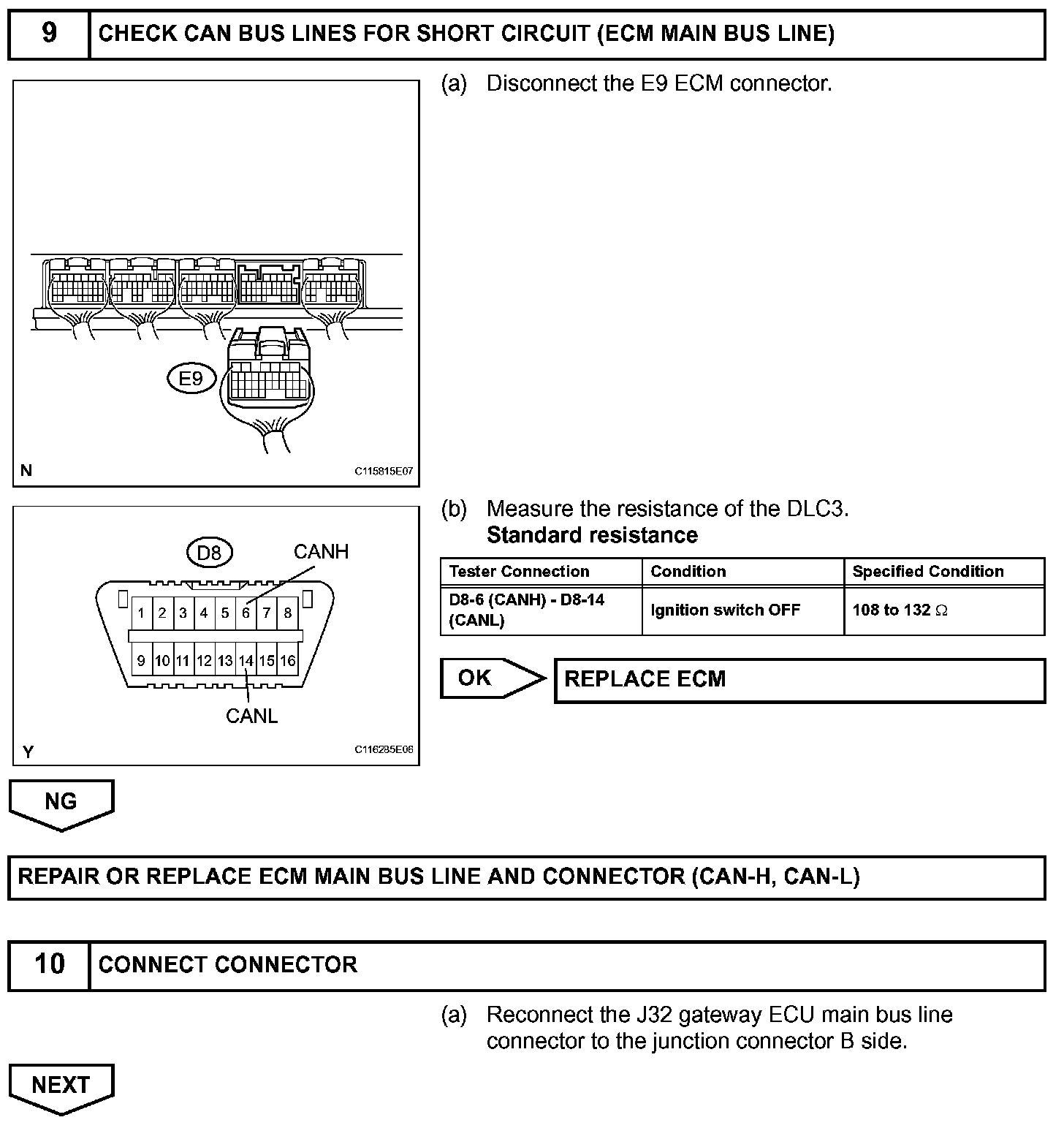

Step 9-10:

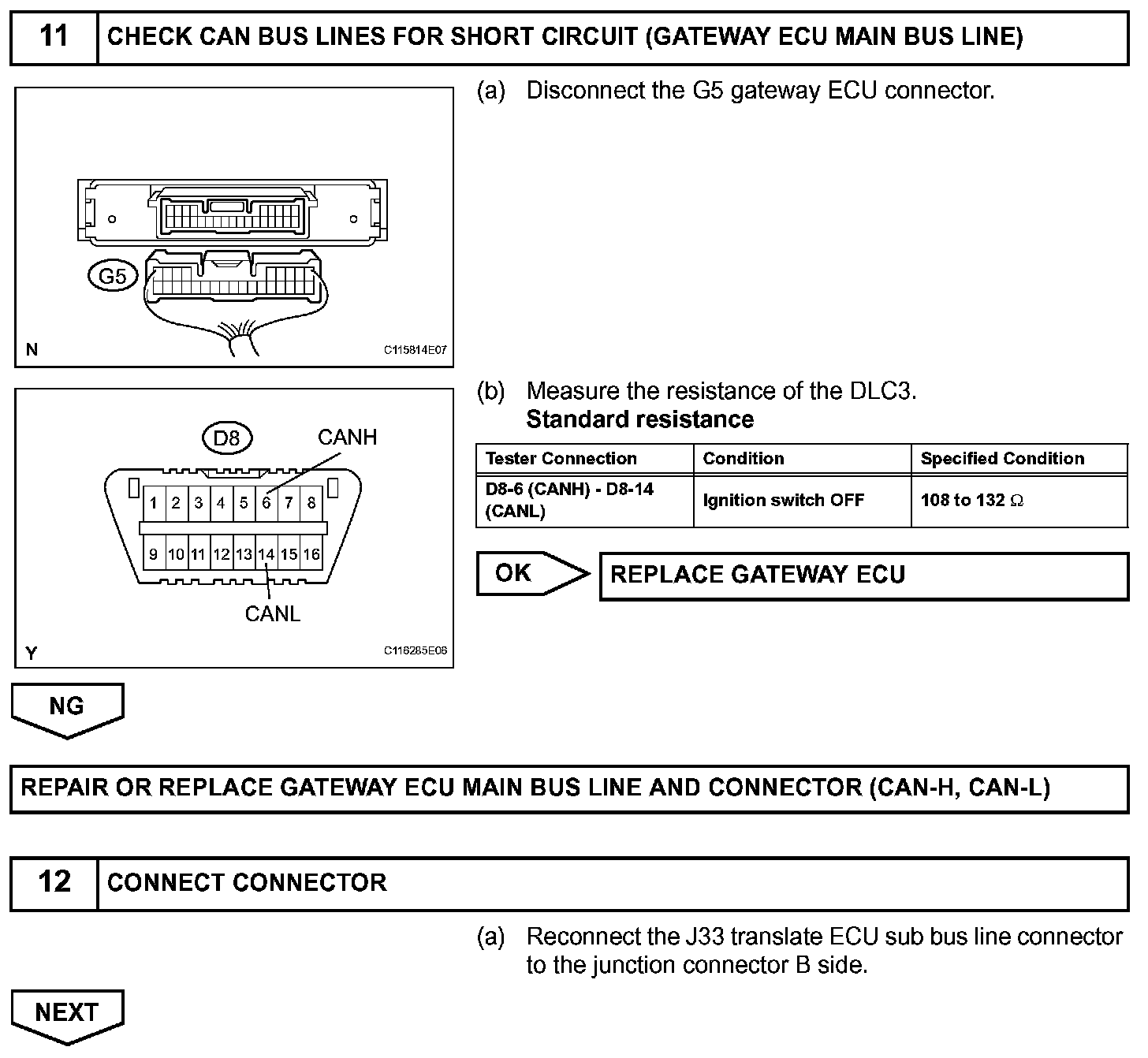

Step 11-12:

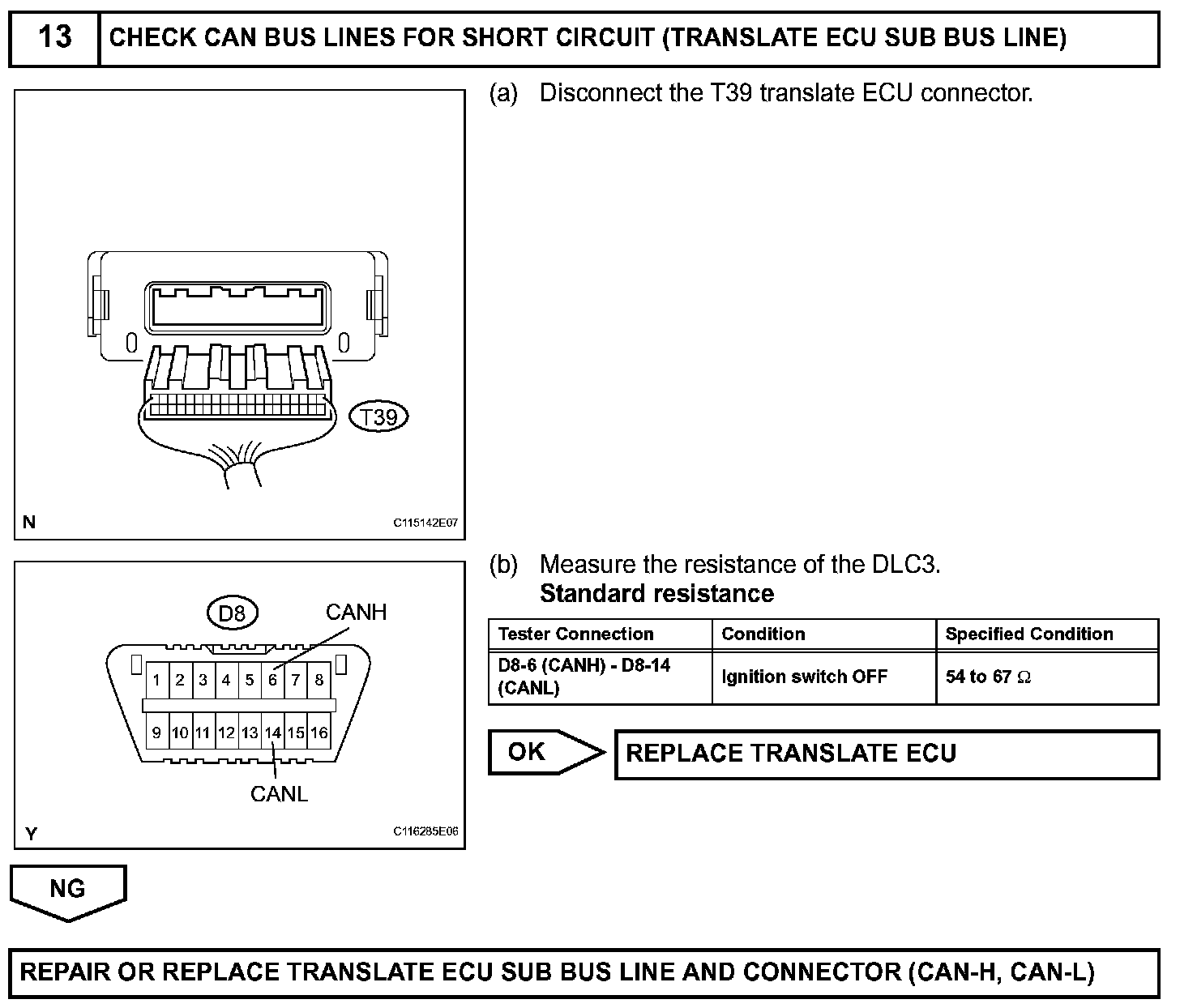

Step 13:
INSPECTION PROCEDURE
