Engine Immobilizer System

READ DATA LIST

HINT: Using the DATA LIST displayed on the intelligent tester, you can read the value of the switches, sensors, actuators, etc. without parts removal. Reading the DATA LIST as the first step in troubleshooting is one way to shorten the labor time.

a. Connect the intelligent tester (with CAN VIM) to the DLC3.
b. Turn the ignition switch to the ON position.
c. Turn the tester on.
d. Enter the following menus: DIAGNOSIS / OBD/ MOBD / IMMOBILIZER / DATA LIST.

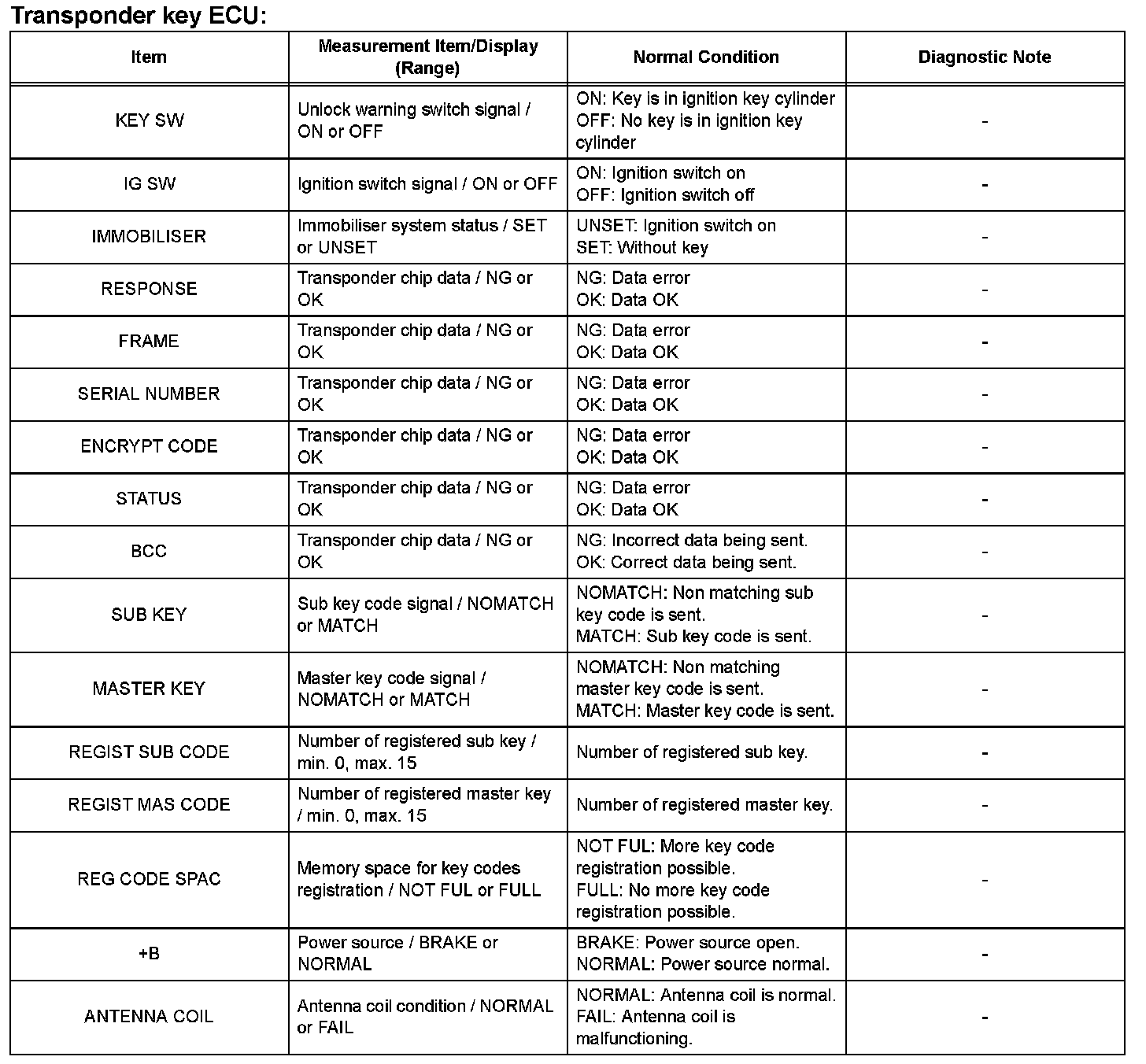

e. Check the values by referring to the table.
